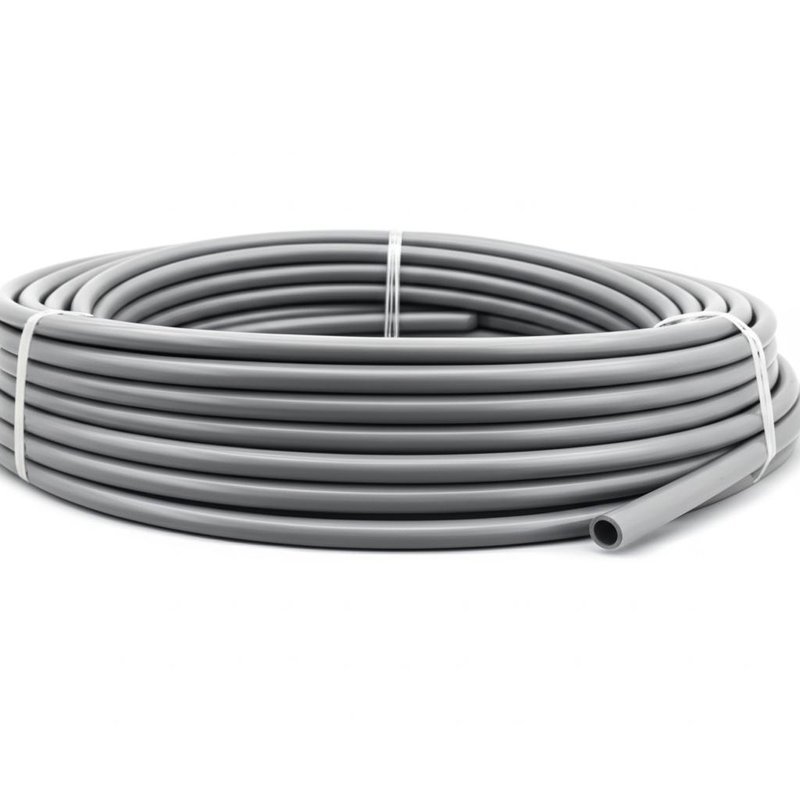

Premium Grade PTFE Hose and Tube with 20Mpa Tensile Strength, Corrosion Resistant, and Temperature Resistant -180°C to +260°C
Premium Grade PTFE Hose and Tube with 20Mpa Tensile Strength, Corrosion Resistant, and Temperature Resistant -180°C to +260°C
Premium Grade PTFE Hose and Tube with 20Mpa Tensile Strength, Corrosion Resistant, and Temperature Resistant -180°C to +260°C
Premium Grade PTFE Hose and Tube with 20Mpa Tensile Strength, Corrosion Resistant, and Temperature Resistant -180°C to +260°C
Premium Grade PTFE Hose and Tube with 20Mpa Tensile Strength, Corrosion Resistant, and Temperature Resistant -180°C to +260°C
Premium Grade PTFE Hose and Tube with 20Mpa Tensile Strength, Corrosion Resistant, and Temperature Resistant -180°C to +260°C
Premium Grade PTFE Hose and Tube with 20Mpa Tensile Strength, Corrosion Resistant, and Temperature Resistant -180°C to +260°C
Premium Grade PTFE Hose and Tube with 20Mpa Tensile Strength, Corrosion Resistant, and Temperature Resistant -180°C to +260°C
Premium Grade PTFE Hose and Tube with 20Mpa Tensile Strength, Corrosion Resistant, and Temperature Resistant -180°C to +260°C
Premium Grade PTFE Hose and Tube with 20Mpa Tensile Strength, Corrosion Resistant, and Temperature Resistant -180°C to +260°C
Specifications
Tensile strength :
20-30Mpa
Color :
white, black
Brand Name :
3A Rubber
Model Number :
3A3003
Certification :
ROHS/FCC/SGS
Place of Origin :
China
MOQ :
100kgs
Price :
negotiation
Payment Terms :
T/T,L/C,Paypal,Western Union
Supply Ability :
100000kgs per month
Delivery Time :
10 working days after received your payment
Packaging Details :
Packed in cartons
Elongation :
200-300%
Temperature resist :
-180°C - +260°C
Density :
2.1-2.3g/cm3
Material :
100% virgin PTFE material
Hardness :
50-60shore D
Description
Premium Grade Construction Material PTFE Hose 20Mpa, PTFE PTFE Tube
Premium grade PTFE hose, PTFE tube, PTFE hose, PTFE tube, plastic hose, plastic tube

PTFE hose and tube are manufactured through moulding or extrusion processes using high-quality polytetrafluoroethylene (PTFE) material. As the best polymer material for chemical resistance among all known plastics, PTFE offers exceptional characteristics including corrosion resistance, weathering resistance, dielectric properties, and the lowest coefficient of friction among all known solid materials.

Operating within a wide temperature range from -180°C to +260°C, PTFE features a wax-like surface to which substances hardly adhere. The manufacturing process varies by diameter:

  • Ø2-9mm: Paste extruded
  • Ø10-50mm: Ram extruded

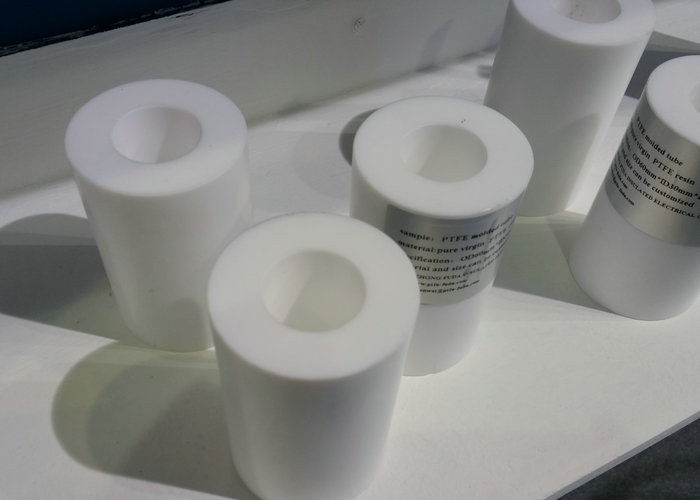

  • Ø50-300mm: Moulded

PTFE maintains the best electrical properties of all plastics, making it ideal for electrical insulation across various frequencies, seal liners for corrosive media, anti-sticking applications, and lubrication materials.

Specifications
Material 100% virgin PTFE
Filling Options Graphite, carbon, bronze or fiberglass
Quality Grades Premium grade, commercial grade
Color Options White, black
Surface Smooth
Tensile Strength 20Mpa
Hardness 55+/-5 shore D
Elongation at Break 200%
Density 2.1-2.3g/cm³
Break Down Voltage 10KV/mm
Temperature Resistance -180°C to +260°C

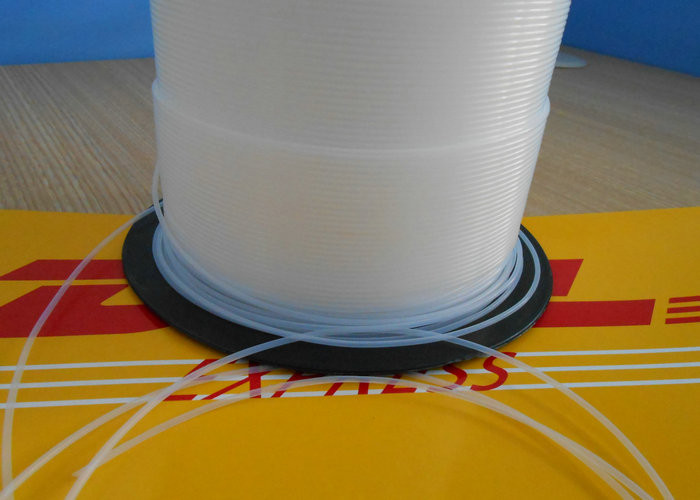

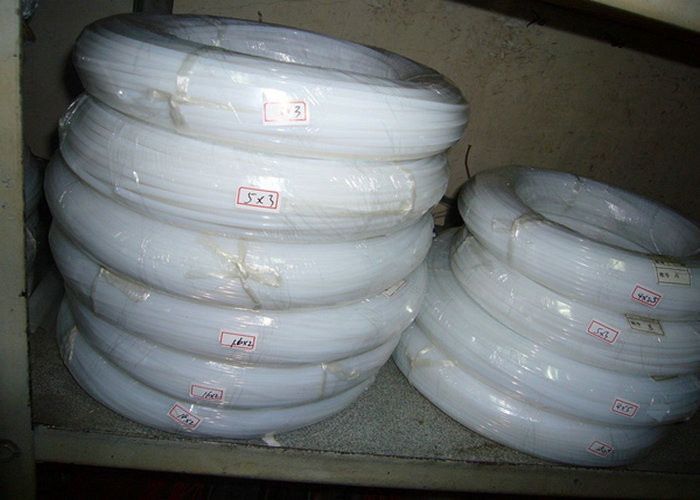

Soft PTFE Tube Sizes Ø2-25mm x Ø4-30mm x 10-50m length
Extruded PTFE Tube Sizes Ø20-400mm x Ø24-440mm x 4000mm length
Moulded PTFE Tube Sizes Ø20-200mm x Ø40-400mm x 10-300mm length
Black Color Options Available with 3% graphite or 10% carbon filling
Important: When submitting an enquiry, please confirm the color, size and quantity requirements.
Premium Grade PTFE Hose and Tube with 20Mpa Tensile Strength, Corrosion Resistant, and Temperature Resistant -180°C to +260°C Premium Grade PTFE Hose and Tube with 20Mpa Tensile Strength, Corrosion Resistant, and Temperature Resistant -180°C to +260°C Premium Grade PTFE Hose and Tube with 20Mpa Tensile Strength, Corrosion Resistant, and Temperature Resistant -180°C to +260°C Premium Grade PTFE Hose and Tube with 20Mpa Tensile Strength, Corrosion Resistant, and Temperature Resistant -180°C to +260°C Premium Grade PTFE Hose and Tube with 20Mpa Tensile Strength, Corrosion Resistant, and Temperature Resistant -180°C to +260°C Premium Grade PTFE Hose and Tube with 20Mpa Tensile Strength, Corrosion Resistant, and Temperature Resistant -180°C to +260°C
