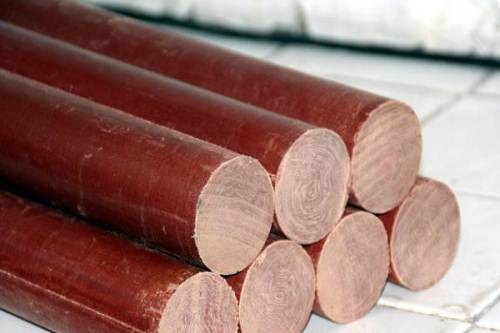

Bakelite Rod with 1.25-1.40g/cm3 Density, 10KV Rated Voltage, and 138Mpa Compression Strength
Bakelite Rod with 1.25-1.40g/cm3 Density, 10KV Rated Voltage, and 138Mpa Compression Strength
Bakelite Rod with 1.25-1.40g/cm3 Density, 10KV Rated Voltage, and 138Mpa Compression Strength
Bakelite Rod with 1.25-1.40g/cm3 Density, 10KV Rated Voltage, and 138Mpa Compression Strength
Bakelite Rod with 1.25-1.40g/cm3 Density, 10KV Rated Voltage, and 138Mpa Compression Strength
Bakelite Rod with 1.25-1.40g/cm3 Density, 10KV Rated Voltage, and 138Mpa Compression Strength
Bakelite Rod with 1.25-1.40g/cm3 Density, 10KV Rated Voltage, and 138Mpa Compression Strength
Bakelite Rod with 1.25-1.40g/cm3 Density, 10KV Rated Voltage, and 138Mpa Compression Strength
Bakelite Rod with 1.25-1.40g/cm3 Density, 10KV Rated Voltage, and 138Mpa Compression Strength
Bakelite Rod with 1.25-1.40g/cm3 Density, 10KV Rated Voltage, and 138Mpa Compression Strength
Bakelite Rod with 1.25-1.40g/cm3 Density, 10KV Rated Voltage, and 138Mpa Compression Strength
Bakelite Rod with 1.25-1.40g/cm3 Density, 10KV Rated Voltage, and 138Mpa Compression Strength
Specifications
Surface :
Smooth
Compression Strength :
138Mpa
Length :
1-3m
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Rated Voltage :
10KV
Density :
1.25-1.40g/cm3
OD :
10-200mm
Material :
phenolic+cotton
Brand Name :
3A Rubber
Model Number :
3A6013
Certification :
ISO9001
Place of Origin :
China
MOQ :
50kgs
Price :
USD2.80/kg
Supply Ability :
1000000kgs/month
Delivery Time :
2-3weeks
Packaging Details :
packing in crates
Color :
brown, orange, black
Tensile Strength :
78Mpa
Description
Bakelite Insulation Cotton Rod / Brown Phenolic Rod 1.25-1.40g/Cm3 Density
What is Bakelite?
Bakelite Composition
  • Bakelite (sometimes spelled Baekelite) is a combination of phenol, formaldehyde, and wood flour. The mixture is put under pressure, and after curing, a hard plastic material forms.
  • Bakelite 3021: Also called paper-based phenolic laminated sheet, consists of impregnated paper dipped in resin by baking and hot pressing. 3021 is the most commonly seen laminate, with the widest applications and largest usage.
  • Bakelite 3025: Also called phenolic cotton cloth laminated sheet, consists of cotton cloth dipped in phenolic resin by baking and hot pressing. 3025 is manufactured by modified phenolic resin as binder and pure cotton fabric as reinforcement. They have exceptionally good heat resistance and will not creep under high temperature conditions.
Bakelite Sheet/Rod Features
  • Excellent physical, mechanical and dielectric properties
  • Withstand all kinds of machining
  • Surface smooth, no bubbles and impurities
  • Edges cutting tidiness, surface without delamination and crack
Bakelite Sheet/Rod Applications
  • In insulating structural parts
  • Electric equipment
  • Aeronautical industries
Product Specifications
Bakelite Sheet Sizes
Item 3021 3025
Color Brown, Orange Black, Red, Coffee
Thickness 3-100mm
Width * Length 1220*2440mm, 2000*1000mm, or customized
Bakelite Rod Sizes
Item 3025 Bakelite Rod
Color Black, Red, Coffee
Diameter 20-150mm
Length 1000mm, 2000mm, or customized
Technical Parameters of Bakelite Rod
Item Unit Value
Density g/cm³ 1.45
Heat resistance ℃ 140
Water absorption % < 1.5
Flammability class UL94 HB
Bending strength MPa ≥ 120
Compression strength MPa ≥ 250
Tensile strength MPa ≥ 100
Insulation resistance (After flooding) Ω 1.0*10⁷
Packaging & Shipping
Packaging Options
  • Pallet with carton
  • Plastic pallet with carton
  • Wooden pallet with wooden case
  • According to customer requirements
Delivery Times
  • Stock size: 3-5 working days
  • Custom size: 8-15 working days
Bakelite Rod with 1.25-1.40g/cm3 Density, 10KV Rated Voltage, and 138Mpa Compression Strength Bakelite Rod with 1.25-1.40g/cm3 Density, 10KV Rated Voltage, and 138Mpa Compression Strength
