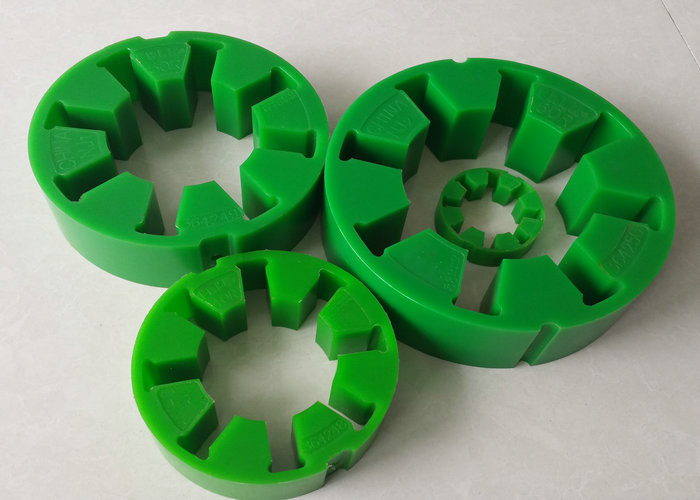

High Tensile Strength Green Polyurethane Coupling 97 Shore A Falk R10-R80
High Tensile Strength Green Polyurethane Coupling 97 Shore A Falk R10-R80
High Tensile Strength Green Polyurethane Coupling 97 Shore A Falk R10-R80
High Tensile Strength Green Polyurethane Coupling 97 Shore A Falk R10-R80
High Tensile Strength Green Polyurethane Coupling 97 Shore A Falk R10-R80
High Tensile Strength Green Polyurethane Coupling 97 Shore A Falk R10-R80
High Tensile Strength Green Polyurethane Coupling 97 Shore A Falk R10-R80
High Tensile Strength Green Polyurethane Coupling 97 Shore A Falk R10-R80
Specifications
Color :
green
Working Temperature :
-20oC - +100oC
hardness :
97shore A
Standard :
Falk USA
Material :
TPU
Brand Name :
3A Rubber
Model Number :
3A2006
Certification :
ROHS/FCC/SGS
Place of Origin :
China
MOQ :
10pieces
Price :
negotiation
Payment Terms :
T/T,L/C,Paypal,Western Union
Supply Ability :
10000kgs per month
Delivery Time :
10 working days after received your payment
Packaging Details :
Packed in cartons
Size :
Falk 10R-80R
Description
High Tensile Strength Falk Coupling R10 - R80 With Green Polyurethane 97 Shore A
Product Overview

High Tensile Strength Green Polyurethane Coupling 97 Shore A Falk 10R - 80R manufactured by injection with high-quality polyester. Specifically designed for all types of metal shaft couplings, this product delivers exceptional performance with high tensile strength, superior wear resistance, excellent elastic resilience, and resistance to water, oil, and fatigue. Engineered with high impact resistance, our couplings are produced using full sets of molds with extensive experience in Falk R couplings manufacturing.

Technical Specifications
Material: Polyester
Color: Green
Surface: Smooth
Tensile Strength: 55 MPa
Hardness: 97 Shore A
Elongation: 650%
Density: 1.25 g/cm³
Elasticity Impact: >25%
Tear Strength: 155 KN/m
Akron Abrasion Loss: <0.05 cm³/1.61 km
Compression Set: <10% (22h * 70°C)
Working Temperature: 100°C
Falk R Series Dimensions
Size OD (mm) ID (mm) Thickness (mm) Gear Qty Color Hardness
Falk 10R 80 49 23 8 Green 97 Shore A
Falk 20R 114 61 31 8 Green 97 Shore A
Falk 30R 131 74 35 8 Green 97 Shore A
Falk 40R 164 82 47 8 Green 97 Shore A
Falk 50R 210 106 60 8 Green 97 Shore A
Falk 60R 250 140 65 8 Green 97 Shore A
Falk 70R 293 164 72 8 Green 97 Shore A
High Tensile Strength Green Polyurethane Coupling 97 Shore A Falk R10-R80
Additional Standard Sizes Available
Polyurethane Couplings
  • GR14, GR19, GR24, GR28, GR38, GR42, GR48, GR55, GR65, GR75, GR90, GR100, GR110, GR125, GR140, GR160, GR180
  • MT1, MT2, MT3, MT4, MT5, MT6, MT7, MT8, MT9, MT10, MT11, MT12, MT13
  • HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280
  • L35, L50, L70, L75, L90/95, L99/100, L110, L150, L190, L225, L276
  • FALK-R 10R, 20R, 30R, 40R, 50R, 60R, 70R, 80R
Rubber Couplings
  • Hb80, Hb95, Hb110, Hb125, Hb140, Hb160, Hb180, Hb200, Hb240, Hb280, Hb315
  • HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280
  • L35, L50, L70, L75, L90/95, L99/100, L110, L150, L190, L225
  • NM50, NM67, NM82, NM97, NM112, NM128, NM148, NM168, NM194, NM214, NM240, NM265
  • Gear 3J, 4J, 5J, 6J, 7J, 8J, 9J, 10J, 11J

Special sizes can be custom manufactured according to buyer's drawings and specifications.

Important: When submitting an inquiry, please confirm the product number and required quantity for accurate pricing and availability.
