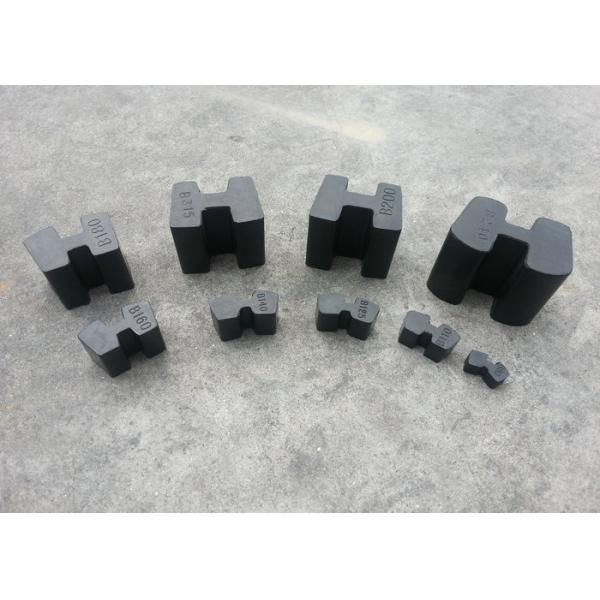

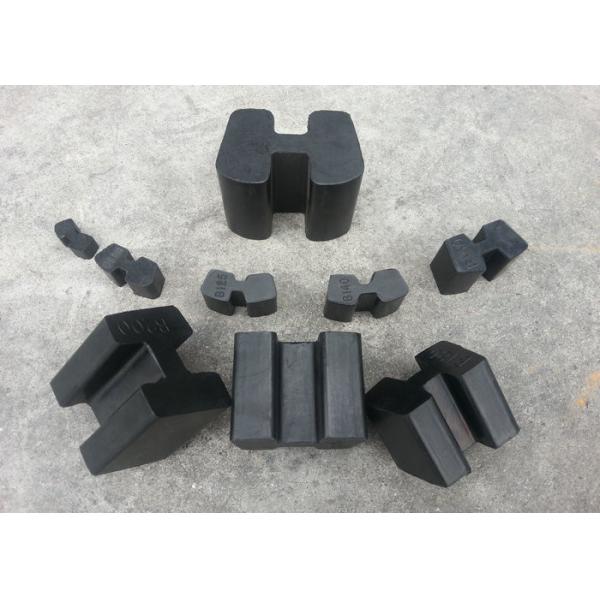

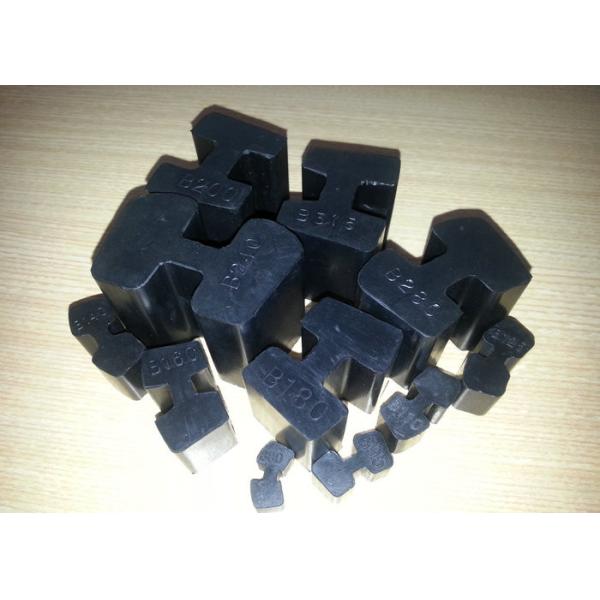

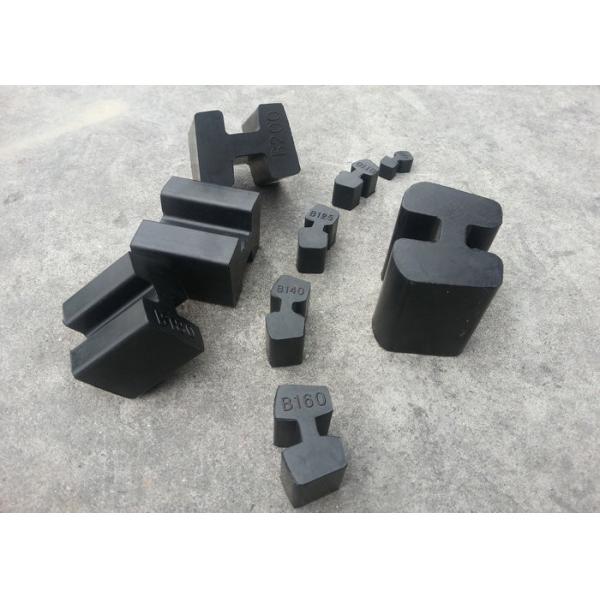

Hb Rubber Coupling with CSM and SBR Rubber, 8-12Mpa Tensile Strength, 1.25g/cm3 Density for Industrial Shaft Coupling
Hb Rubber Coupling with CSM and SBR Rubber, 8-12Mpa Tensile Strength, 1.25g/cm3 Density for Industrial Shaft Coupling
Hb Rubber Coupling with CSM and SBR Rubber, 8-12Mpa Tensile Strength, 1.25g/cm3 Density for Industrial Shaft Coupling
Hb Rubber Coupling with CSM and SBR Rubber, 8-12Mpa Tensile Strength, 1.25g/cm3 Density for Industrial Shaft Coupling
Hb Rubber Coupling with CSM and SBR Rubber, 8-12Mpa Tensile Strength, 1.25g/cm3 Density for Industrial Shaft Coupling
Hb Rubber Coupling with CSM and SBR Rubber, 8-12Mpa Tensile Strength, 1.25g/cm3 Density for Industrial Shaft Coupling
Hb Rubber Coupling with CSM and SBR Rubber, 8-12Mpa Tensile Strength, 1.25g/cm3 Density for Industrial Shaft Coupling
Hb Rubber Coupling with CSM and SBR Rubber, 8-12Mpa Tensile Strength, 1.25g/cm3 Density for Industrial Shaft Coupling
Specifications
type number :
Hb type
color :
black
Brand Name :
3A Rubber
Model Number :
3A2006
Certification :
ISO9001
Place of Origin :
China
MOQ :
10piece
Price :
connect with us
Supply Ability :
10000pieces/month
Delivery Time :
10-20days
Packaging Details :
packing in cartons
hardness :
70+/-5shore A
packing :
in cartons
density :
1.25g/cm3
elongation :
350%
size :
standard size of B80-B350
material :
CSM and SBR rubber
Payment Terms :
T/T,Western Union,L/C,D/P
tensile strength :
8-12Mpa
Description
B80 - B350 Hb Rubber Coupling Made 8-12Mpa 1.25g/Cm³ With CSM SBR

B80 - B350 Rubber Coupling, Hb Rubber Coupling made with High Quality CSM and SBR

Manufactured by injection with high quality polyester or mould CSM/SBR. Specifically designed for all kinds of metal shaft couplings with exceptional performance characteristics including high tensile strength, superior wear resistance, excellent elastic resilience, water resistance, oil resistance, outstanding fatigue resilience, and high impact resistance.

We maintain complete sets of molds and supply a full range of GR, GS, MT, Hb, HRC, L, NM and Gear J series couplings with superior quality and extensive manufacturing experience. Suitable for all types of industrial metal shaft coupling applications.

Technical Specifications
Material
Polyester, CSM/SBR
Color Options
Yellow, red, purple, green, black, etc.
Surface
Smooth
Tensile Strength
12-55 MPa
Hardness
80-98 Shore A
Elongation
400%-650%
Density
1.25 g/cm³
Elasticity Impact
>25%
Tear Strength
35-155 KN/m
Akron Abrasion Loss
<0.05 cm³/1.61 km
Compression Set (22h*70°C)
<10%
Working Temperature
120°C
Hb Rubber Coupling with CSM and SBR Rubber, 8-12Mpa Tensile Strength, 1.25g/cm3 Density for Industrial Shaft Coupling
Standard Size for Hb Rubber Coupling (mm)
Item A B C D E F Height
B80211653489
B952521874.51112
B11029238751115
B12532278751218
B140353012851322
B1603630121061724
B1804437151292935
B20048421917113443
B24061511716103947
B28052421612113139
B31548431818113441
B35060451815114746
Custom Manufacturing Available: Special sizes can be manufactured according to buyer's drawings and specifications.
