Specifications
Brand Name :
3Arubber
Model Number :
3A2006
Certification :
RoHS/FCC/SGS
Place of Origin :
China
MOQ :
10pieces
Price :
negotation
Payment Terms :
L/C,T/T,Western Union,Paypal
Supply Ability :
10000kgs per month
Delivery Time :
10 working days after recieved your payment
Packaging Details :
packed in cartons
Material :
NBR,CSM/SBR or TPU
Color :
black,red
Hardness :
80-98 shore A
Size :
L035-225
Working Temperature :
-20℃-+100℃
Description

Flexible Jaw Coupling , L Type Flange Cast Iron Polyurethane Coupling

1. Contains two hubs and one elestic element.

Hubs are made of cast iron, and phosphated.

Element is made of rubber.

2. Applies to flexible drive shaft ,allowing a larger axial radial displacement and displacement.

3.Has a simple structure,easy maintenance .

4.Disassembly easy

5.low noise

6.Transmission efficiency loss,long useful working life.

Advantages of L couplings:

1.It is easy to maintain,no need the tool can also installed.

2.Can undertake high torque.

3.Have the good buffer.

4.Economical and practical using.

5.Easy pulling out.

6.Simple construction and light weight.

7.NBR or PU rubber with excellent resistance to oil and drugs.

8.Minimum space.

9.No lubrication.

Note: OEM are welcomed!

Use of L couplings:

1.L couplings Mainly used in the mining,metallurgical,cement,chemicals,construction building materials.

2.Electric power,telecommunications,textiles,and transportation departments.

Such as:

Conveyor:Belt conveyor.AFC conveyor.Chain conveyor.Screw conveyor.

Pump:Water pump,oil pump,slush pump, etc.

Fan:Draft fan,fanner,boiler fan,etc.

Excavator:Bucket excavator,bucket wheel excavators,bucket wheel stacker reclaimer.

Crane:Tower crane,gantry crane,bridge crane.

Others:Various elevators,coal plough,ball mill,crusher,recreation machine.

Blender equipment.centrifuger,washer,leather-making machine,machine for recreation.

Park mixer wire drawing machine,extruder,dregs crusher of boiler.

Plastic feeder,rubber smelling machine,etc.

L Type Flange Cast Iron Polyurethane Coupling with High Torque Capacity and Easy Maintenance for Flexible Jaw Applications

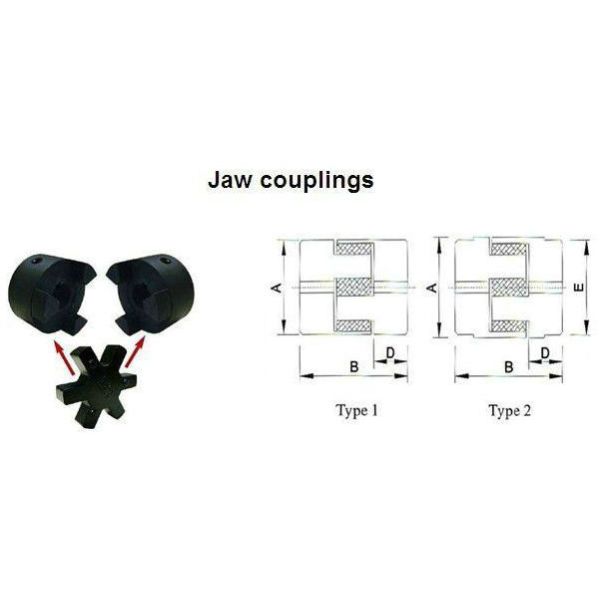

Size Type A B D E Standard Metric Bore Inch Bore
Bore Min Max Min Max
L035 1 16 20.5 6.6 -- 3 3 8 1/8" 3/8"
L050 1 28 43.2 15.6 -- 6 6 15 3/16" 5/8"
L070 1 35 50.8 19 -- 9 9 19 3/16" 3/4"
L075 1 45 54.7 21 -- 9 9 25 3/16" 1"
L090 1 54 54.7 21 -- 9 9 28 3/16" 1 1/8"
L095 1 54 63.7 25.5 -- 9 9 28 3/8" 1 1/8"
L099 1 64.5 72.5 27 -- 12 12 35 7/16" 1 3/8"
L100 1 64.5 88.5 35 -- 12 12 35 7/16" 1 3/8"
L110 1 85 108 43 -- 15 15 48 1/2" 1 7/8"
L150 1 96 115.4 45 -- 15 15 48 5/8" 1 7/8"
L190 1 115 133.4 54 101.6 19 19 55 5/8" 2 1/4"
L225 1 127 153.4 64 108 19 19 65 3/4" 2 5/8"
