Standard Size Polyurethane Coupling with 90-98 Shore A Hardness and Yellow Color for MT Shafts
Standard Size Polyurethane Coupling with 90-98 Shore A Hardness and Yellow Color for MT Shafts
Standard Size Polyurethane Coupling with 90-98 Shore A Hardness and Yellow Color for MT Shafts
Standard Size Polyurethane Coupling with 90-98 Shore A Hardness and Yellow Color for MT Shafts
Standard Size Polyurethane Coupling with 90-98 Shore A Hardness and Yellow Color for MT Shafts
Standard Size Polyurethane Coupling with 90-98 Shore A Hardness and Yellow Color for MT Shafts
Standard Size Polyurethane Coupling with 90-98 Shore A Hardness and Yellow Color for MT Shafts
Standard Size Polyurethane Coupling with 90-98 Shore A Hardness and Yellow Color for MT Shafts
Standard Size Polyurethane Coupling with 90-98 Shore A Hardness and Yellow Color for MT Shafts
Standard Size Polyurethane Coupling with 90-98 Shore A Hardness and Yellow Color for MT Shafts
Specifications
Surface :
smooth
Size :
standard size
Brand Name :
3Arubber
Model Number :
3A2006
Certification :
ROHS/FCC/SGS
Place of Origin :
China
MOQ :
100pieces
Price :
neogation
Payment Terms :
L/C,T/T,Western Union,Paypal
Supply Ability :
10000kgs per month
Delivery Time :
10 working days after recieved your payment
Packaging Details :
Packed in cartons
Density :
1.25g/cm³
Color :
yellow,black,purple
Elongation :
650%
Tensile Strength :
50Mpa
Hardness :
80-98shore a
Description
Standard Size MT Coupling with Hardness 90-98 Shore A Yellow Color
MT1-13 Polyurethane Coupling
High-performance PU coupling with 90-98 Shore A hardness in yellow color, designed for superior durability and reliable performance in industrial applications.
Packaging & Delivery
Packaging Details Delivery Time
Inner by polybag, and outer by carton. Or as per customer request. 10 days
Product Specifications
Name: Polyurethane MT coupling parts
Material: TPU (Thermoplastic Polyurethane)
Size Range: MT1-13
Application: MT shaft coupling with excellent durability
Key Features
  • Specifically designed for MT type couplings
  • Available in sizes: MT1 through MT13
  • Distinctive yellow color for easy identification
  • Made from high-quality TPU material
  • Superior quality construction
  • Excellent durability and long service life
  • Competitively priced for value
Operating Conditions
Temperature Range: -40°C to +100°C
Torque Capacity: 22.4-2500 NM
Hardness: 90-98 Shore A
Application
This standard MT coupling is suitable for large equipment and machinery, providing effective cushioning for transmission shaft joints in demanding industrial environments.
Size Specifications
Size Material D (mm) d (mm) H (mm) Lamella Qty
MT1 Polyurethane 48 19 12 4
MT2 Polyurethane 68 28 18 6
MT3 Polyurethane 82 34 18 6
MT4 Polyurethane 100 42 20 6
MT5 Polyurethane 122 52 25 6
MT6 Polyurethane 140 64 30 6
MT7 Polyurethane 166 90 30 8
MT8 Polyurethane 196 100 35 8
MT9 Polyurethane 225 115 35 10
MT10 Polyurethane 255 140 45 10
MT11 Polyurethane 295 170 50 10
MT12 Polyurethane 356 215 55 12
MT13 Polyurethane 391 250 55 12

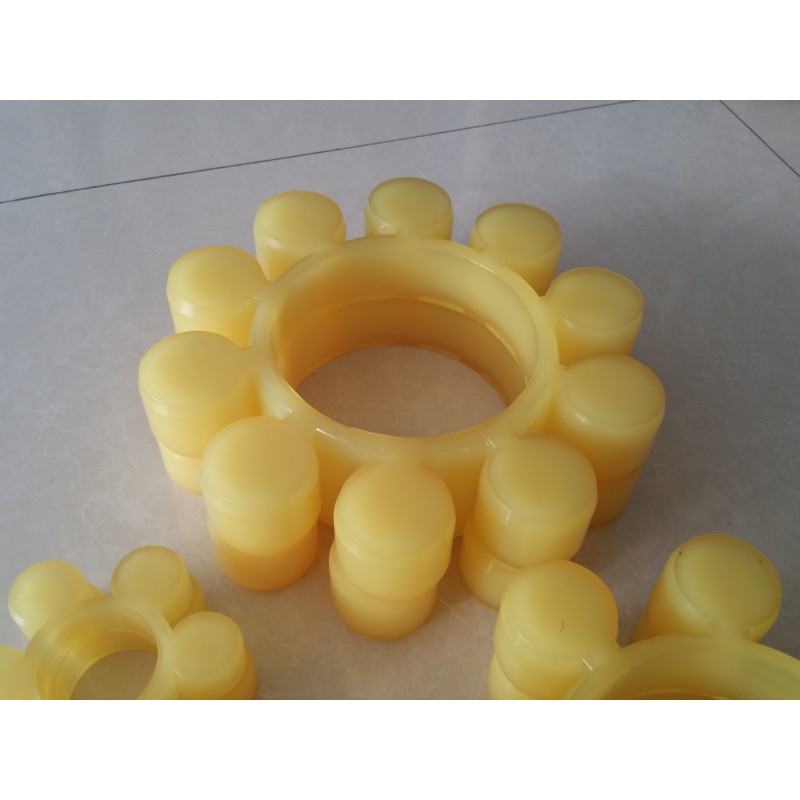

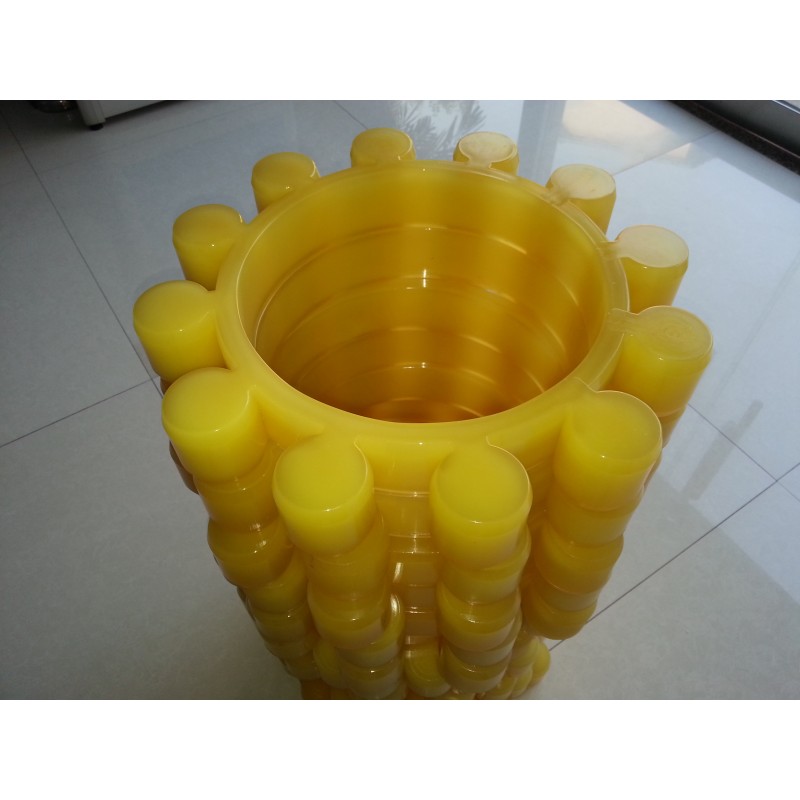

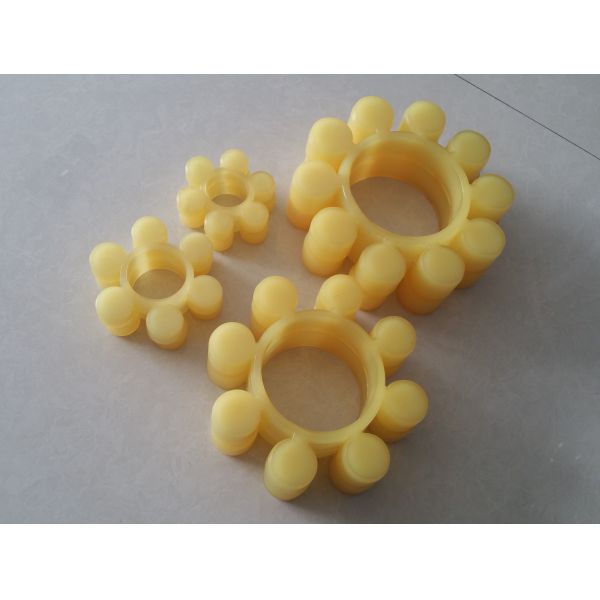

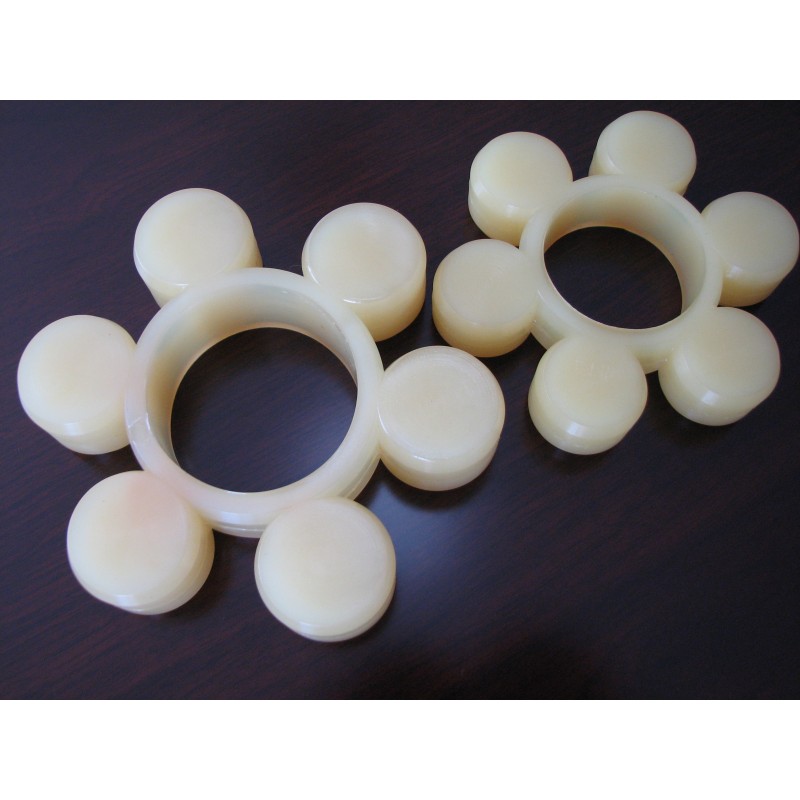

Product Images
Standard Size Polyurethane Coupling with 90-98 Shore A Hardness and Yellow Color for MT Shafts Standard Size Polyurethane Coupling with 90-98 Shore A Hardness and Yellow Color for MT Shafts Standard Size Polyurethane Coupling with 90-98 Shore A Hardness and Yellow Color for MT Shafts Standard Size Polyurethane Coupling with 90-98 Shore A Hardness and Yellow Color for MT Shafts
