Standard Size T Type Polyurethane Coupling with 12-50Mpa Tensile Strength and 80-98 Shore A Hardness
Standard Size T Type Polyurethane Coupling with 12-50Mpa Tensile Strength and 80-98 Shore A Hardness
Standard Size T Type Polyurethane Coupling with 12-50Mpa Tensile Strength and 80-98 Shore A Hardness
Standard Size T Type Polyurethane Coupling with 12-50Mpa Tensile Strength and 80-98 Shore A Hardness
Standard Size T Type Polyurethane Coupling with 12-50Mpa Tensile Strength and 80-98 Shore A Hardness
Standard Size T Type Polyurethane Coupling with 12-50Mpa Tensile Strength and 80-98 Shore A Hardness
Standard Size T Type Polyurethane Coupling with 12-50Mpa Tensile Strength and 80-98 Shore A Hardness
Standard Size T Type Polyurethane Coupling with 12-50Mpa Tensile Strength and 80-98 Shore A Hardness
Standard Size T Type Polyurethane Coupling with 12-50Mpa Tensile Strength and 80-98 Shore A Hardness
Standard Size T Type Polyurethane Coupling with 12-50Mpa Tensile Strength and 80-98 Shore A Hardness
Specifications
Hardness :
80-98shore a
Color :
yellow,red,purple,black
Brand Name :
3Arubber
Model Number :
3A2006
Certification :
ROHS/FCC/SGS
Place of Origin :
China
MOQ :
100pieces
Price :
neogation
Payment Terms :
L/C,T/T,Western Union,Paypal
Supply Ability :
10000kgs per month
Delivery Time :
10 working days after recieved your payment
Packaging Details :
Packed in cartons
Density :
1.25g/cm³
Elongation :
650%
Size :
standard size
Type :
T type
Surface :
smooth
Tensile Strength :
12-50Mpa
Description
Standard Size T Type Polyurethane Coupling
High-performance T-type coupling with 12-50MPa tensile strength, available in polyurethane and rubber materials.
Product Specifications
Material: NBR, CSM/SBR or TPU
Color: Black, Yellow
Hardness: 80-90 Shore A
Size: T40-210
Working Temperature: -20°C to +100°C
Available Standard Sizes
Polyurethane Couplings: GR14, GR19, GR24, GR28, GR38, GR42, GR48, GR55, GR65, GR75, GR90, GR100, GR110, GR125, GR140, GR160, GR180
Additional Series: MT1-MT13, HRC70-HRC280, L35-L276, FALK-R 10R-80R
Rubber Couplings: Hb80-Hb315, HRC70-HRC280, L35-L225, NM50-NM265, Gear 3J-11J
Custom sizes available according to buyer's drawings and specifications.
Key Features
  • Premium polyurethane and rubber materials
  • Excellent stability and durability
  • Easy maintenance and installation
  • ISO9001-2000 certified manufacturing
  • Compatible with jaw coupling/SBT coupling systems
  • Keyway dimensions conform to DIN6885 and GB1095-1979 standards
T-Type Coupling Dimensions & Pricing
Item No. OD (mm) ID (mm) Thickness (mm) PU Price Rubber Price
T40US$0.18
T45452010US$0.18
T5050US$0.18
T55552610US$0.18
T60602611US$0.21
T65653015US$0.21
T70703216US$0.21
T75753617US$0.28US$0.14
T80803618US$0.28US$0.16
T85854118US$0.30US$0.18
T90904118US$0.39US$0.21
T95954518US$0.39US$0.23
T1001005422US$0.49US$0.26
T1051055422US$0.53US$0.28
T1081085222US$0.62US$0.28
T1101105522US$0.71US$0.30
T1151155523US$0.85US$0.34
T1201205524US$0.88US$0.35
T1251256025US$0.97US$0.44
T1301306025US$1.04US$0.49
T1351356025US$1.15US$0.53
T1401407026US$1.18US$0.62
T1451457227US$1.24US$0.71
T1501507627US$1.34US$1.06
T1541547826US$1.76US$1.24
T1701708028US$5.29US$1.59
T18518511340US$5.65
T19019000US$6.18
T21021010036US$7.06US$3.18
Product Images

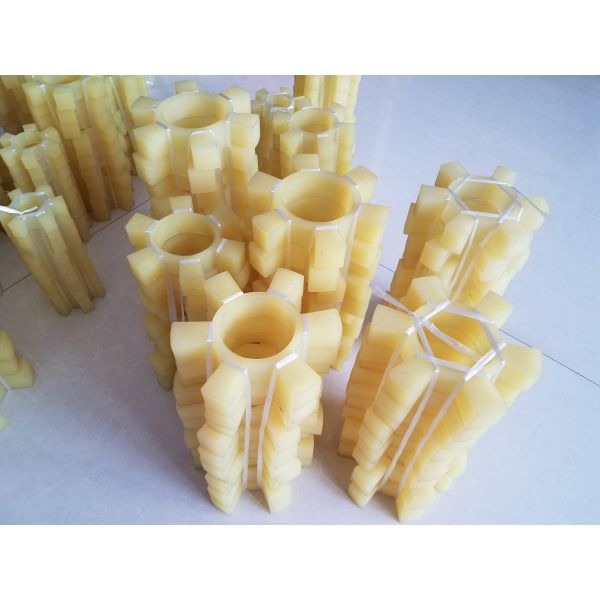

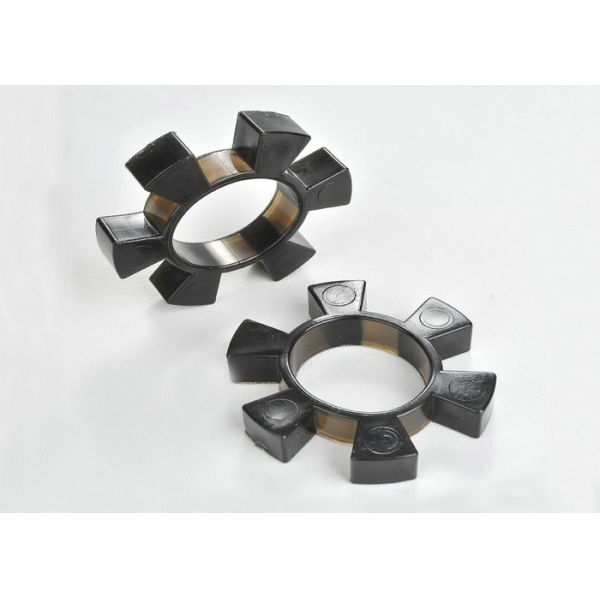

Standard Size T Type Polyurethane Coupling with 12-50Mpa Tensile Strength and 80-98 Shore A Hardness Standard Size T Type Polyurethane Coupling with 12-50Mpa Tensile Strength and 80-98 Shore A Hardness Standard Size T Type Polyurethane Coupling with 12-50Mpa Tensile Strength and 80-98 Shore A Hardness
Note: When requesting a quote, please provide the specific product number and required quantity.
