4H-11H Hytrel Coupling Element with Dupont Hypalon Material for High Temperature Performance and Torsionally Flexible Power Transmission
4H-11H Hytrel Coupling Element with Dupont Hypalon Material for High Temperature Performance and Torsionally Flexible Power Transmission
4H-11H Hytrel Coupling Element with Dupont Hypalon Material for High Temperature Performance and Torsionally Flexible Power Transmission
4H-11H Hytrel Coupling Element with Dupont Hypalon Material for High Temperature Performance and Torsionally Flexible Power Transmission
4H-11H Hytrel Coupling Element with Dupont Hypalon Material for High Temperature Performance and Torsionally Flexible Power Transmission
4H-11H Hytrel Coupling Element with Dupont Hypalon Material for High Temperature Performance and Torsionally Flexible Power Transmission
4H-11H Hytrel Coupling Element with Dupont Hypalon Material for High Temperature Performance and Torsionally Flexible Power Transmission
4H-11H Hytrel Coupling Element with Dupont Hypalon Material for High Temperature Performance and Torsionally Flexible Power Transmission
4H-11H Hytrel Coupling Element with Dupont Hypalon Material for High Temperature Performance and Torsionally Flexible Power Transmission
4H-11H Hytrel Coupling Element with Dupont Hypalon Material for High Temperature Performance and Torsionally Flexible Power Transmission
4H-11H Hytrel Coupling Element with Dupont Hypalon Material for High Temperature Performance and Torsionally Flexible Power Transmission
4H-11H Hytrel Coupling Element with Dupont Hypalon Material for High Temperature Performance and Torsionally Flexible Power Transmission
Specifications
Payment Terms :
L/C,T/T,Western Union,D/P,Paypal
Color :
Red
Size :
Stantard Size 4H - 11H
Brand Name :
3A rubber
Model Number :
3A2006
Certification :
ISO9001
Place of Origin :
China
MOQ :
1piece
Price :
USD10.00/piece
Supply Ability :
10000pieces/month
Delivery Time :
5-10 days
Packaging Details :
packing in cartons
Material :
Dupont Hypalon
Description

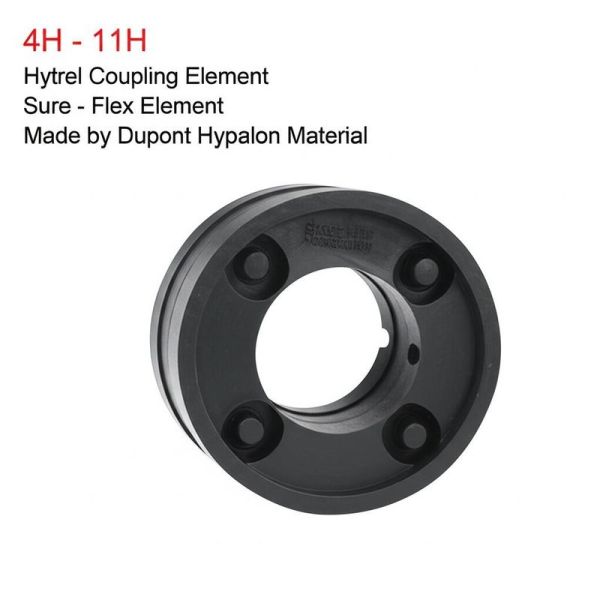

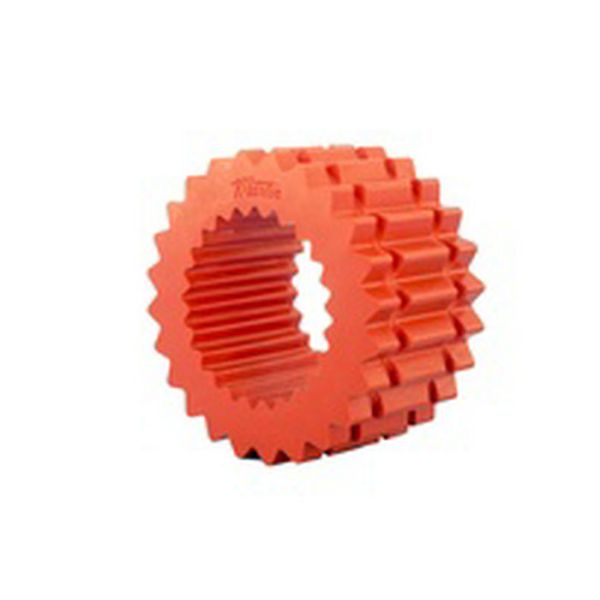

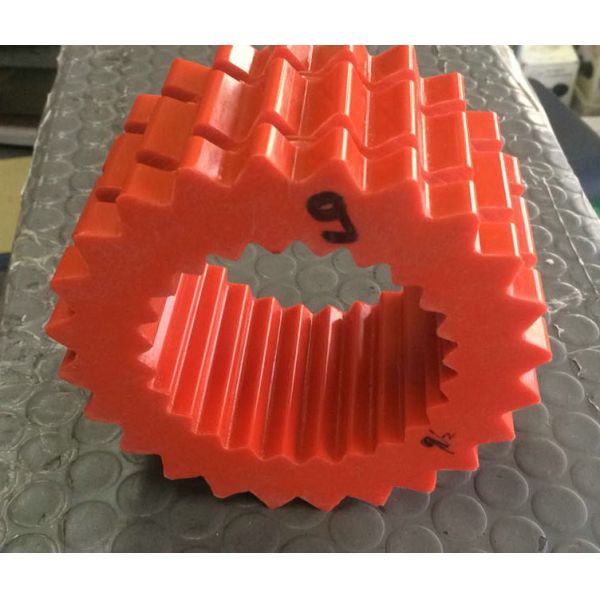

4H - 11H Hytrel Coupling Element, Sure-Flex Element Made by Dupont Hypalon Material
Product Overview

4H - 11H Hytrel Coupling Element, Sure-Flex Element manufactured using Dupont Hypalon material for superior performance and durability in power transmission applications.

  • Hytrel Sleeves for Sure-Flex Couplings
  • High performance accommodates high temperature environments

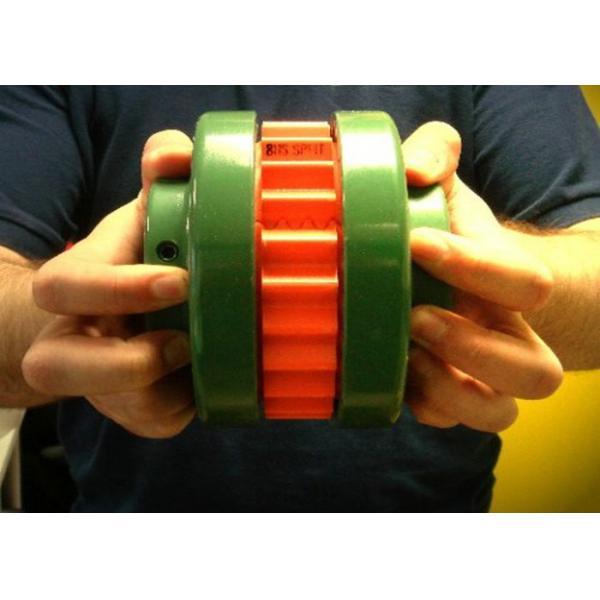

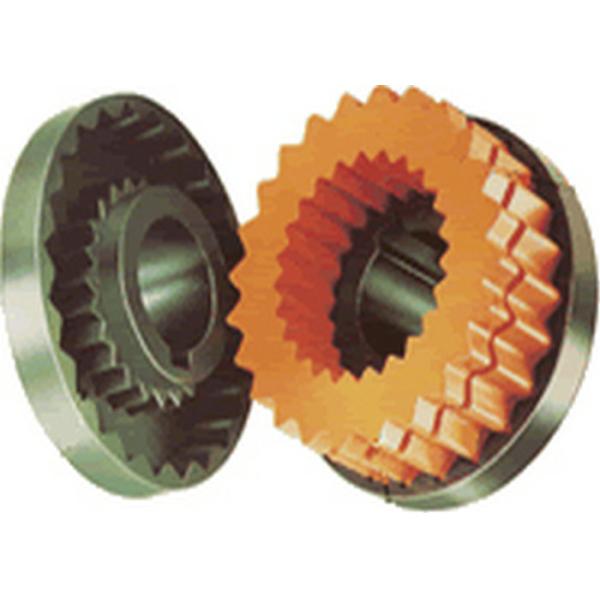

  • All-purpose designed Sure-Flex Coupling for torsionally flexible power transmission
  • Outside diameter: 117mm
  • Nominal torque: 324.83Nm
Technical Specifications

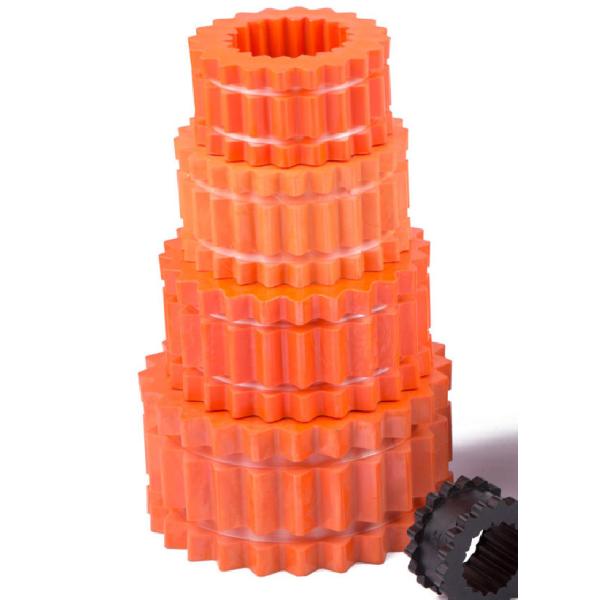

Item Gear 11H Gear 9H Gear 8H Gear 7H Gear 6H Gear 5H Gear 4H
Gear OD (mm) 208 152 129 110 95.3 74.6 58.7
Gear ID (mm) 122.3 87 75 64.5 54.6 44 34
Thickness (mm) 101.6 76.2 63.5 55.6 47.6 39.7 31.8
Gear Quantity (piece) 24 24 24 24 20 20 18
Weight (g/piece) 2500 800 500 300 200 95 50
Available Standard Coupling Sizes
Polyurethane Couplings

GR14, GR19, GR24, GR28, GR38, GR42, GR48, GR55, GR65, GR75, GR90, GR100, GR110, GR125, GR140, GR160, GR180

GS14, GS19, GS24, GS28, GS38, GS42, GS48, GS55, GS65, GS75, GS90, GS100, GS110, GS125, GS140, GS160, GS180

MT1, MT2, MT3, MT4, MT5, MT6, MT7, MT8, MT9, MT10, MT11, MT12, MT13

ML1, ML2, ML3, ML4, ML5, ML6, ML7, ML8, ML9, ML10, ML11, ML12, ML13

MH45, MH55, MH65, MH80, MH90, MH115, MH130, MH145, MH175, MH200

HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280

L35, L50, L70, L75, L90/95, L99/100, L110, L150, L190, L225, L276

FALK-R 10R, 20R, 30R, 40R, 50R, 60R, 70R, 80R

T40, T45, T50, T55, T60, T65, T70, T75, T80, T85, T90, T95, T100, T105, T108, T110, T115, T120, T125, T130, T135, T140, T145, T150, T154, T170, T185, T190, T210

Rubber Couplings

Hb80, Hb95, Hb110, Hb125, Hb140, Hb160, Hb180, Hb200, Hb240, Hb280, Hb315

HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280

L35, L50, L70, L75, L90/95, L99/100, L110, L150, L190, L225

NM50, NM67, NM82, NM97, NM112, NM128, NM148, NM168, NM194, NM214, NM240, NM265

Gear 3J, 4J, 5J, 6J, 7J, 8J, 9J, 10J, 11J

Special sizes built according to buyer's drawings

Nylon Couplings

NL1, NL2, NL3, NL4, NL5, NL6, NL7, NL8, NL9, NL10

Special sizes built according to buyer's drawings

Important: When making an inquiry, please confirm the product number and quantity required.
