400×400 Hydraulic Rubber Moulding Machine / Automatic Flat Vulcanizer Machine
400×400 Hydraulic Rubber Moulding Machine / Automatic Flat Vulcanizer Machine
400×400 Hydraulic Rubber Moulding Machine / Automatic Flat Vulcanizer Machine
400×400 Hydraulic Rubber Moulding Machine / Automatic Flat Vulcanizer Machine
400×400 Hydraulic Rubber Moulding Machine / Automatic Flat Vulcanizer Machine
400×400 Hydraulic Rubber Moulding Machine / Automatic Flat Vulcanizer Machine
Specifications
Brand Name :
junlin
Model Number :
XLB-D/Q
Certification :
Quality Management System Certification(ISO 9001); Specialized SME; High-Tech Enterprise Certificate,etc.
Place of Origin :
Qingdao, Shandong, China
MOQ :
1
Price :
USD2,650–10,150/Set
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
500/year
Delivery Time :
30–90 days
Packaging Details :
wooden case
Size :
Various sizes available
Type :
Column Type Plate Vulcanizing Press
Compatibility :
Compatible with most rubber types
Viscosity :
High
Control System :
PLC/ manual operation
Package Size :
According to product size
Description
400×400 Hydraulic Rubber Moulding Machine / Automatic Flat Vulcanizer Machine
Product Specifications
Type XLB-D/Q400x400x2E XLB-D/Q600x600x2D XLB-D/Q600x600x2 XLB-D/Q450x450/600x2 XLB-D/Q750x850x2
Nominal clamp mould force(mm) 0.5 1 1.6 1.6 1.6
Specification of hot plate(mm) 400x400 600x600 600x600 450x450/600 750x850
Number of working layer(layer) 2 2 2 2 2
Piston diameter(mm) φ200 φ300 φ360 φ360 φ360
Max.stroke of piston(mm) 250 300 450 450 500
Distance between hot plate(mm) 125 150 250 250 250
Unit area pressure of hot plate(mpa) 3.1 2.78 4.44 7.9/5.9 2.5
Motor power(kw) 1.5 2.2 2.2 2.2 3
Weight(kg) 1300 2600 2800 2550/2600 5000
Overall sizeLxWxH(mm) 1500x750x1500 2000x700x1700 2000x700x1700 1800x550x2100 2000x550x2100 2550x960x2100
Close mould speed (mm/s) ≥12 ≥12 ≥12 ≥12 ≥12
Open mould speed (mm/s) ≥12 ≥12 ≥12 ≥12 ≥12
Applications

This machine is specialized for pressing various common, smaller-sized rubber molds, as well as thermoset and thermoplastic molds.

Product Function

The hydraulic system utilizes a high- and low-pressure combination. During mold closing, the high-flow, low-pressure oil provided by a high-flow, low-pressure pump is primarily used to operate the mold. After mold closing, when the pressure is increased, the low-pressure oil is relieved and overflowed, allowing the low-flow, high-pressure pump to provide the high pressure. This ensures efficient operation while reducing the drive rate, thereby reducing energy consumption and increasing efficiency.

Product Features

The electric heating system utilizes a thermostat to automatically maintain a constant temperature on the hot platen surface. The heaters are rationally distributed, and the heater structure has been effectively improved.

Product Images

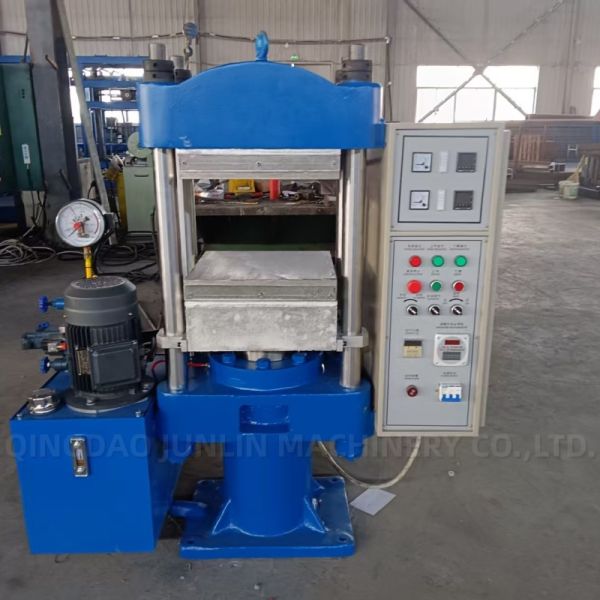

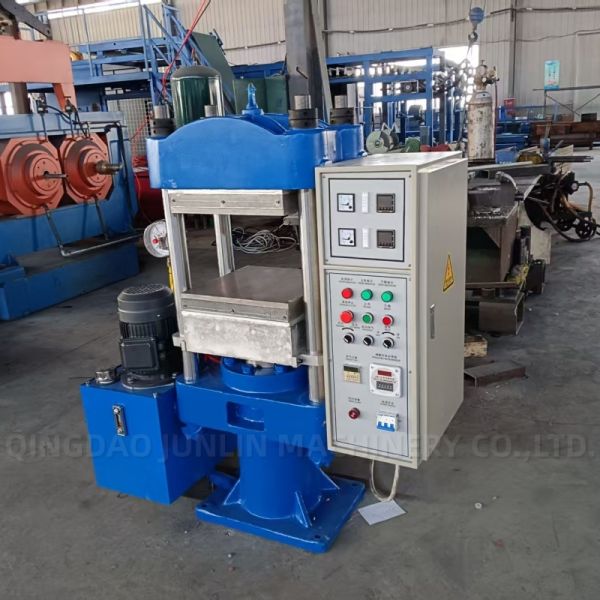

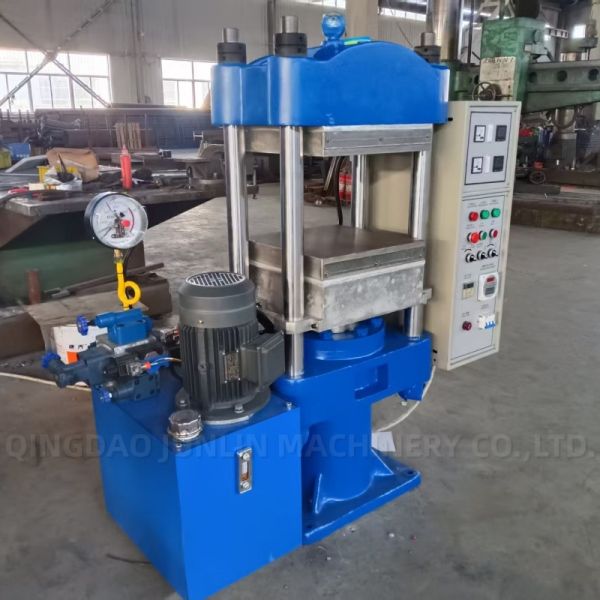

400×400 Hydraulic Rubber Moulding Machine / Automatic Flat Vulcanizer Machine

400×400 Hydraulic Rubber Moulding Machine / Automatic Flat Vulcanizer Machine

400×400 Hydraulic Rubber Moulding Machine / Automatic Flat Vulcanizer Machine


Our Service
Precision-Centric Solutions
We specialize in delivering systematic customized solutions tailored to your specific process requirements, ensuring seamless integration of services and equipment.
Reliable Manufacturing Excellence
Leveraging robust production capabilities, we provide stable, high-quality machinery guaranteeing durable and efficient operational performance.
Industry-Specific Expertise
Serving key sectors:
  • Tire Manufacturing
  • Rubber & Plastics Processing
  • Thermal Insulation Materials
  • Sealing Products
  • Industrial Rubber Applications
Dedicated to sustainable development initiatives including waste tire recycling.
Comprehensive After-Sales Support
  • 24/7 Technical Assistance: Round-the-clock remote support and rapid fault diagnosis to ensure optimal equipment performance
  • Customized Engineering Solutions: Tailored process optimization and lifecycle management guidance for rubber compounding operations
  • Genuine Parts Supply: Original components provided (transportation costs borne by customer)
  • Quality Warranty Commitment: Free replacement for equipment damage caused by verified product defects (Detailed terms specified in warranty agreement)

(Our products and parameters are constantly being improved and optimized. For the latest information, please contact us.)
