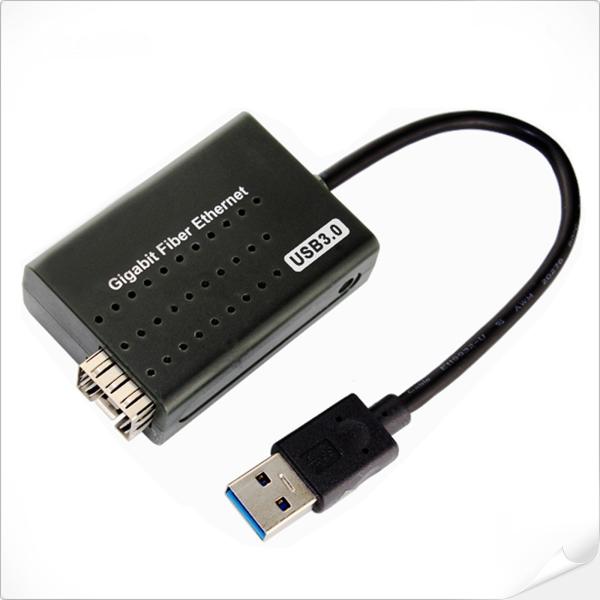

Single Port USB3.0 to Gigabit SFP Fiber Ethernet Media Converter
Single Port USB3.0 to Gigabit SFP Fiber Ethernet Media Converter
Single Port USB3.0 to Gigabit SFP Fiber Ethernet Media Converter
Single Port USB3.0 to Gigabit SFP Fiber Ethernet Media Converter
Single Port USB3.0 to Gigabit SFP Fiber Ethernet Media Converter
Single Port USB3.0 to Gigabit SFP Fiber Ethernet Media Converter
Single Port USB3.0 to Gigabit SFP Fiber Ethernet Media Converter
Single Port USB3.0 to Gigabit SFP Fiber Ethernet Media Converter
Single Port USB3.0 to Gigabit SFP Fiber Ethernet Media Converter
Single Port USB3.0 to Gigabit SFP Fiber Ethernet Media Converter
Single Port USB3.0 to Gigabit SFP Fiber Ethernet Media Converter
Single Port USB3.0 to Gigabit SFP Fiber Ethernet Media Converter
Specifications
Brand Name :
E-link
Model Number :
LNK-3011USB-SFP
Certification :
ISO9001, CE, FCC, RoHS
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability :
100000PCS/Month
Delivery Time :
7-10 working days
Packaging Details :
Industrial PoE Switch Standard Carton Packaging
Dimensions (LxWxH): :
9.61 in x 1.57 in x 0.73 in (24.4 cm x 4 cm x 1.85 cm)
Supports System :
Win XP , Linux , Android 2.x , Android 4.x , Win 2000 , Win 2008 , Win vista , Win7 32 , Win7 64 , Win8 32 , Win8 64 , MAC OS X
Operating Temperature: :
0°C to 50°C (32°F to 122°F)
Weight :
0.06Kg
Description

Single Port USB3.0 to Gigabit SFP Fiber Ethernet Media Converter

Product Advantages

· Converts USB3.0 to 1000Base SFP

· Supports external SFP

· Supports USB3.0, 2.0 and 1.1

· Supports CDC-ECM

· Supports LPM (Link Power Management)

· Supports pair swap/polarity/skew correction

· Crossover Detection & Auto-Correction

· Supports power down/link down power saving

· Supports hardware CRC (Cyclic Redundancy Check) function

· USB Powered and Data Transmission, no need external power supply

Technical Indexes

General

Brand:

E-link

Model:

LNK-3011USB-SFP

Quantity:

1pcs

Material:

Plastic + fiber + copper

Color:

Black or White

Specification

USB Port:

1 x USB 3.0

Optical Port:

1 x SFP 1000Base-FX

Transmission Rate:

1000Mbps

Chipset:

Realtek RTL8153-CG

Transmitted Power:

3.0W Max.

Supports System

Win XP , Linux , Android 2.x , Android 4.x , Win 2000 , Win 2008 , Win vista , Win7 32 , Win7 64 , Win8 32 , Win8 64 , MAC OS X

Environmental

Operating Temperature:

0°C to 50°C (32°F to 122°F)

Storage Temperature:

-40°C to 80°C (-40°F to 176°F)

Relative Humidity:

5% to 95% non-condensing

MTBF:

> 100,000 hrs

LED Indicators

1000FX (Per Port):

Link/Activity

Mechanical

Dimensions (LxWxH):

9.61 in x 1.57 in x 0.73 in (24.4 cm x 4 cm x 1.85 cm)

Weight:

0.06Kg

Casing:

Plastic Case

Mounting Options:

Desktop

Regulatory Approvals

ISO9001, CE, FCC, RoHS

FCC part 15,Class A

Overview

LNK-3011USB-SFP is a USB3.0 to Gigabit Fiber Ethernet Media Converter that supports external SFP modules and meets EN55022. It adopts Realtek RTL8153-CG 10/100/ 1000M Ethernet controller combining an IEEE 802.3u compliant Media Access Controller (MAC), USB 3.0 bus controller, and embedded memory. LNK-3011USB-SFP supports USB3.0 port and 1000M SFP port. Users can use different type of SFP modules (single-mode/multi-mode fiber, 1/2 core) as needed.

Ordering Information

Model

Description

LNK-3011USB-SFP

USB3.0 to 1000Base-FX SFP Ethernet Media Converter

SFP Options:

► (S) = SFP option. Please select your SFP option on our SFP Options page.

► SFP module is to be purchased separately.

Mounting Options:

► Desktop

Power Options:

► USB Powered
