Specifications
Brand Name :
E-link
Model Number :
LNK-MDA4K
Certification :
CE, FCC, Rohs
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability :
100000PCS/Month
Delivery Time :
7-10 working days
Packaging Details :
Industrial PoE Switch Standard Carton Packaging
Dimension (LxWxH) :
2.87 x 1.73 x 0.69in (73x44x17mm)
Operating Temperature: :
-10 ~ + 50°C
Weight :
60g / 0.13 lb
Transmission Distance :
Up to 80km (Over Single-mode Fiber)
Power Supply :
5V DC (USB-C)
Description

Mini 4K DVI Fiber Optic Extender with Stereo Audio

Product Advantages

► DVI 1.0 and HDCP1.2 Support

► Uncompressed transmission, No delay, No losses

► DDC HPDT Signal Support

► Data rate up to 10.2Gbps

► Transmission distance up to 80km over fiber cable

► Supports All Modes up to maximum 4K*2K@60Hz, YUV 4:2:0

► Support 3.5mm External Stereo Audio

► Hot-Pluggable, EMI/RFI Resistant

► Miniature form factor for ease of use and installation

► Operating Temperature: -10~50°C

Technical Indexes

Type of Extender

Fiber Transmitter for DVI signal over Optical Fiber Cable

Input Signals

DVI

Connector

DVI-D

Signal Support

DVI 1.0 format standard and HDCP compliant

Video Support

Up to 720P/960P/1080p@60Hz, 4K*2K@60Hz

Audio Support

Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH)

Chroma Subsampling

Max 3840*2160@60Hz (4:2:0)

Max 3840*2160@30Hz (4:4:4, 4:2:2)

EDID

Bi-Directional (Forward + Backward) Transmission:

Support Dynamic EDID, Plug & Play, no need to learn

Single-Directional (Forward) Transmission:

Support EDID learning manually

Audio Interface

3.5MM external stereo audio

Fiber Connector

SFP/LC

Bandwidth

10.2Gbps

Transmission Distance

300m (Over OM3 Fiber)

Up to 80km (Over Single-mode Fiber)

Operating Temperature

-10 ~ + 50°C

Storage Temperature

-20 ~ + 80°C

Humidity

5% to 90% RH (non-condensing)

MTBF

100,000 hours

Dimension (WxDxH)

2.87 x 1.73 x 0.69in (73x44x17mm)

Weight

60g / 0.13 lb

Power Supply

5V DC (USB-C)

Power dissipation

<5W

Safety Approvals

CE, FCC, Rohs

Overview

The LNK-MDA4K Series 4K DVI Fiber Extender are designed to support transmission of uncompressed DVI signal and audio signal over optical fiber up to distances of 80km, at a resolution of maximum 4K*2K@60Hz, YUV 4:2:0.

The Transmitter converts DVI signal to a single 10Gb/s serial data stream for transmission over optical fiber. The Receiver converts the serial data back to an DVI signal. The transceivers are RoHS compliant and lead-free per requirements in Europe and China.

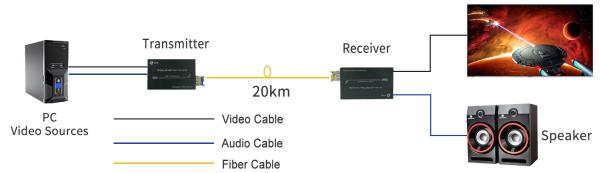

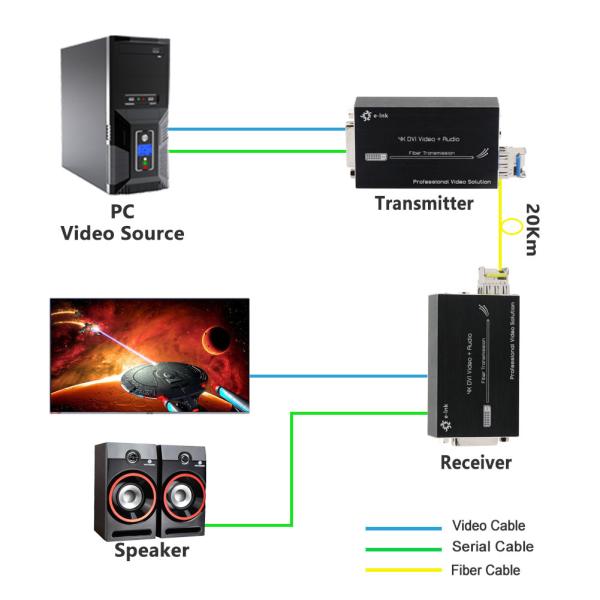

Application

Mini 4K DVI Fiber Optic Extender with Stereo Audio

Ordering Information

Model

Description

LNK-MDA4K-MM

Mini DVI Fiber Extender: 1Ch DVI Signal(4K*2K) + 1Ch Stereo Audio, OM3 Multi-mode Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, 5V DC Power Input

LNK-MDA4K-S20

Mini DVI Fiber Extender: 1Ch DVI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Fiber, 20km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input

LNK-MDA4K-S40

Mini DVI Fiber Extender: 1Ch DVI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Fiber, 40km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input

LNK-MDA4K-S80

Mini DVI Fiber Extender: 1Ch DVI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Fiber, 80km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input
