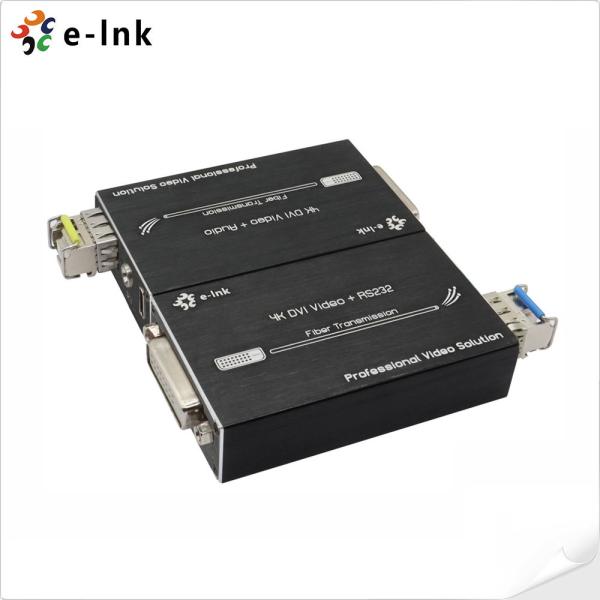

Mini 4K DVI Fiber Optic Extender with Stereo Audio
Mini 4K DVI Fiber Optic Extender with Stereo Audio
Mini 4K DVI Fiber Optic Extender with Stereo Audio
Mini 4K DVI Fiber Optic Extender with Stereo Audio
Mini 4K DVI Fiber Optic Extender with Stereo Audio
Mini 4K DVI Fiber Optic Extender with Stereo Audio
Mini 4K DVI Fiber Optic Extender with Stereo Audio
Mini 4K DVI Fiber Optic Extender with Stereo Audio
Mini 4K DVI Fiber Optic Extender with Stereo Audio
Mini 4K DVI Fiber Optic Extender with Stereo Audio
Specifications
Brand Name :
E-link
Model Number :
LNK-MDA4K-MM
Certification :
ISO9001, CE, FCC, RoHS
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiated
Payment Terms :
T/T,PayPal
Supply Ability :
1000pcs/mouth
Delivery Time :
3-12working days
Packaging Details :
standard export package
Type of Extender :
Fiber Transmitter for DVI signal over Optical Fiber Cable
Bandwidth :
10.2Gbps
Operating Temperature :
-10 ~ + 50°C
Storage Temperature :
-20 ~ + 80°C
Weight :
60g / 0.13 lb
Safety Approvals :
CE, FCC, Rohs
Description

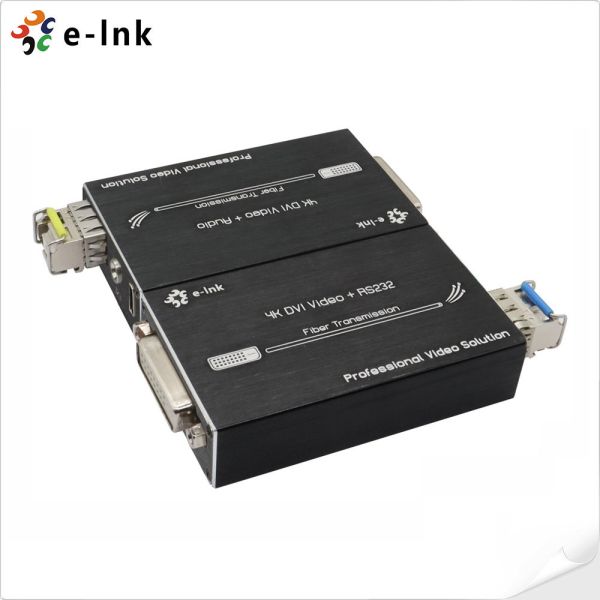

Mini 4K DVI Fiber Optic Extender with Stereo Audio

Advantage

► DVI 1.0 and HDCP1.2 Support

► DDC HPDT Signal Support

► Data rate up to 10.2Gbps

► Transmission distance up to 80km over fiber cable

► Supports All Modes up to maximum 4K*2K@60Hz, YUV 4:2:0

► Hot-Pluggable, EMI/RFI Resistant

► Operating Temperature: -10~50°C

Overview

The LNK-MDA4K Series 4K DVI Fiber Extender are designed to support transmission of

uncompressed DVI signal and audio signal over optical fiber up to distances of 80km, at a

resolution of maximum 4K*2K@60Hz, YUV 4:2:0.

The Transmitter converts DVI signal to a single 10Gb/s serial data stream for transmission

over optical fiber. The Receiver converts the serial data back to an DVI signal. The transceivers

are RoHS compliant and lead-free per requirements in Europe and China. This product is ideal

for large-screen display, conferencing systems and home entertainment and so on. The device

has the ability of anti-interference, to ensure the stability of the signal.


Mini 4K DVI Fiber Optic Extender with Stereo Audio

Technical Indexes


Type of Extender

Fiber Transmitter for DVI signal over Optical Fiber Cable

Input Signals

DVI

Connector

DVI-D

Signal Support

DVI 1.0 format standard and HDCP compliant

Video Support

Up to 720P/960P/1080p@60Hz, 4K*2K@60Hz

Audio Support

Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH)

Chroma Subsampling

Max 3840*2160@60Hz (4:2:0)

Max 3840*2160@30Hz (4:4:4, 4:2:2)

EDID

Bi-Directional (Forward + Backward) Transmission:

Support Dynamic EDID, Plug & Play, no need to learn

Single-Directional (Forward) Transmission:

Support EDID learning manually

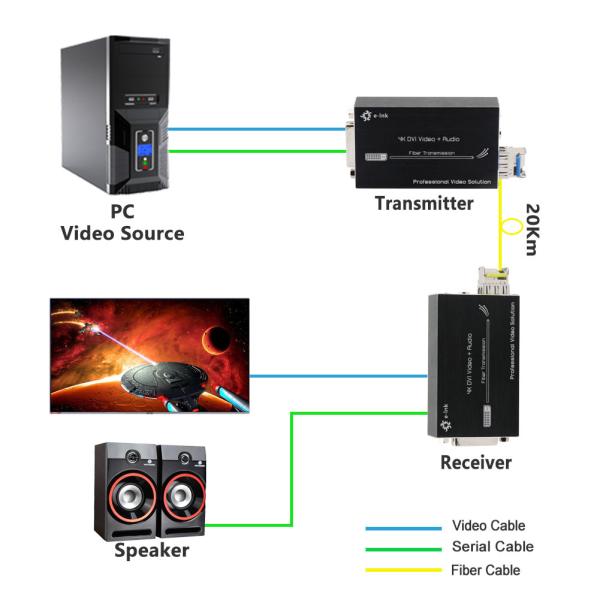

Application

Mini 4K DVI Fiber Optic Extender with Stereo Audio

Ordering Information

Model

Description

LNK-MDA4K-MM

Mini DVI Fiber Extender: 1Ch DVI Signal(4K*2K) + 1Ch Stereo Audio, OM3 Multi-mode Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, 5V DC Power Input

LNK-MDA4K-S20

Mini DVI Fiber Extender: 1Ch DVI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Fiber, 20km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input

LNK-MDA4K-S40

Mini DVI Fiber Extender: 1Ch DVI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Fiber, 40km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input

LNK-MDA4K-S80

Mini DVI Fiber Extender: 1Ch DVI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Fiber, 80km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input
