Specifications
Brand Name :
E-link
Model Number :
LNK-IRS93
Certification :
ROHS,FCC,CE
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
L/C,T/T,Western Union,MoneyGram,Paypal
Supply Ability :
1000 pcs/month
Delivery Time :
3-12 working days
Packaging Details :
Fiber Optic Modem Standard Export Package
Keywords :
Fiber Optic Modem
Operating Temperature :
-25°C to +75°C
Weight :
0.25kg/pcs
Dimensions (WxDxH) :
95(L)*70(W)*29(H) mm
Power rate :
<5W
Power Supply :
DC12~48V
Description

Industrial Serial RS232/RS485/RS422 Fiber Optic Modem

Industrial Serial RS232/RS485/RS422 Fiber Optic Modem Advantages

► Plug-and-play, hot pluggable

► Extends Bi-directional RS-232/RS-485/RS-422 up to 2Km on MMF, 80Km on SMF

► EIA /TIA standard RS232/485/422, 0~2Mbps rate

► Serial data is fully transparent, baud rate is self-adaptive, no setting is required

► The high speed serial data can used for DMX512 communication in Stage Lighting Control

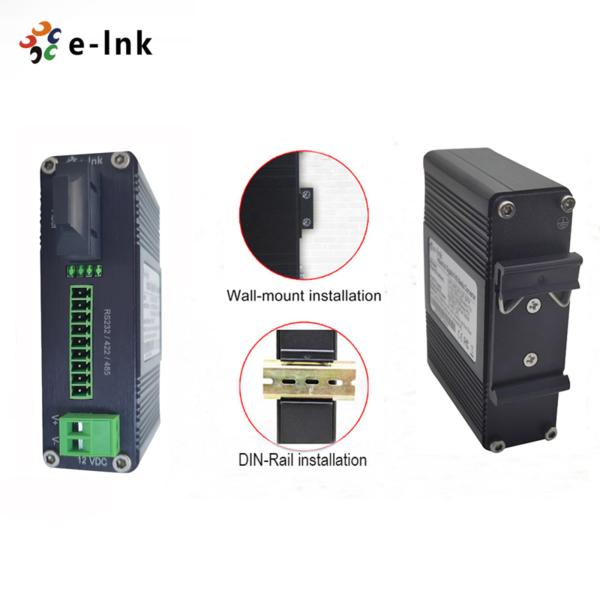

► Support DIN-Rail & Wall-mount installation.

► Built-in surge and static protection

► Diagnostic and unit indicator LEDs

► Environmentally Hardened -40°C to 75°C (-40°F to 176°F) operating temperature

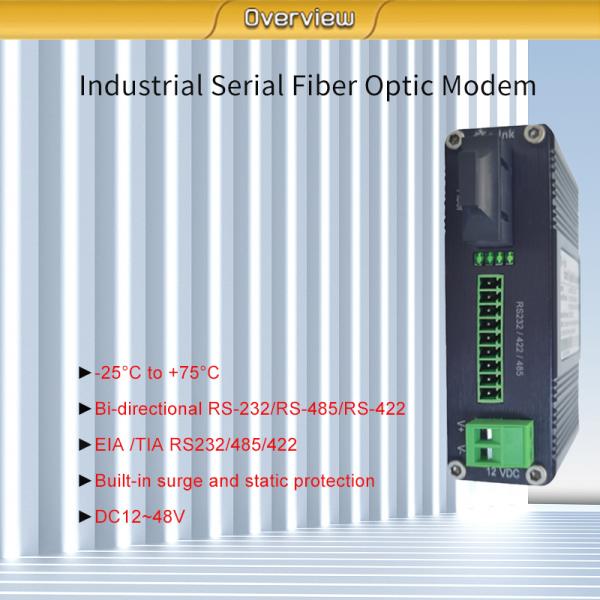

Industrial Serial RS232/RS485/RS422 Fiber Optic Modem Overview

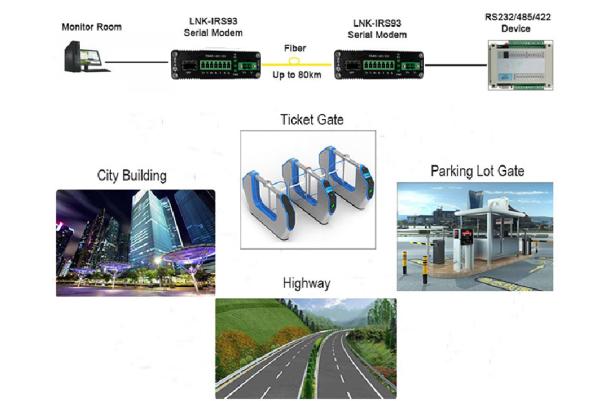

LNK-IRS93 series is an industrial grade RS232/RS485/RS422 to fiber optic converter which converts a standard RS232/RS485/RS422 signal to a fiber optic link as to extend the signal up to 2Km on multimode fiber and 80Km on single mode fiber. The use of optical fiber communication solves the problems of electromagnetic interference, ground ring interference and lightning damage. It greatly improves the reliability, security and confidentiality of data communication, and can be widely used in various industrial control, process control, Stage Lighting Control and traffic control occasions.

Industrial Serial RS232/RS485/RS422 Fiber Optic Modem Technical Indexes

Model

LNK-IRS93 Series

Fiber Connector

SC standard, ST/FC/LC optional

Fiber Distance

50/125um MMF: 2Km, 62.5/125um MMF: 5Km, 9/125 SMF:20/40/60/80Km

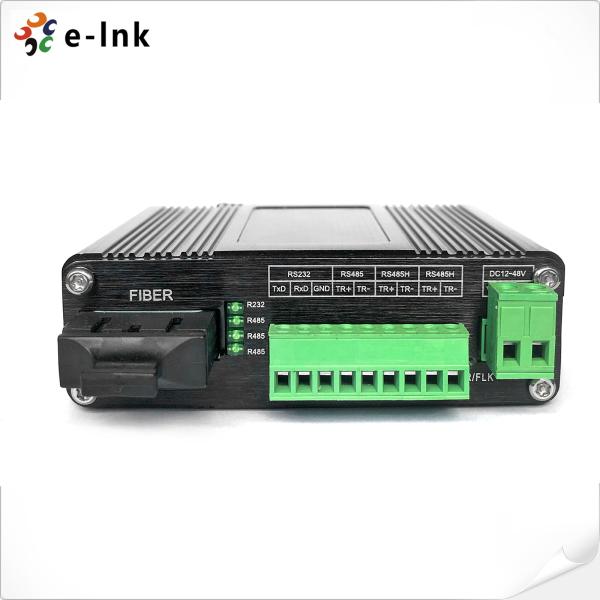

Serial Interface

Industrial Terminal

Signal Ports

1Ch RS232 - 1Mbps

1Ch R485 - 1Mbps

2Ch RS485H- 2Mbps

2Ch RS485H can be grouped into 1Ch High Speed RS422

Standard

EIA /TIA RS232/485/422

Serial Distance

RS232: 15 meters, RS485/422: 1000 meters

Rate

Max 2Mbps

RS-232

TXD, RXD, GND - Bi-directional

RS-485

D+, D-, GND - Bi-directional

Power Supply

DC12~48V

Power rate

<5W

Static protection

15KV electric static discharge (ESD) protection

Surge protection

1500W/sec surge protection

Operation Temperature

-25°C to +75°C

Storage Temperature

-40°C to +85°C

Storage Humidity

5%~90% non-condescending

Dimensions

95(L)*70(W)*29(H) mm

Weight

0.25kg/pcs

Industrial Serial RS232/RS485/RS422 Fiber Optic Modem ordering information

Model

Description

LNK-IRS93-SFP

Industrial Serial RS232/RS485/RS422 with SFP port

LNK-IRS93-SCMM

Industrial Serial RS232/RS485/RS422 , SC MM 850nm, 550m

LNK-IRS93-SC20

Industrial Serial RS232/RS485/RS422 , SC SM 1310nm, 20km

Mounting Options

► Default DIN-Rail Bracket installed, Wall Mount Bracket is included.

Power Options

► Power Supply is to be purchased separately
