Multi-functional 4K 60Hz HDMI KVM Fiber Extender
Multi-functional 4K 60Hz HDMI KVM Fiber Extender
Multi-functional 4K 60Hz HDMI KVM Fiber Extender
Multi-functional 4K 60Hz HDMI KVM Fiber Extender
Multi-functional 4K 60Hz HDMI KVM Fiber Extender
Multi-functional 4K 60Hz HDMI KVM Fiber Extender
Multi-functional 4K 60Hz HDMI KVM Fiber Extender
Multi-functional 4K 60Hz HDMI KVM Fiber Extender
Specifications
Brand Name :
E-link
Model Number :
LNK-4KH-1D1U1E1A1R
Certification :
ROHS,FCC,CE
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
L/C,T/T,Western Union,MoneyGram,Paypal
Supply Ability :
1000 pcs/month
Delivery Time :
3-12 working days
Packaging Details :
Carton Packaging
Power supply :
DC 12V/1A
Power dissipation :
MAX 10W
Operating Temperature :
-25℃ ~ +55℃
Storage Temperature :
-40℃ ~ +85℃
Dimensions (WxDxH) :
148*115*28mm
The warranty :
1-year warranty
Description

Multi-functional 4K 60Hz HDMI KVM Fiber Extender


Advantages

► Support HDMI video resolution up to 4096*2160P@60Hz

► Supports video resolutions up to 4K2K@50/60Hz with 4:4:4 chromatic sampling

► Complies with HDMI 2.0b, HDCP 2.2, and DVI 1.0 standards

► Support HDMI video loop out

► Support KVM

► Support RS232 or RS485

► Support 10/100M TCP/IP

► Support Bidi IR

► Support DIP Switch with Audio Separation and EDID function


Overview

The LNK-4KH-1D1U1E1A1R Fiber optic extender provides extension of HDMI signals long distances over one fiber optic cable, it supports high resolution up to 4K60Hz HDMI, and with KVM, Audio, RS232 or RS485, 10/100M TCP/IP, IR, EDID function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.



Multi-functional 4K 60Hz HDMI KVM Fiber Extender

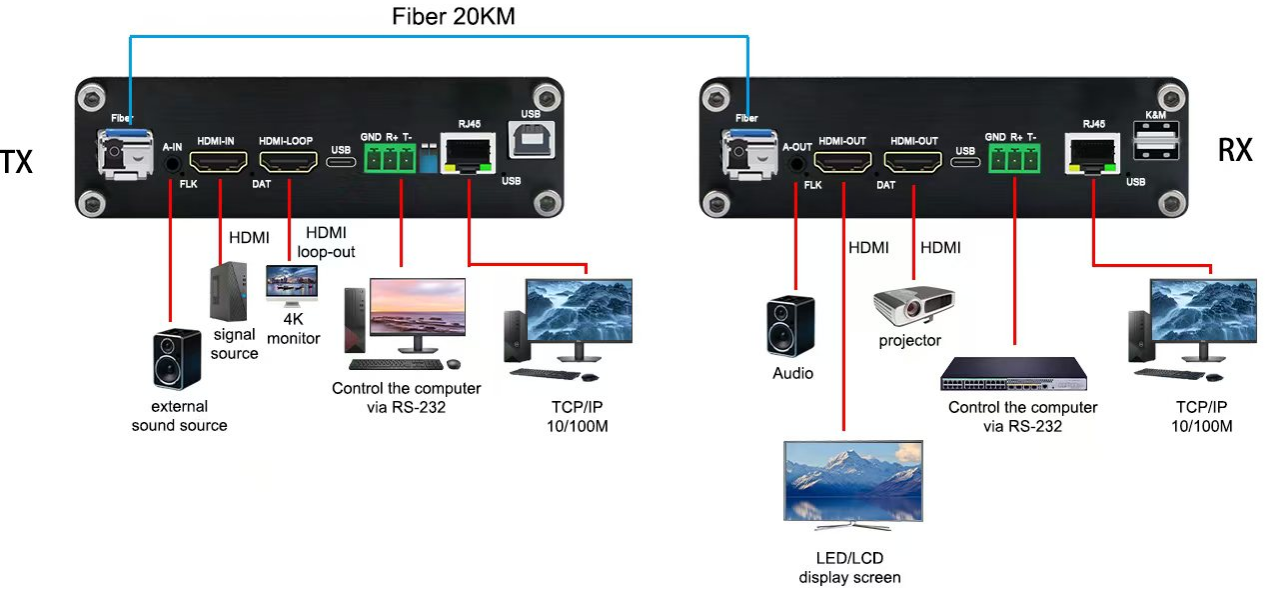

Application

Multi-functional 4K 60Hz HDMI KVM Fiber Extender

Ordering Information


Model

Description

LNK-4KH-1D1U1E1A1R

Multifunctional 4K60Hz HDMI Fiber Extender, with KVM, Audio, RS232 or RS485, 10/100M TCP/IP, IR, EDID function, MMF 330M or SMF 20/40/60/80KM, LC or SC.
