4-Port 10/100/1000Base-T IEEE802.3at PoE+ 30W to 1-Port 10/100/1000Base-T Uplink Mini Industrial AI Smart Managed PoE+ Ethernet Switch with Voltage Booster System

Specifications

Model Number :

LNK-AIMC005GMP

Input Power :

9~54V DC, 4-pin terminal block

MOQ :

1 PCS

Delivery Time :

10-15 Working Days

Casing :

Aluminum Case

Port PoE Scheduled Restart :

Support

Payment Terms :

L/C,T/T,Western Union

Restart PoE :

Support

Price :

$29.9

Mounting Options :

DIN-Rail

Certification :

ISO9001, CE, FCC Part 15 Class A, RoHS

Dimensions (W x D x H) :

98 x 67x 46 mm

Brand Name :

E-link

PoE Budget :

Up to 30-watt PoE budget (9-54VDC)

Place of Origin :

China

Weight :

320g

Packaging Details :

Package

Standard :

IEEE 802.3af/at PoE+ PSE (af:15.4W,at:30W)

Supply Ability :

10000 pcs/month

Scheduled Reset :

Support

Description

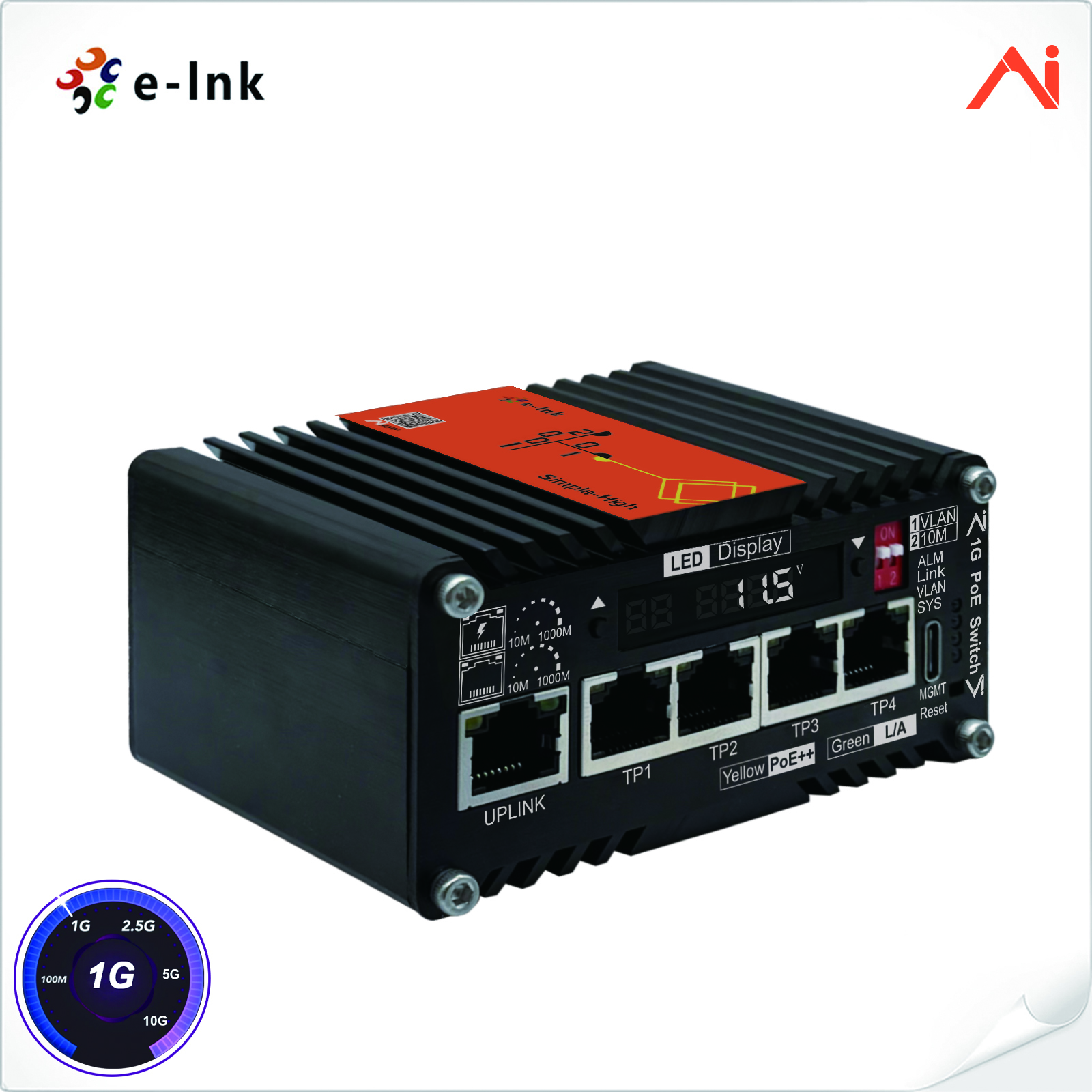

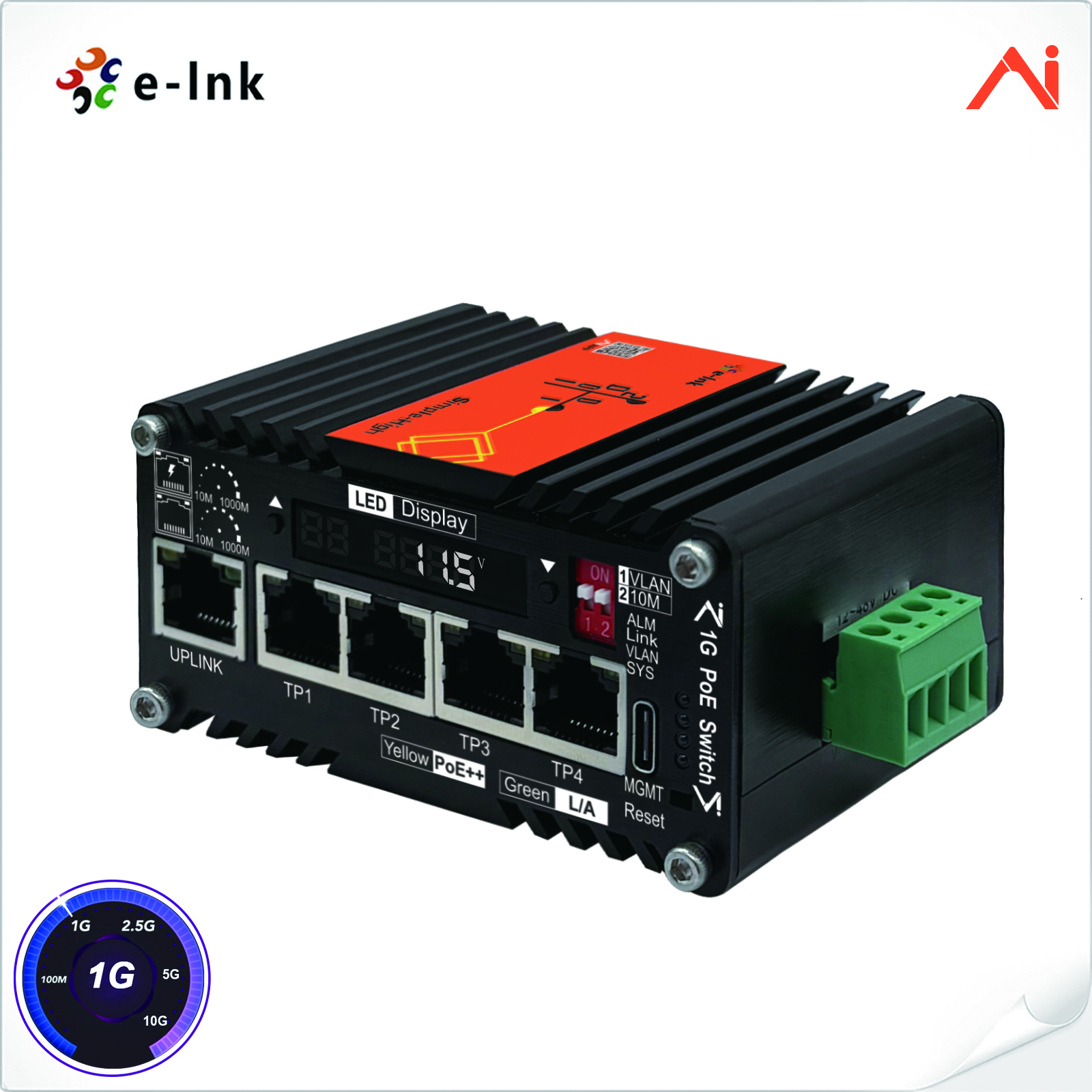

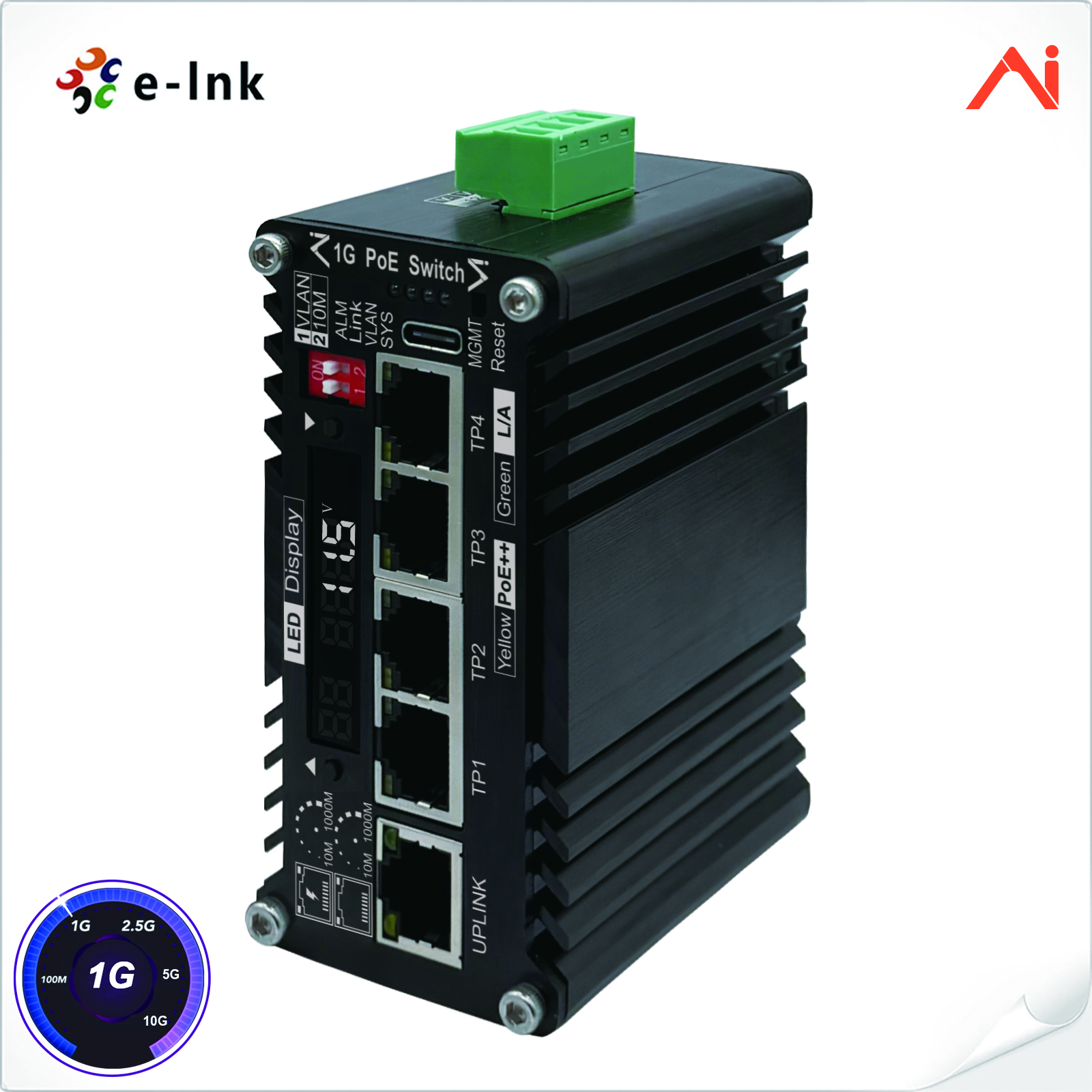

Mini Industrial AI Smart Managed PoE+ Ethernet Switch Overview

LNK-AIMC005GMP is a compact AI smart managed industrial PoE switch independently developed by E-link. Equipped with 4×802.3at 30W PoE+ RJ45 ports + 1×Gigabit uplink RJ45 port, it also supports solar voltage boosting function.

This world-first innovative switch combines the dual advantages of managed and unmanaged switches. Engineers can monitor device status via multiple methods: mobile APP, PC web management interface and LED Display without additional test tools.

Data cover:voltage,current, temperature, Ethernet port status, PoE status,

We innovated this product based on standard switches:

Device function: Scheduled System Reset, PoE Scheduled Restart. The redundant-mode supports auto -recover function. If the destination port of a packet is link-down, it forwards the packet to the other port of the backup pair

Meets IP40, aluminum housing, works stably under harsh industrial temperatures from -40℃ to 75℃.

Equipped with dual redundant power supplies, it keeps Ethernet working stably 24X7.

Application Scenarios:

Intelligent Manufacturing & Automation: data transmission and multi-device interconnection

Power & New Energy: Surveillance communication and cluster networking.

Rail Transit & Tunnel Engineering: Real-time video monitoring and signal transmission.

Oil, Gas & Mining Sites: Stable communication

Smart City & New Infrastructure Deployment

In addition, this product can be used in fields such as autonomous driving, humanoid robots, AI computing, metallurgy, chemical engineering, outdoor research base stations and field weather monitoring.

Mini Industrial AI Smart Managed PoE+ Ethernet Switch Features

► Self-developed intelligent management system by E-link, supporting mobile APP and PC Web UI

► One-click LED screen display real-time data dashboard: system current, voltage, internal temperature; Ethernet port link speeds and more

► Intuitive graphical interface under APP/Web for full device status visualization

► Lightweight simplified UI replaces complicated traditional management pages, enabling easy on-site debugging and maintenance even for non-professional operators

► Wide DC input range 9V–54V, built-in voltage boost module

► Compliant with IEEE 802.3af/at, total PoE+ PSE budget up to 30W

► Customizable versions available for Starlink Gen 2 / Gen 3 compatibility

► Flexible PoE power output matching different input voltages:

• 12V input → 60W PoE output

• 24V input → 120W PoE output

• 48V input → 120W PoE output

► 6KV lightning surge protection on all ports

► Wide operating temperature: -40°C ~ +75°C (-40°F ~ 167°F)

Mini Industrial AI Smart Managed PoE+ Ethernet Switch Technical Indexes

Industrial AI Smart Managed PoE+ Switch with Voltage Booster for Solar System
Access Mode	5-Port 10/100/1000BASE-T RJ45, 1-4 Port support PSE IEEE802.3af/at 30W
Ethernet
Standards:	Standards Compliance IEEE 802.3 Ethernet
	IEEE 802.3u Fast Ethernet
	IEEE 802.3ab Gigabit Ethernet
	IEEE 802.3x Full-Duplex Flow Control
	IEEE 802.3az Energy Efficient Ethernet (EEE)
Processing Type	Store-and-Forward
Forward Filter Rate	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer Memory	1 Mbit
Max Packet Length	9K Bytes
Switching Capacity	20Gbps/non-blocking
PC (Support MacOS, Windows)
MacOS Browser:	Microsoft Edge 89+ (Release date: 2021-03-04 or later version) Google Chrome 89+ (Release date: 2021-03-02 or later version) Opera 75+ (Release date: 2021-03-24 or later version)
Windows Browser:	Microsoft Edge 89+ (Release date: 2021-03-04 or later version) Google Chrome 89+ (Release date: 2021-03-02 or later version) Opera 75+ (Release date: 2021-03-24 or later version)
Mobile App (Support Android, Not Support iOS)
Mobile Phone APP(Android)	Support all Android Mobile Phone and Android Tablet
Mobile iPhone APP(iOS)	Not Support iPhone or iPad
AI Smart Managed Functions
Service Board Status	Temperature
	Voltage
	Current
System Status LED	System
	Power
	VLAN
	10M
RJ45 Port Status	Link Status
	Current Rate
	PSE Status
	PSE Active Pairs
	PSE Supply Voltage
	PSE Power Consumption
	Power Pin Assignment
	Pair A State
	Pair B State
DIP Switch	DIP1	VLAN
	DIP2	10M
Restart PoE	Support
Scheduled Reset	Support
Port PoE Scheduled Restart	Support
Interface port
Ethernet Port	5-Port 10/100/1000BASE-T Ethernet RJ45 interface Auto-negotiation, auto MDI/MDI-X
	1-4 port 10/100/1000BASE-T Support IEEE802.3af/at 30W
	1- port 10/100/1000BASE-T Uplink
	Cable: Cat 5e or above; Distance: ≤100 meters at 1000M data rate, ≤250 meters at 10M data rate
PoE (Power over Ethernet)
Standard	IEEE 802.3af/at PoE+ PSE (af:15.4W,at:30W)
PoE Power Output	30 Watts max.
Power Pin Assignment	End-span + Mid-span: 1/2(+), 3/6(-); 4/5(+),7/8(-)
PoE Budget	Up to 30-watt PoE budget (9-54VDC)
PoE Power Supply Type	802.3af/at, End-span + Mid-span (If need passive PoE please contact customer service)
PoE Mode	Compatible with Mode A and Mode B(Mode A and Mode B switchable via Management interface)
Voltage Booster	DC 9-12V Input	PoE 48V Output, max 60W	DC 19-24V Input	PoE 48V Output, max 120W
	DC 24-36V Input	PoE 48V Output, max 120W	DC 48-54V Input	PoE 48V Output, max 120W
Electrical and Mechanical
Input Power	9~54V DC, 4-pin terminal block
Power Consumption	5W Max. (When PoE not used)
Dimensions (W x D x H)	98 x 67x 46 mm
Weight	320g
Casing	Aluminum Case
Mounting Options	DIN-Rail
LED Indicators
SYS	Green LED Blinking: Operating normally
VLAN	Green Solid On: VLAN On
	Green LED Off: Off
10M	Green LED Solid On: Ethernet port link rate is 10M
	Green LED Off: Ethernet port link rate is 10M/100M/1000M
NC	NC
Uplink	Green LED Solid On: Ethernet port link
	Green LED Slow Blink: Ethernet port link rate is 10M/100M/1000M
	Green LED Off: Ethernet port no link
TP1-4 L/A	Green LED Solid On: Ethernet port link
	Green LED Slow Blink: Ethernet port link rate is 10M/100M/1000M
	Green LED Off: Ethernet port no link
TP1-4 PoE	Yellow LED Solid On: Connected PD
	Yellow LED Off: Not connected PD
Environmental
Operating Temperature	-40°C to 75°C (-40°F to 167°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Relative Humidity	5% to 95% non-condensing
MTBF	> 200,000 hrs
Regulatory Approvals
ISO9001, CE, FCC Part 15 Class A, RoHS
EMI: EN55022:2010+AC: 2011, Class A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024: 2010
EMS: IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Surge) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF)

Mini Industrial AI Smart Managed PoE+ Ethernet Switch Application

PoE Standards Parameters
PoE Standards		Input(V)	Current(A)	Output(V)	Power(W)	PoE Pin	Mode
IEEE802.3af/at	af/at	9-12	5	48V	60	1/2(+),3/6(-); 4/5(+),7/8(-)	ModeA&B
	af/at	19-24	5	48V	120	1/2(+),3/6(-); 4/5(+),7/8(-)	ModeA&B
	af/at	48-54	5	48V	120	1/2(+),3/6(-); 4/5(+),7/8(-)	ModeA&B

Starlink PoE	Gen2	48-56	2.67	56	150	1/2(+),3/6(-); 4/5(+),7/8(-)
	Gen3	48-56	3.57	56	200	1/2(+),3/6(-); 4/5(+),7/8(-)

Mini Industrial AI Smart Managed PoE+ Ethernet Switch Ordeing Information

Model	Description
LNK-AIMC005GMP	Industrial AI Smart Managed 1-Port 10/100/1000BASE-T Uplink to 4-Port 10/100/1000BASE-T IEEE802.3af/at 30W PoE+ Switch, 9V to 54V DC power input, with Voltage Booster.
Mounting Options	► Default DIN-Rail bracket included.
Power Options	► 120W/2.5A 48VDC Power Supply. Open Wire for Terminal Block
	► Power Supply is to be purchased separately.
