FTTA (Fiber To The Antenna) PATCH CORD With PDLC
FTTA (Fiber To The Antenna) PATCH CORD With PDLC
FTTA (Fiber To The Antenna) PATCH CORD With PDLC
FTTA (Fiber To The Antenna) PATCH CORD With PDLC
FTTA (Fiber To The Antenna) PATCH CORD With PDLC
FTTA (Fiber To The Antenna) PATCH CORD With PDLC
FTTA (Fiber To The Antenna) PATCH CORD With PDLC
FTTA (Fiber To The Antenna) PATCH CORD With PDLC
Specifications
Brand Name :
E-link
Certification :
CE, FCC, RoHS
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiated
Payment Terms :
T/T,PayPal
Supply Ability :
5000pcs/mouth
Delivery Time :
3-12working days
Packaging Details :
standard export package
Operating Temperature :
-40C ~ +85C
Storage Temperature :
-40C ~ +85C
Fiber Length :
1m, 2m….. any length optional.
Length and tolerance :
10cm
Description

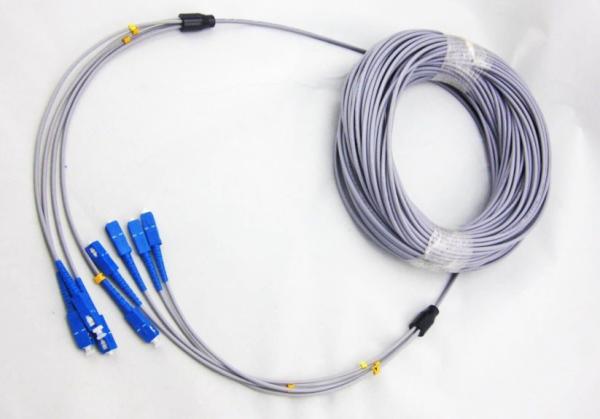

FTTA (Fiber To The Antenna) PATCH CORD With PDLC

Advantage

l Factory terminated, cost effective and stable performance

l IP67 Water proof for hash environment

l Standard LC connectors, compatible IEC standard

l Waterproof and anti dust protection for harsh environment application

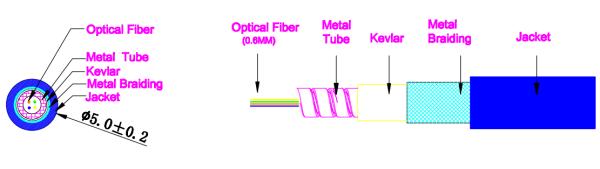

Overview

E-link offers fiber optic PDLC patch cord as a connectivity solution in Fiber To The Antenna, industrial or

other harsh environment. The patch cords are factory pre-terminated with duplex LC connectors, and he

outer housing with metal protective device.

The connecting is safe and reliable. Also have the functions of waterproof, dustproof. This patch cords

widely used in FTTA, Base station, and the outdoor waterproof condition.

Technical Indexes

ITEM

PARAMETER

Connector type

LC/UPC, SC/UPC, FC/UPC, ST/UPC.

LC/APC, SC/APC, FC/APC, ST/APC

Insertion Loss

<=0.2db

<=0.3db

Return Loss

>=50db

>=60db

Fiber mode

Single-mode/ Multi-mode, G.652.D

Operating wavelength

1310, 1550nm

Test wavelength

1310,1550nm

Repeatability

<=0.1

Interchangeability

<=0.2dB

Durability

<=0.2dB

Fiber Length

1m, 2m….. any length optional.

Length and tolerance

10cm

Operating Temperature

-40C ~ +85C

Storage Temperature

-40C ~ +85C

Application

l Fiber To The Antenna (FTTA)

l 3G, 4G, 5G

l Industrial environment

l Far transmission connection in base station

l Outdoor harsh environment
