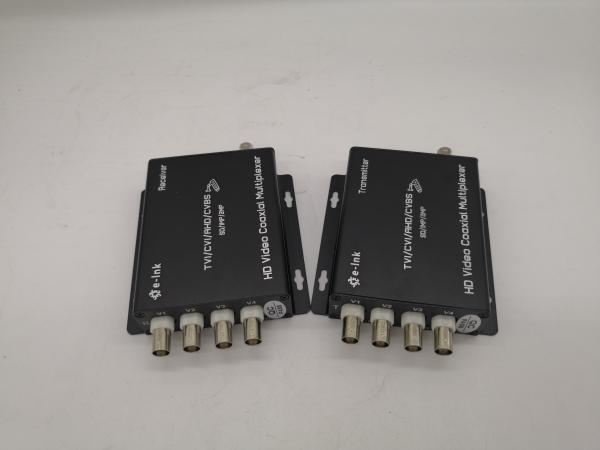

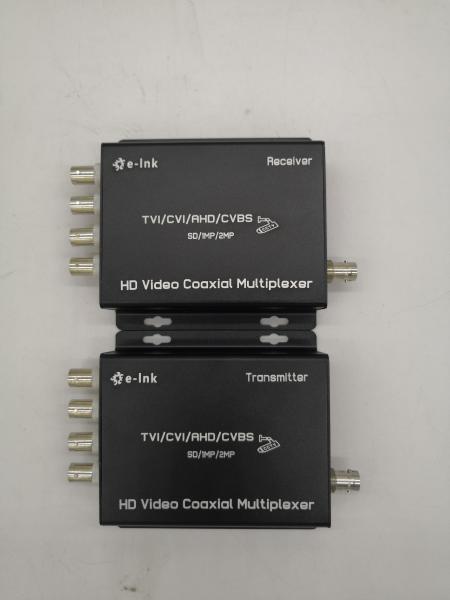

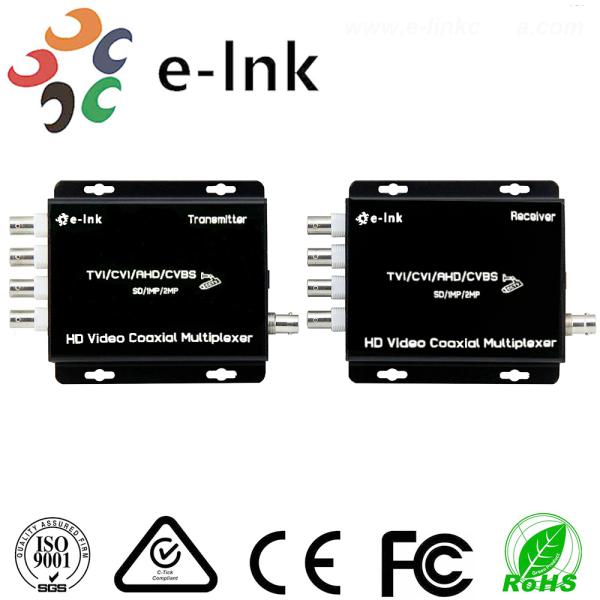

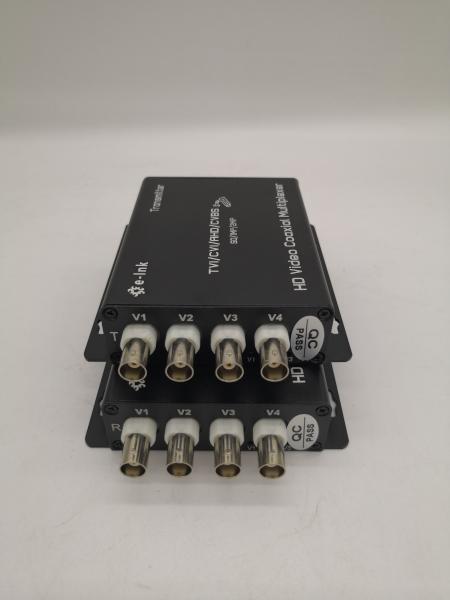

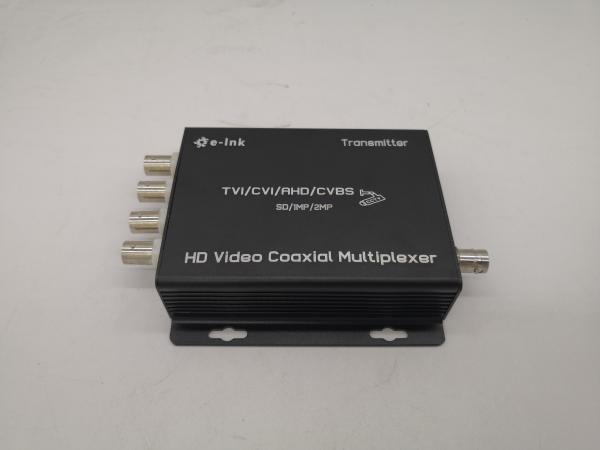

4 CH CVI/AHD/TVI HD/Coaxial Multiplexer
4 CH CVI/AHD/TVI HD/Coaxial Multiplexer
4 CH CVI/AHD/TVI HD/Coaxial Multiplexer
4 CH CVI/AHD/TVI HD/Coaxial Multiplexer
4 CH CVI/AHD/TVI HD/Coaxial Multiplexer
4 CH CVI/AHD/TVI HD/Coaxial Multiplexer
4 CH CVI/AHD/TVI HD/Coaxial Multiplexer
4 CH CVI/AHD/TVI HD/Coaxial Multiplexer
4 CH CVI/AHD/TVI HD/Coaxial Multiplexer
4 CH CVI/AHD/TVI HD/Coaxial Multiplexer
4 CH CVI/AHD/TVI HD/Coaxial Multiplexer
4 CH CVI/AHD/TVI HD/Coaxial Multiplexer
4 CH CVI/AHD/TVI HD/Coaxial Multiplexer
4 CH CVI/AHD/TVI HD/Coaxial Multiplexer
Specifications
Brand Name :
E-link
Model Number :
LNK-MVHD-104ACT
Certification :
ISO9001, CE, FCC, RoHS
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiated
Payment Terms :
T/T,PayPal
Supply Ability :
1000pcs/mouth
Delivery Time :
5-12working days
Packaging Details :
standard export package
Description

4 CH CVI/AHD/TVI HD/Coaxial Multiplexer

4 CH CVI/AHD/TVI HD/Coaxial Multiplexer Advantage

► 4 Channel CVI/AHD/TVI video signal for camera over 1 coaxial cable

► Designed according to projects with minimum installation volume requirement

► Long distance transmission up to 100m

► Frequency Division Multiplexing, with all CVI/AHD/TVI video and data transmission real-time and all images high-definition and non-delay.

► Non-debug, adaptive: as long as the transmission distance range, the device will automatically adjust their targets,

► One coaxial cable, no extra cable, which save infrastructure cost,(cost saving 25~30%)

► Maintaining high quality CVI/AHD/TVI video & anti-interference immunity

► Easy installation with BNC harness

4 CH CVI/AHD/TVI HD/Coaxial Multiplexer Overview

LNK-MVHD-104 series Coaxial HD video standard on the market at present is divided into three kinds of HD CVI Dahua company standards, Xiongmai Technology AHD and Hikvision TVI standards. Its resolution is divided into 1 million pixels (720P), 1.3 million pixels (960P), and 2 million pixels (1080P), and other three kinds of the resolution of the video image.

This product uses special compression modulation technology, on the front end (transmitter) will 4-Ch CVI/AHD/TVI HD video camera is compressed, made into digital signal in coaxial cable transmission, the back-end (receiver) through demodulation, reductive into 4 HD signals after decompression, for HD DVR (TVI/CVI/AHD) or matrix is used. This series of products can be divided into the 100 meters, such as the transmission distance and different models.

4 CH CVI/AHD/TVI HD/Coaxial Multiplexer Technical Indexes

Model

Signal Mode

Camera Mode

SYV75-3

LNK-MVHD 104ACT

4 CH

AHD/CVI/TVI: 720P/960P/1080P

≦100M

2 CH CVI/AHD/TVI HD/Coaxial Multiplexer Ordering Information

Item

Description

LNK-MVHD-104ACT

4-Ch AHD/CVI/TVI video converter transmitter and receiver for 2MP camera by one coaxial cable Transmission distance≦100M, support: AHD/CVI/TVI (720P.960P.1080P)

LNK-MVHD-4V1D

4-Ch AHD/CVI/TVI video converter transmitter and receiver for 2MP camera by one coaxial cable Transmission distance≦100M, Support: AHD/CVI/TVI(720P.960P 1080P) + RS485 Data
