Specifications
Brand Name :
E-link
Model Number :
LNK-R2300G
Certification :
CE
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability :
100000PCS/Month
Delivery Time :
7-10 working days
Packaging Details :
Industrial PoE Switch Standard Carton Packaging
Dimension :
26mm(H)*96mm(W)*120mm(D)/ (height * width * depth) (external power)
Operating Temperature: :
-10~55℃
Conversion means :
Media conversion
Power consumption :
5W
Conversion Mode :
Medium conversion
Description

1000M Ring Type Fiber Media Converter

Product Advantages

l Provide two 10/100M/1000M fiber ports, three 10/100/1000M RJ45 ports

l Support Gigabit fiber Hi per-Ring network

l Support 128 ring network nodes

l Support redundant ring network protection (switching time<50ms, RSTP/STP

l Support WEB management, RSR (Rapid Super Ring)

l Working temperature is -10℃～70℃

l Supporting multiple types of fiber ports, such as dual-fiber multi-mode, dual-fiber single-mode and single-fiber single-mode, to satisfy the extended requirements of users

Overview

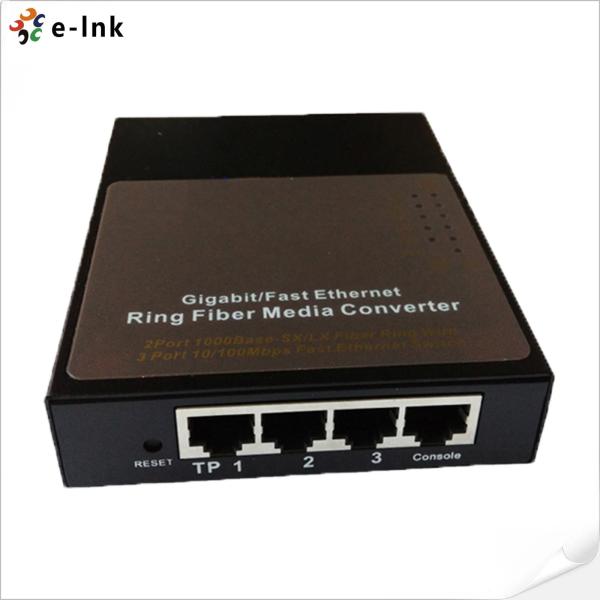

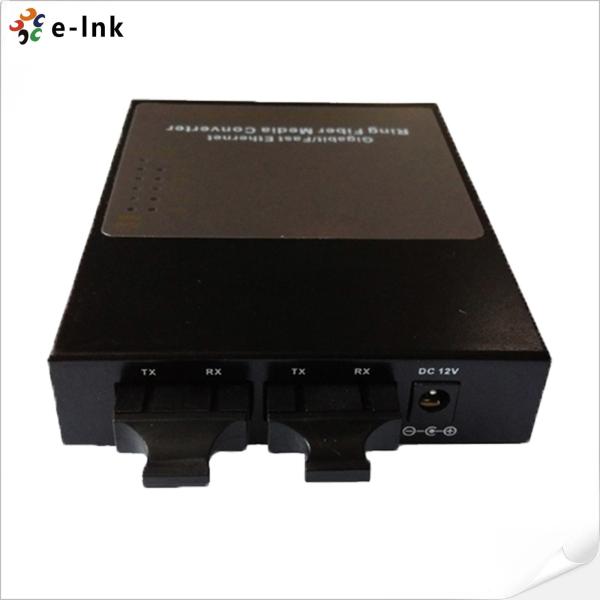

E-link LNK-R2300G series Ring type Media Converter is designed to meet requirements of multi fiber access network. It provides 2 1000BASE-SX/LX fiber ports and 3 10/100/1000BASE-TX RJ45 ports, and one Console port, which provide not only point to point network connection, but also point to multi-point chain network. It support WEB management and RSR (Rapid Super Ring) and has extend the transmission distance of a network from 100m over copper wires to 120Km (single-mode full duplex) and is applied to highway network system, mine communication system and other chain multi-point networks.

Technical Indexes


Parameters

Specifications

Standard

IEEE802.3 10Base-T Ethernet,IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit Ethernet, IEEE802.1d Spanning Tree

Wavelength

850nm/1310nm/1550nm

Transmission distance

Dual-fiber multi-mode: 220m(optical fiber size 62.5/125μm)/550m(optical fiber size 50/125μm)

Dual-fiber single-mode: 10/20/40/60/80/100/120Km

Single-fiber single-mode: 10/20/40/60/80Km

Category-5 twisted pairs : 100m

Port

3 RJ45 port: Connected to STP/UTP category-5 twisted pairs

2 fiber port: Multi-mode – SC (fiber size: 50,62.5/125μm)
Single mode – SC/FC fiber port (fiber size: 9/125μm)

Single-fiber single-mode – SC/FC fiber port (fiber size: 9/125μm)

Conversion Mode

Medium conversion

Delay

<10us

Bit error rate

<1/1000000000

MTBF

100,000 hours

LED

POWER(PWR),FX LINK1/2(fiber link/action),TP LINK1000 1/2/3(twisted pair link/action 1000M),TP LINK/ACT1/2/3 (twisted pair packet forwarding link/action)

Power

DC 12V

Power consumption

5W

Operating temperature

-10~55℃

Operating humidity

5%~90%

Storage temperature

-40~70℃

Storage humidity

5%~90% (non-condensing)

Dimensions

26mm(H)*96mm(W)*120mm(D)/ (height * width * depth) (external power)

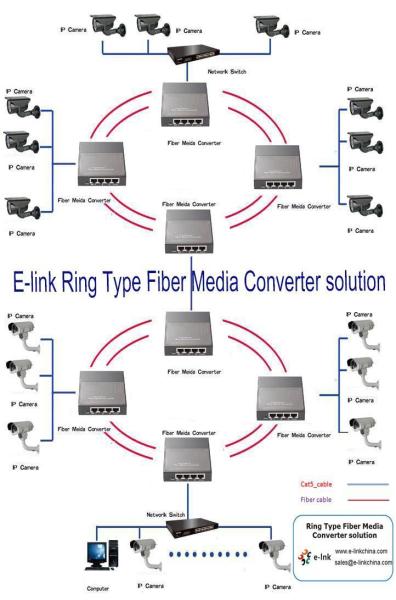

Application
