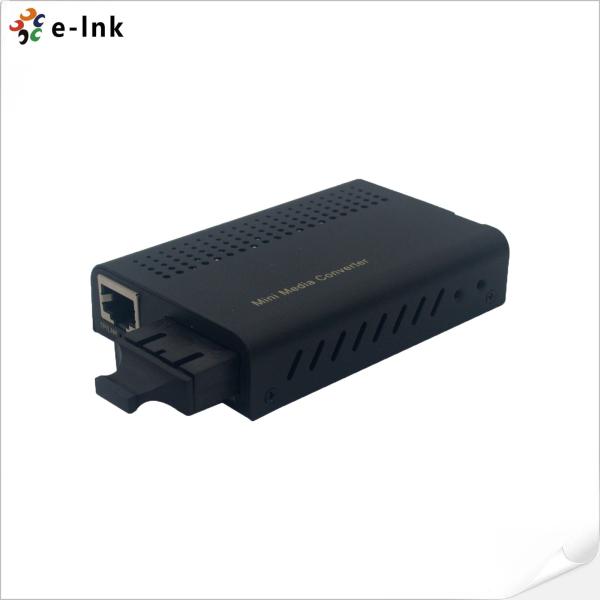

Mini 10/100/1000Base-TX to 1000Base-FX Fiber Media Converter
Mini 10/100/1000Base-TX to 1000Base-FX Fiber Media Converter
Mini 10/100/1000Base-TX to 1000Base-FX Fiber Media Converter
Mini 10/100/1000Base-TX to 1000Base-FX Fiber Media Converter
Mini 10/100/1000Base-TX to 1000Base-FX Fiber Media Converter
Mini 10/100/1000Base-TX to 1000Base-FX Fiber Media Converter
Mini 10/100/1000Base-TX to 1000Base-FX Fiber Media Converter
Mini 10/100/1000Base-TX to 1000Base-FX Fiber Media Converter
Mini 10/100/1000Base-TX to 1000Base-FX Fiber Media Converter
Mini 10/100/1000Base-TX to 1000Base-FX Fiber Media Converter
Specifications
Brand Name :
E-link
Model Number :
LNK-MN-1000MC-SC
Certification :
CE
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability :
100000PCS/Month
Delivery Time :
7-10 working days
Packaging Details :
Industrial PoE Switch Standard Carton Packaging
Dimension :
58mm (W)×20mm (H)×90 mm (L)
Operating Temperature: :
0~50ºC
Input voltage :
DC 5V~12V
Power consumption :
<3W
Weight :
46g
Description

Mini 10/100/1000Base-TX to 1000Base-FX Fiber Media Converter

Product Advantages

· 10/100/1000Base-TX UTP to 1000Base-FX fiber media converter

· Support IEEE802.3U, IEEE802.3z, 1000Base-TX/FX standards

· SC Fiber Port

· DIP switch to set different configuration

· LFP (Link Fault Pass-through) support

· Support jumbo frame

· Compact package size

Overview

The Mini 10/100/1000Base-TX to 1000Base-FX (also can be forced to 100Base-FX) media converter is fully compliant with IEEE802.3U, IEEE802.3z 1000Base-TX/FX protocols. The converter can support auto MDI-MDIX function, flow control for full and half duplex operation, etc.

Technical Indexes


Parameter

Specifications

Access mode

10/100/1000Mbps

Standard

IEEE802.3, IEEE802.3u,IEEE802.3Z,IEEE802.3x

1000Base-FX or 100Base-FX

Wavelength

850nm/1310nm/1550nm

Transmission distance

Multi-mode:
62.5/125μm fiber: 220m;
50/125μm fiber: 550m

single mode:
20/40/60/80/100 km;

Cat-5 twisted pairs: 100m

Conversion means

Store and Forward mode or Cut-Through mode

Flow control

Full duplex: flow control;

Half duplex: back pressure

Input voltage

DC 5V~12V

Power consume

<3W

Operating temperature

0~50ºC

Operating humidity

5%~90%

Maintaining temperature

-40~70ºC

Maintaining humidity

5% ~ 90% non-condensing

Dimensions

58mm (W)×20mm (H)×90 mm (L)


Ordering information

Item

Description

LNK-MN-1000MC-SC

Mini 10/100/1000Base-TX to 1000Base-SX Media Converter, Multi mode, 850nm, SC, 550m, standalone

LNK-MN-1000MC-SC-20

Mini 10/100/1000Base-TX to 1000Base-FX Media Converter, Single Mode, 1310nm, SC, 20km, standalone
