Industrial 10/100/1000Mbps 802.3at PoE+ Splitter Output Voltage 24VDC
Industrial 10/100/1000Mbps 802.3at PoE+ Splitter Output Voltage 24VDC
Industrial 10/100/1000Mbps 802.3at PoE+ Splitter Output Voltage 24VDC
Industrial 10/100/1000Mbps 802.3at PoE+ Splitter Output Voltage 24VDC
Industrial 10/100/1000Mbps 802.3at PoE+ Splitter Output Voltage 24VDC
Industrial 10/100/1000Mbps 802.3at PoE+ Splitter Output Voltage 24VDC
Industrial 10/100/1000Mbps 802.3at PoE+ Splitter Output Voltage 24VDC
Industrial 10/100/1000Mbps 802.3at PoE+ Splitter Output Voltage 24VDC
Industrial 10/100/1000Mbps 802.3at PoE+ Splitter Output Voltage 24VDC
Industrial 10/100/1000Mbps 802.3at PoE+ Splitter Output Voltage 24VDC
Industrial 10/100/1000Mbps 802.3at PoE+ Splitter Output Voltage 24VDC
Industrial 10/100/1000Mbps 802.3at PoE+ Splitter Output Voltage 24VDC
Specifications
Brand Name :
E-link
Model Number :
LNK-INS301-24V
Certification :
CE, FCC, RoHS，ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiated
Payment Terms :
T/T,PayPal
Supply Ability :
1000pcs/mouth
Delivery Time :
3-7working days
Packaging Details :
standard export package
Operating Temperature: :
-40°C to 80°C (-40°F to 176°F)
Storage Temperature: :
-40°C to 85°C (-40°F to 185°F)
Power Output: :
20W 24VDC (Terminal Block)
POE: :
PoE Power IN
Weight: :
0.25Kg
Description

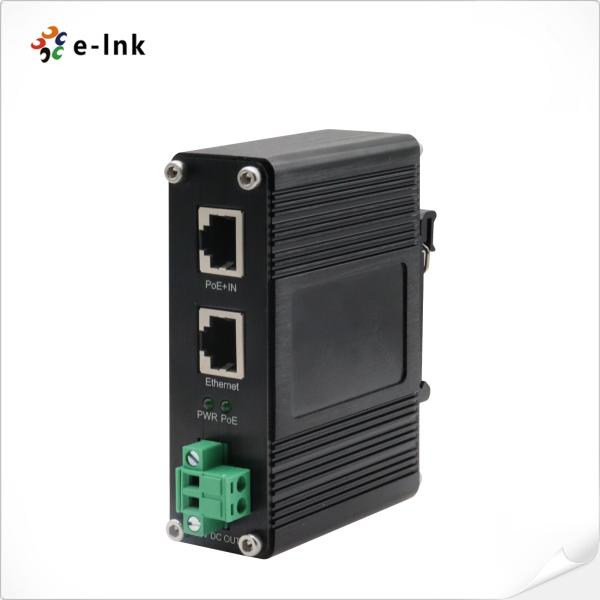

Industrial 10/100/1000Mbps 802.3at PoE+ Splitter Output Voltage 24VDC

Advantage

► Splits power and data from PoE Input

► One 24VDC Output (2-pin Terminal Block)

► Support IEEE802.3af/at PoE

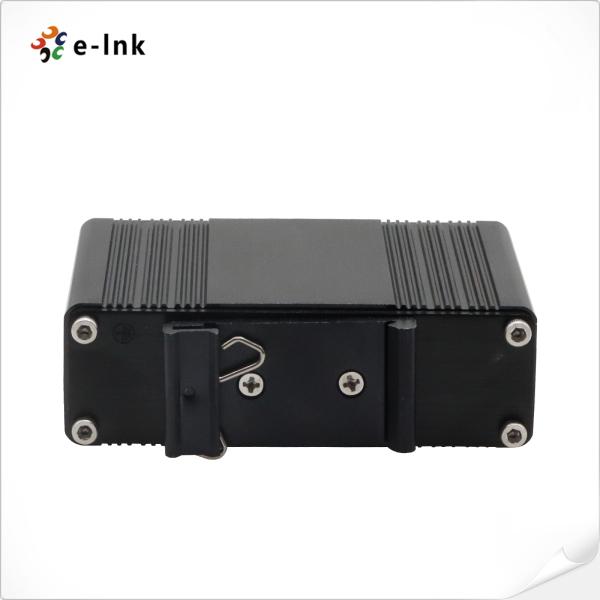

► Support DIN-Rail & Wall-mount installation

► Extensive LED indicators for PoE diagnostics

► Wide operating temperature -40 ~ 80°C

Overview

LNK-INS301-24V series is an Industrial Grade, Gigabit Ethernet, PoE Splitter, designed to deliver data,

via RJ-45 Ethernet connector, and electrical power, via screw terminal block, to non-PoE devices. This

device saves the high cost of running separate electrical service to edge devices.

Technical Indexes

Power over Ethernet

PoE Standard:

IEEE 802.3af/at Power over Ethernet

Number of devices that can be powered:

1 (DC24V)

(Vary on device’s power requirement; cannot be over 20 watts.)

Environmental

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF:

>200,000hrs

Electrical and Mechanical

Power Output:

20W 24VDC (Terminal Block)

Power Consumption:

25W Max.

LED Indicators:

PWR:

24VDC Power OUT

POE:

PoE Power IN

Dimensions (WxDxH):

95 x 70 x 30 mm

Weight:

0.25Kg

Casing:

Aluminum Case

Mounting Options:

DIN-Rail / Wall-mount

Application

Industrial 10/100/1000Mbps 802.3at PoE+ Splitter Output Voltage 24VDC

Ordering Information

Model

Description

LNK-INS301-24V

Industrial IEEE802.3at Gigabit PoE Splitter Output Voltage 24VDC, maximum output of 20W at 24VDC, Support DIN-Rail mounting and Wall mounting installation, -40 to 80°C operating temperature

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
