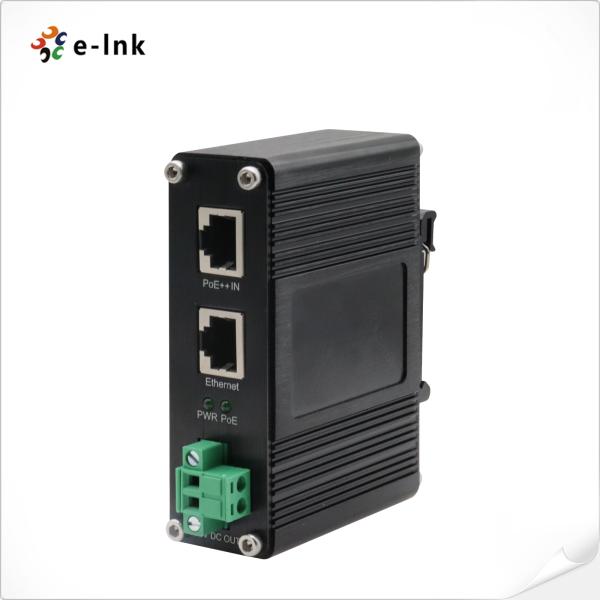

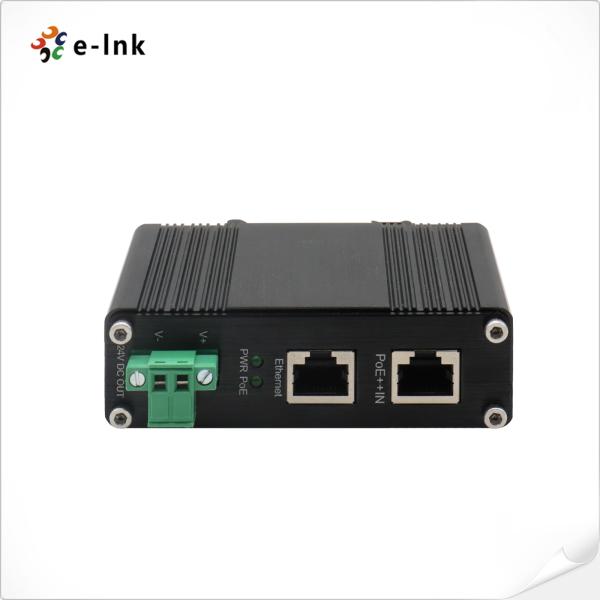

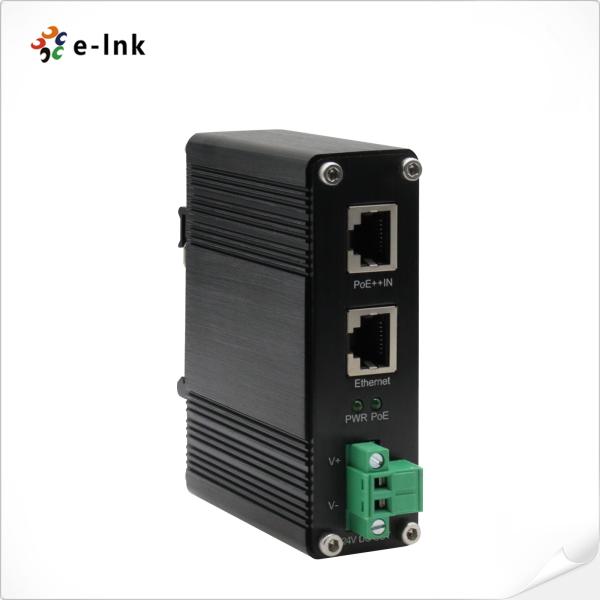

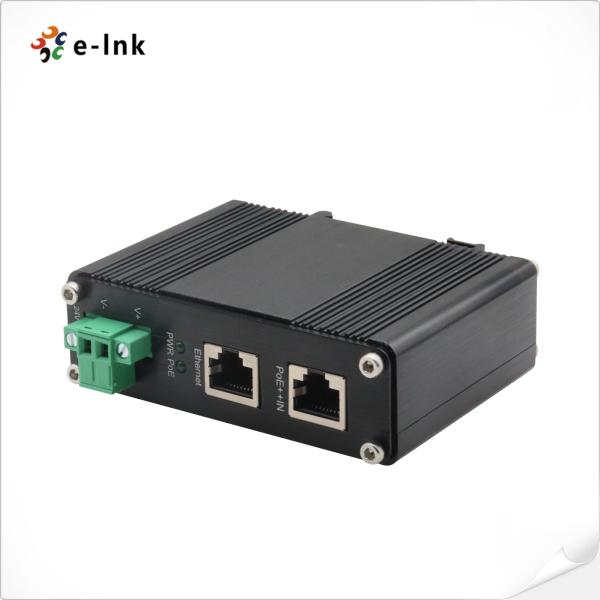

Industrial 10/100/1000Mbps 802.3bt PoE++ Splitter Output Voltage 24VDC
Industrial 10/100/1000Mbps 802.3bt PoE++ Splitter Output Voltage 24VDC
Industrial 10/100/1000Mbps 802.3bt PoE++ Splitter Output Voltage 24VDC
Industrial 10/100/1000Mbps 802.3bt PoE++ Splitter Output Voltage 24VDC
Industrial 10/100/1000Mbps 802.3bt PoE++ Splitter Output Voltage 24VDC
Industrial 10/100/1000Mbps 802.3bt PoE++ Splitter Output Voltage 24VDC
Industrial 10/100/1000Mbps 802.3bt PoE++ Splitter Output Voltage 24VDC
Industrial 10/100/1000Mbps 802.3bt PoE++ Splitter Output Voltage 24VDC
Industrial 10/100/1000Mbps 802.3bt PoE++ Splitter Output Voltage 24VDC
Industrial 10/100/1000Mbps 802.3bt PoE++ Splitter Output Voltage 24VDC
Industrial 10/100/1000Mbps 802.3bt PoE++ Splitter Output Voltage 24VDC
Industrial 10/100/1000Mbps 802.3bt PoE++ Splitter Output Voltage 24VDC
Specifications
Brand Name :
E-link
Model Number :
LNK-INS901-24V
Certification :
CE, FCC, RoHS，ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiated
Payment Terms :
T/T,PayPal
Supply Ability :
1000pcs/mouth
Delivery Time :
3-7working days
Packaging Details :
standard export package
Operating Temperature: :
-40°C to 80°C (-40°F to 176°F)
Storage Temperature: :
-40°C to 85°C (-40°F to 185°F)
Power Output: :
40W 24VDC (Terminal Block)
POE: :
PoE Power IN
Weight: :
0.25Kg
Description

Industrial 10/100/1000Mbps 802.3bt PoE++ Splitter Output Voltage 24VDC

Advantage

► One RJ-45 PoE Port (Data & Power In)

► One RJ-45 Port (Data Out)

► Support IEEE802.3af/at/bt PoE++

► Support 10/100/1000Base-T

► Distance up to 100 meters

► Support DIN-Rail & Wall-mount installation

► Wide operating temperature -40 ~ 80°C

Overview

LNK-INS901-24V series is an Industrial Grade, Gigabit Ethernet, PoE Splitter, designed to deliver data,

via RJ-45 Ethernet connector, and electrical power, via screw terminal block, to non-PoE devices. This

device saves the high cost of running separate electrical service to edge devices.

The LNK-INS901-24V acts as PD equipment and can be powered by standard PoE IEEE802.3af/at/bt

PSE (Power Source Equipment) switches or work when paired with LNK-INJ-48-95W PoE Injectors.

The data transmission, up to Gigabit speeds, with power output voltages of 24VDC, run simultaneously

up to the Ethernet limit of 100 meters. Simple settings of the LNK-INS901-24V, make it a plug and play

device, requiring no tools or software configuration, and provides ease of use, with flexible installation

and high reliability.

Technical Indexes

Power over Ethernet

PoE Standard:

IEEE 802.3af/at/bt Power over Ethernet

Number of devices that can be powered:

1 (24VDC)

(Vary on device’s power requirement; cannot be over 36 watts.)

Environmental

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF:

>200,000hrs

Electrical and Mechanical

Power Output:

40W 24VDC (Terminal Block)

Power Consumption:

45W Max.

LED Indicators:

PWR:

24VDC Power OUT

POE:

PoE Power IN

Dimensions (WxDxH):

95 x 70 x 30 mm

Weight:

0.25Kg

Casing:

Aluminum Case

Mounting Options:

DIN-Rail / Wall-mount

Application

Industrial 10/100/1000Mbps 802.3bt PoE++ Splitter Output Voltage 24VDC

Ordering Information

Model

Description

LNK-INS901-24V

Industrial IEEE802.3bt Gigabit PoE Splitter Output Voltage 24VDC, maximum output of 40W at 24VDC, Support DIN-Rail mounting and Wall mounting installation, -40 to 80°C operating temperature

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
