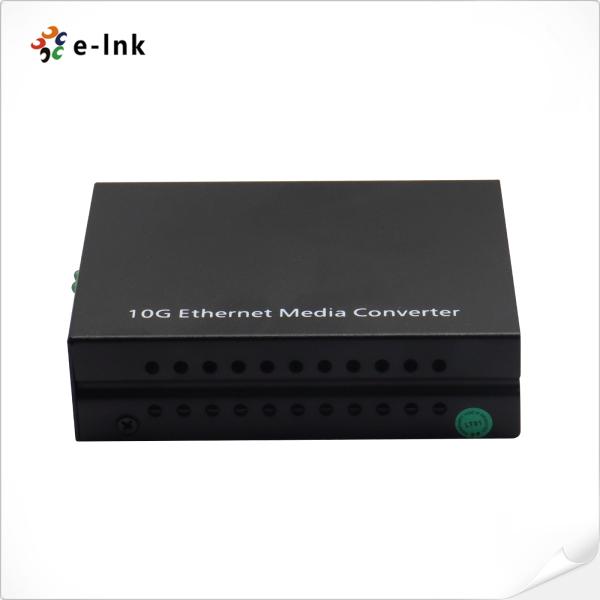

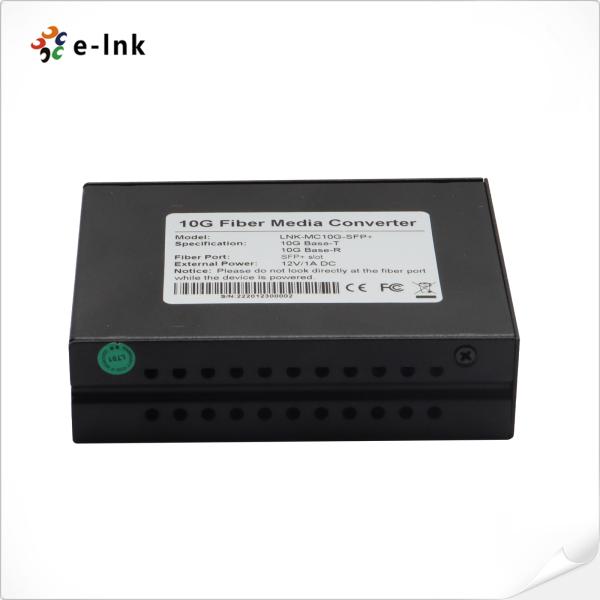

10G Base-T to Base-R Media Converter - SFP+ Jumbo Frame Plug & Play

Product Overview

The E-link 10G Base-T to 10G Base-R Media Converter enables seamless 10Gbps network conversion between copper (10GBase-T RJ45) and fiber optic (10GBase-R SFP+) connections. Designed with an advanced 10G Ethernet PHY chip, this converter ensures low-latency, high-throughput data transmission for enterprise, data center, and telecom networks. Its flexible deployment options (standalone or rack-mounted) make it ideal for central wiring closets or edge network installations.

Key Features & Benefits

✅ Dual-Media Support

• 10GBase-T (RJ45): Up to 100m over Cat6a/Cat7

• 10GBase-R (SFP+): Supports single-mode/multi-mode fiber (up to 80km)

✅ High-Performance Conversion

• 10Gbps full-duplex throughput

• IEEE 802.3an/ak compliant

• Jumbo frame support (9KB+)

✅ Flexible Deployment

• Standalone unit for edge networks

• Slide-in module for 19" converter rack chassis

• Hot-swappable SFP+ slots

✅ Enterprise-Grade Reliability

• Auto-negotiation for plug-and-play operation

• Link fault pass-through (LFP)

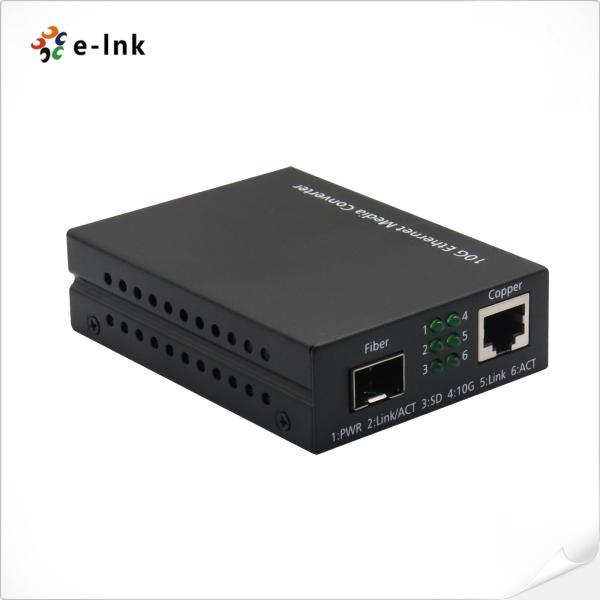

• LED indicators for real-time monitoring

Technical Compliance

• Standards: IEEE 802.3an/ak, 802.3ae

• Certifications: CE, FCC, RoHS

• Power: 12V DC or 48V PoE (optional)

Technical Features

1. High-Performance Data Transmission

• Jumbo Frame Support (9KB+) for efficient large data transfers

• Transparent Transport with ultra-low latency (<1μs)

• 10Gbps Full-Duplex throughput (IEEE 802.3an/ak compliant)

2. Flexible & Reliable Connectivity

• Hot-Pluggable SFP+ Slots for easy fiber module swaps

• 10GBase-T (RJ45): Up to 100m over Cat6a/7

• 10GBase-R (SFP+): Supports single-mode/multi-mode fiber (up to 80km)

3. User-Friendly Design

• Plug-and-Play operation (auto-negotiation)

• Full LED Status Display for real-time monitoring (power, link, activity)

• Compact, Portable Case for space-saving deployments

4. Enterprise-Grade Reliability

• Link Fault Pass-Through (LFP) for network diagnostics

• Wide Operating Temperature for harsh environments

• Dual Power Options: 12V DC or 48V PoE (optional)

5. Easy Installation

• Standalone or Rack-Mountable (fits 19" chassis)

• Tool-less Setup for quick deployment

• Wall-Mount or Desktop Placement

Professional Application Scenarios

1. Data Center & Cloud Infrastructure

• Leaf-spine network interconnects between 10GBase-T servers and fiber backbones

• Cross-rack connectivity in hyper-converged infrastructure (HCI) environments

• SAN/NAS extensions requiring low-latency copper-to-fiber conversion

2. Enterprise Network Upgrades

• Legacy Cat6a to fiber migration in campus networks

• Multi-building connectivity with 10GBase-R single-mode fiber

• IP-PBX system integrations with QoS preservation

3. Telecom & ISP Deployments

• FTTx aggregation points (OLT to ONU connectivity)

• 5G fronthaul backhaul termination

• Carrier Ethernet service delivery (MEF 3.0 compliant)

4. Industrial & Smart City Networks

• Factory automation backbones (IEC 61850-3 compliant)

• Traffic management systems with 10G throughput

• Smart grid communications between substations

Technical Indexs

Orrdering Information
