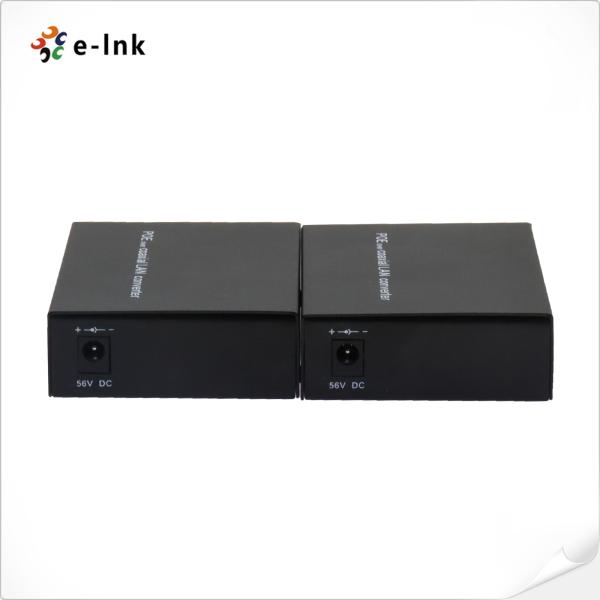

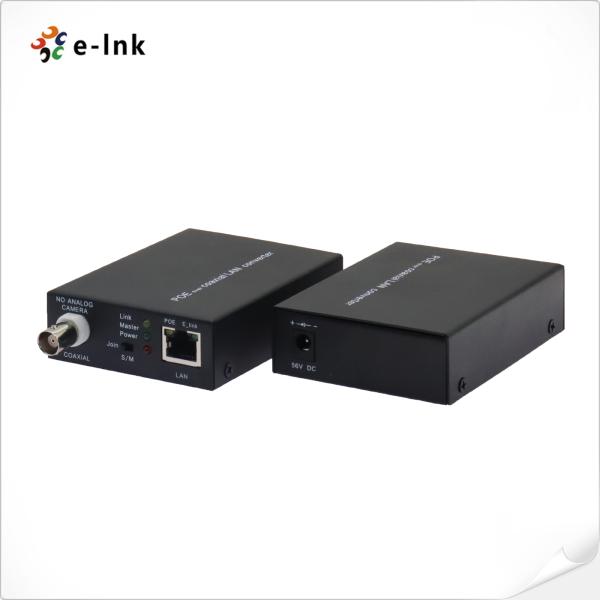

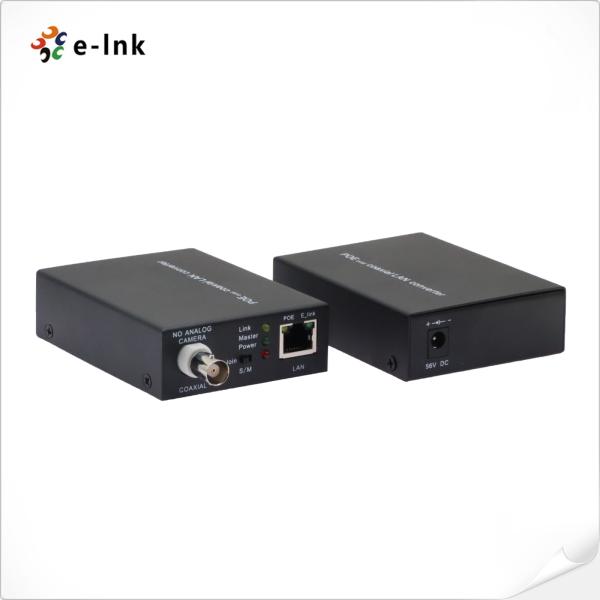

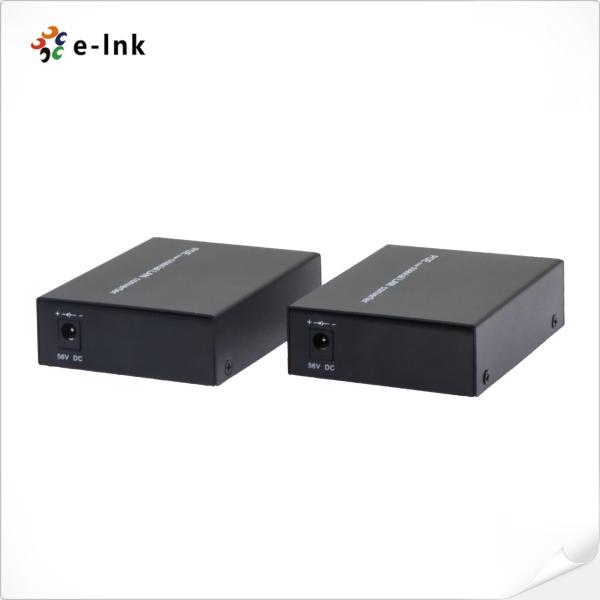

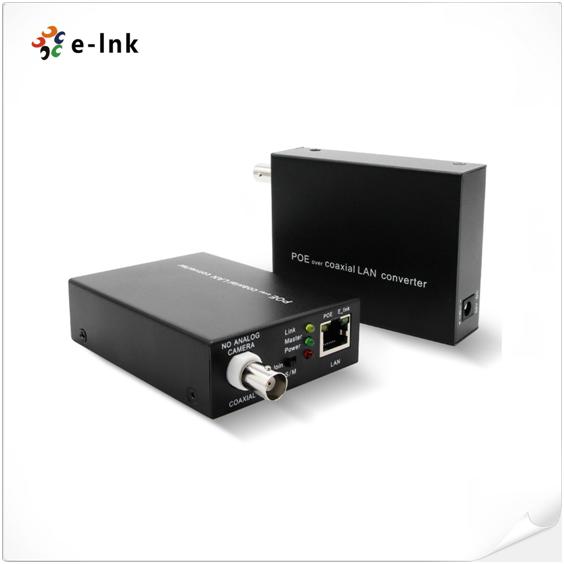

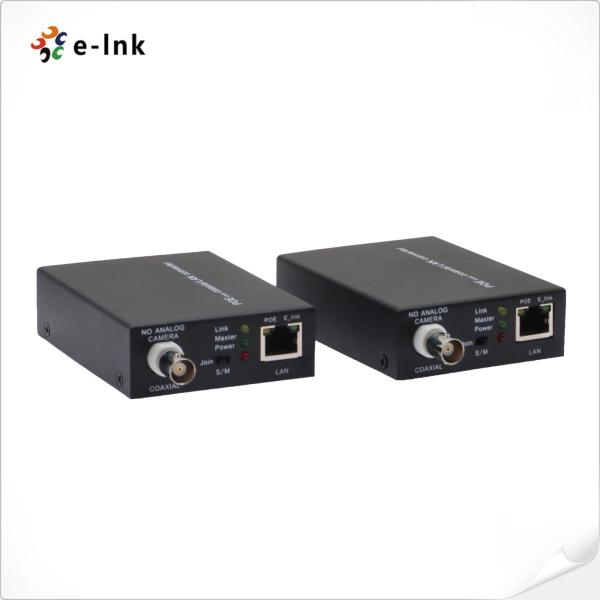

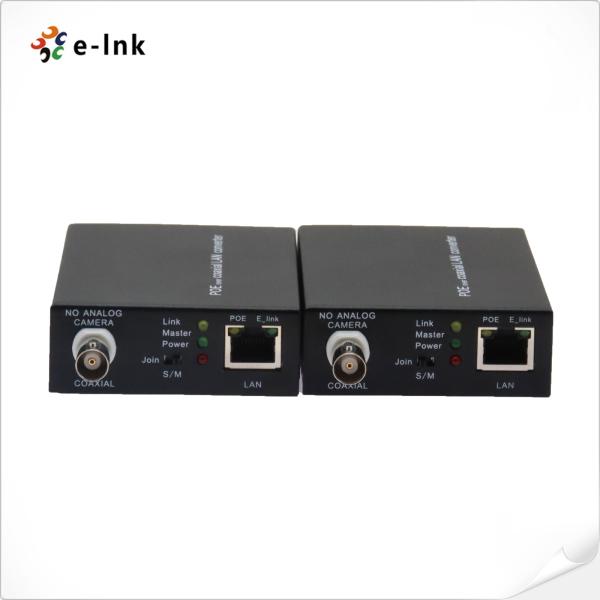

LNK-ECP1100 Series Ethernet over Coax Extender
LNK-ECP1100 Series Ethernet over Coax Extender
LNK-ECP1100 Series Ethernet over Coax Extender
LNK-ECP1100 Series Ethernet over Coax Extender
LNK-ECP1100 Series Ethernet over Coax Extender
LNK-ECP1100 Series Ethernet over Coax Extender
LNK-ECP1100 Series Ethernet over Coax Extender
LNK-ECP1100 Series Ethernet over Coax Extender
LNK-ECP1100 Series Ethernet over Coax Extender
LNK-ECP1100 Series Ethernet over Coax Extender
LNK-ECP1100 Series Ethernet over Coax Extender
LNK-ECP1100 Series Ethernet over Coax Extender
LNK-ECP1100 Series Ethernet over Coax Extender
LNK-ECP1100 Series Ethernet over Coax Extender
LNK-ECP1100 Series Ethernet over Coax Extender
LNK-ECP1100 Series Ethernet over Coax Extender
Specifications
Brand Name :
E-link
Model Number :
LNK-EC1100
Certification :
CE, RoHS, FCC, ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability :
100000PCS/Month
Delivery Time :
7-10 working days
Packaging Details :
Industrial PoE Switch Standard Carton Packaging
Weight :
195g
Dimension (mm) :
94.5x71.5x26.5(mm)
Maximum Power :
Up to 30W
Operating Temperature: :
-20~+70°C
Description

4U Video Converter Rack

Product Advantages

  • · Transmit 10/100Base-TX Full Duplex Ethernet up to 300m over coaxial cable.
  • · 56V DC is distributed over the coax to all connected equipment.
  • · Powers PoE, PoE+, or High-Power PoE cameras (or other PoE devices), up to 30 watts.
  • · One EoC transceiver at the network-end can support multiple remote transceivers/IP cameras by using analog BNC splitter.
  • · Easy configuration, no PC required

Overview

The LNK-ECP1100 Ethernet Over Coax Extender with PoE+ is a new designed Ethernet Extender Device. This Device is designed to extend Ethernet Network signal and Power over existing coaxial cable, and able to live transmit multi-channel Power + Network date signal, the Max distance is up to 300meters. Network max baud-rate is up to 100Mbps. It has excellent lightning protection and Anti-interference.

Technical Indexes

Name

Model/Type

Specification

Product

Model No.

LNK-ECP1100(PoE) and LNK-EC1100(Non-PoE)

Coaxial-line

Standards

Base on up-to-date advanced IEEEP1901 for Ethernet over coax (EOC) Application with raw data

Rates up to 90Mbps

Connector

Coaxial BNC

Line Rates

Phy Rate

Maximum Link Rates 90Mbps

Ethernet Interface

Standards

SO/IEC802.3 (ANSI/IEEE802.3i) 10BASE-T

Ethernet

IEEE802.3u, 100BASE-TX, Fast Ethernet

IEEE802.3ab 100BASE-T

PHY Connection

KSZ8041,10BASE-T,100BASE-T,With Auto-detect

Auto MDIX

Connector

RJ-45 Connector for 10BASE-T, 100BASE-TX

Ethernet Interface

LED Indicators

RJ45-DATA

Data Link/Green

RJ45-PoE

PoE On/Yellow

PWR

56V DC Link/Red

BNC Join

CS-Product link/Orange

Odering Information

Model

Description

LNK-ECP1100

Ethernet over Coaxial Converter with PoE, 300m transmission

distance, including Master unit and Slave unit.

(not including power supply adapter)

LNK-EC1100

Ethernet over Coaxial Converter, 1000m transmission distance,

Including Master unit and Slave unit.

(not including power supply adapter)
