Specifications
Brand Name :
E-link
Model Number :
LNK-IMC208SG-SFP
Certification :
CE
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability :
100000PCS/Month
Delivery Time :
7-10 working days
Packaging Details :
Industrial PoE Switch Standard Carton Packaging
Access mode :
10/100/1000Mbps Gigabit Ethernet
Fiber Port :
1 SC Fiber Port, 100Base-FX or 1000Base-X dual mode (auto detection)
Wavelength :
850nm/1310nm/1550nm
Dimensions (W x D x H) :
62 x 44 x 18 mm
LFP :
Not Support
Power supply :
DC 5V (Type-C)
Description

Micro type 10/100/1000Base-Tx to 100/1000Base-Fx Ethernet Media Converter

Advantages

► 1-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

► 1 SC Port, 100Base-FX or 1000Base-X dual mode (auto detection)

► Support 9k jumbo frame

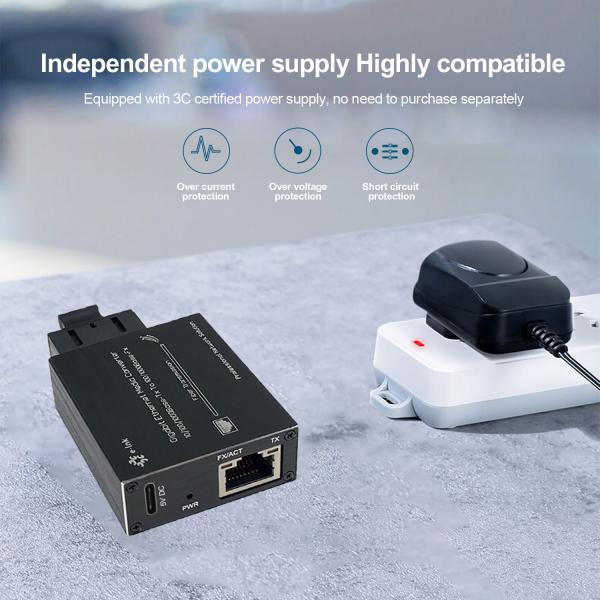

► USB-powered for portability, 5VDC power input

► Supporting full-duplex and half-duplex and its auto-sensed

► Micro type design

► Supporting auto-sense of MDI/MDI-X, facilitating system commissioning and installation

► Options in single mode dual fiber, multi-mode dual fiber, and single mode in single fiber


Technical Indexes

Parameter

Specifications

Access mode

10/100/1000Mbps Gigabit Ethernet

Standard

IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet

Fiber Port

1 SC Fiber Port, 100Base-FX or 1000Base-X dual mode (auto detection)

Wavelength

850nm/1310nm/1550nm

Port

One RJ45 port: for connecting with STP/UTP cat5/6 twisted pairs

One optical port: Multi-mode Dual-fiber: SC (50, 62.5/125μm)

Single mode Dual-fiber: SC (9/125μm)

Single mode Single fiber: SC (9/125μm)

Conversion means

Media conversion

LFP

Not Support

Power supply

DC 5V (Type-C)

Power consumption

3W

Maintaining temperature

-40~70ºC

Dimensions (W x D x H)

62 x 44 x 18 mm


Application
Micro type 10/100/1000Base-Tx to 100/1000Base-Fx Ethernet Media Converter
Ordering Information

Model

Description

LNK-M3011

Micro type Media Converter: 10/100/1000Base-T to 100/1000Base-F, demi-monde, 500m, 850nm, SC, standalone, external power adaptor

LNK-M3011-20

Micro type Media Converter: 10/100/1000Base-T to 100/1000Base-F, single mode, 20km, 1310nm, SC, standalone, external power adaptor

LNK-M3011S-20A

Micro type Media Converter: 10/100/1000Base-T to 100/1000Base-F, WDM (single fiber bi-direction), 20km, 1310nm TX/1550nm RX, SC, standalone, external power adaptor

LNK-M3011S-20B

Micro type Media Converter: 10/100/1000Base-T to 100/1000Base-F, WDM (single fiber bi-direction), 20km, 1550nm TX/1310nm RX, SC, standalone, external power adaptor

Overview

LNK-IMC208SG-SFP, a managed industrial network switch, with an 8 ports 10/100/1000Base-TX + 2 port 100/1000Base-X SFP. The switch provides 8 port RJ45 Ethernet ports. The 2-port 100/1000Base-X SFP supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.
