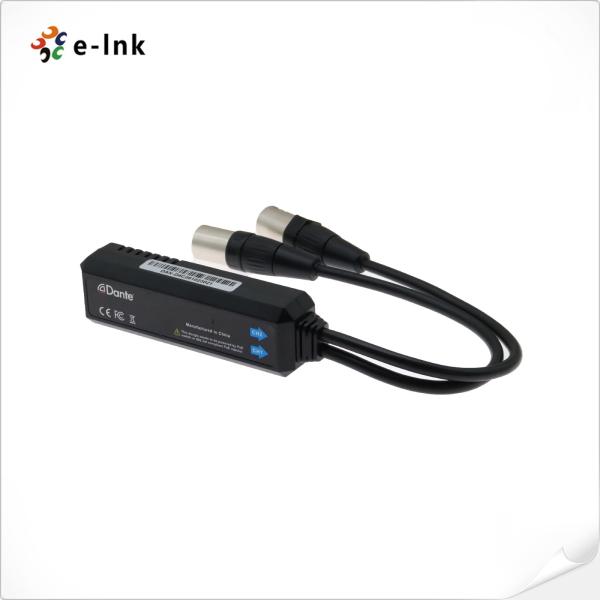

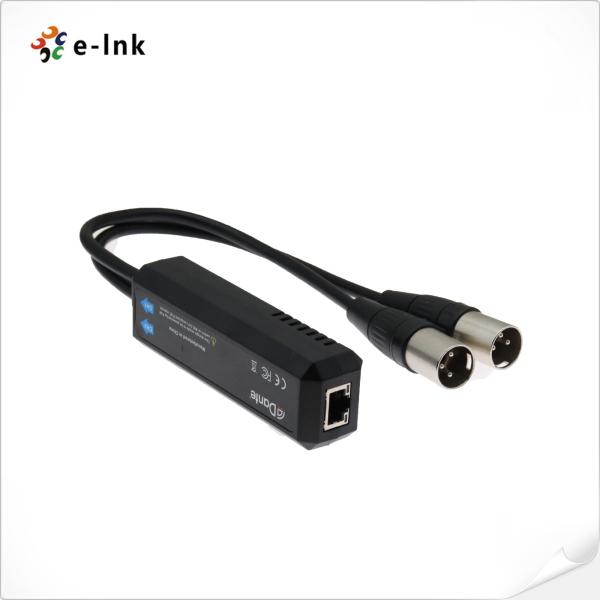

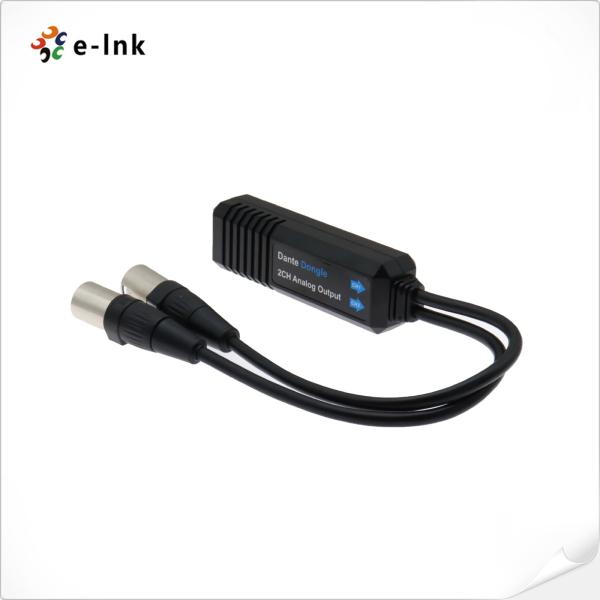

Wholesale Dante 2Ch Analog Output Dongle Converter Audio Adapter
Wholesale Dante 2Ch Analog Output Dongle Converter Audio Adapter
Wholesale Dante 2Ch Analog Output Dongle Converter Audio Adapter
Wholesale Dante 2Ch Analog Output Dongle Converter Audio Adapter
Wholesale Dante 2Ch Analog Output Dongle Converter Audio Adapter
Wholesale Dante 2Ch Analog Output Dongle Converter Audio Adapter
Specifications
Brand Name :
E-link
Model Number :
LNK-DAN-D4
Certification :
CE, ROHS, FCC
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiation
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
5000 Pcs/Month
Delivery Time :
3 working days
Channels of Audio :
2 Channel Analog
Cable length :
30cm
Frequency Response :
20Hz to 20kHz (-/+0.5dB)
Casing :
Plastic casing
Net Weight :
145g
Dimensions :
114 x 30 x 28 mm
Description
Dante 2Ch Analog Output Dongle Converter Adapter

Dante Converter Advantages
  • 0x2 Audio Channels
  • 24-bit audio support
  • Support power via PoE Injector (IEEE802.3af)

Dante Audio Adapter Technical Indexes

Port

RJ45 Port

Network communication port.

Green light on indicates system is ready

Yellow light flash indicates link/data traffic.

When click the "Recognize" button (an eye-shaped symbol) on the Dante controller, Green light will flash to identify the device.

XLR Port

2 x XLR port, connect output device

Audio

Max signal level

+18 dBu

Output Gain

-6 dBu

Frequency Response

20Hz to 20kHz(-/+0.5dB)

Impedance

150 Ohm balanced, 75 Ohm unbalanced

Dynamic Range

>100 dB

Signal to Noise Ratio

>100 dB

THD

<0.01% @+4dBu

Dante

Sample Rate

44.1kHz, 48kHz, 96kHz

Bit Depth

24

Dante Device latency

1,2 or 5ms (configurable using Dante Controller)

Type

Analog 0X2

General

Operation Temperature

-5 to +55℃ (+23° to +131°F)

Storage Temperature

-25 to +70℃ (-13° to +158°F)

Power

802.3af PoE

Power Consumption

2.6W(Max)

Wholesale Dante 2Ch Analog Output Dongle Converter Audio Adapter

Wholesale Dante 2Ch Analog Output Dongle Converter Audio Adapter

2Ch Analog adapter Ordering Information

Model

Description

LNK-DAN-D4

Dante 2Ch Analog Output Dongle Converter
