Mini 10/100Base-TX to 100Base-SFP Media Converter
Mini 10/100Base-TX to 100Base-SFP Media Converter
Mini 10/100Base-TX to 100Base-SFP Media Converter
Mini 10/100Base-TX to 100Base-SFP Media Converter
Mini 10/100Base-TX to 100Base-SFP Media Converter
Mini 10/100Base-TX to 100Base-SFP Media Converter
Mini 10/100Base-TX to 100Base-SFP Media Converter
Mini 10/100Base-TX to 100Base-SFP Media Converter
Mini 10/100Base-TX to 100Base-SFP Media Converter
Mini 10/100Base-TX to 100Base-SFP Media Converter
Specifications
Brand Name :
E-link
Model Number :
LNK-MN-100MC-SFP
Certification :
CE, FCC, RoHS
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiated
Payment Terms :
T/T,PayPal
Supply Ability :
1000pcs/mouth
Delivery Time :
5-12working days
Packaging Details :
standard export package
Dimensions :
58mm (W)×20mm (H)×90 mm (L)
Access mode :
10/100Mbps
Wavelength :
850nm/1310nm/1550nm
Input voltage :
DC 5V~12V
Power consume :
<3W
Operating Temperature :
0~50ºC
Description

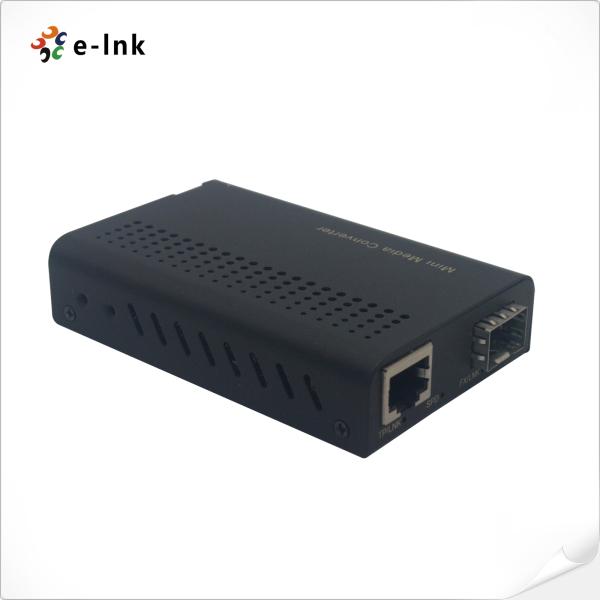

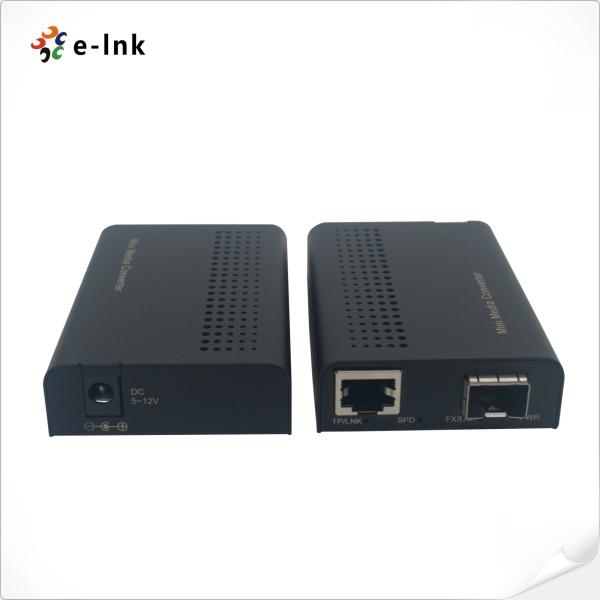

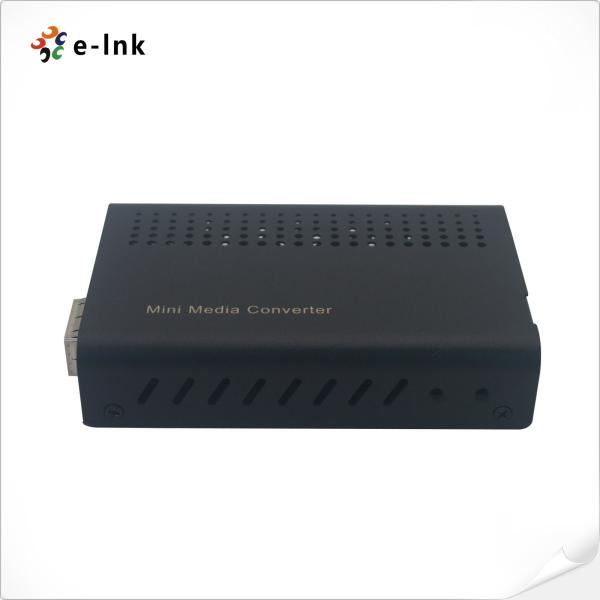

Mini 10/100Base-TX to 100Base-SFP Media Converter

Mini 10/100Base-TX to 100Base-SFP Media Converter Advantage

► 10/100Base-TX UTP to 100Base-FX fiber media converter

► Support IEEE802.3 & 802.3U Fast Ethernet Standards

► SFP Port

► DIP switch to set different configuration

► LFP (Link Fault Pass-through) support

► Support jumbo frame

► Compact package size

Mini 10/100Base-TX to 100Base-SFP Media Converter Overview

The mini 10/100Base-TX to 100Base-FX SFP media converter is fully compliant with IEEE 802.3 & 802.3u

Fast Ethernet Standards. The converter can support auto MDI-MDIX function, flow control for full and half

duplex operation, etc.

A DIP switch is placed at the bottom of the case. Depend on different configurations; the user can set the

different operating mode (Force FX to 100M, pass through mode, etc).

Mini 10/100Base-TX to 100Base-SFP Media Converter Technical Indexes

Parameter

Specifications

Access mode

10/100Mbps

Standard

IEEE802.3, IEEE802.3u

100Base-FX

Wavelength

850nm/1310nm/1550nm

Transmission distance

Multi-mode:
62.5/125μm fiber: 220m;
50/125μm fiber: 550m

single mode:
20/40/60/80/100 km;

Cat-5 twisted pairs: 100m


Conversion means

Store and Forward mode or Cut-Through mode

Flow control

Full duplex: flow control;

Half duplex: back pressure

Input voltage

DC 5V~12V

Power consume

<3W

Operating temperature

0~50ºC

Operating humidity

5%~90%

Maintaining temperature

-40~70ºC

Maintaining humidity

5% ~ 90% non-condensing

Dimensions

58 (W) x 20 (H) x 90 (L) (mm)

Mini 10/100Base-TX to 100Base-SFP Media Converter Ordering Information

Item

Description

LNK-MN-100MC-SFP

Mini 10/100Base-TX to 100BASE SFP Media Converter, excl. SFP modules, standalone, external power adaptor
