2 Channel HD-Video over Optical Fiber Transmitter and Receiver with Excellent cost performance
2 Channel HD-Video over Optical Fiber Transmitter and Receiver with Excellent cost performance
Specifications
Brand Name :
E-link
Model Number :
LNK-H2V-T/R
Certification :
ISO9001, CE, ROHS, FCC
Place of Origin :
China
MOQ :
1 pair
Price :
US$29
Payment Terms :
T/T,Western Union,MoneyGram,PayPal
Supply Ability :
1000/Month
Delivery Time :
3-5 working days
Packaging Details :
SDI Fiber Extender Standard Carton Packaging
Fiber Type :
Single mode fiber
Distance :
20km
Physical Interface :
2-channel BNC connector
Mean time between failures (MTBF) :
＞100 000 hours
Dimension (LxWxH) :
95mm*92mm*26mm
Operation Temperature :
0℃～70℃
Description

2 Channel HD-Video over Optical Fiber Transmitter and Receiver

Model: LNK-H2V-T/R


Overview

The 2 Channel HD-Video over Optical Fiber Transmitter and Receiver (E-link HD Video Converter) is
specifically designed to simultaneously transmit 2 channels of HD-TVI, CVI, or AHD signals over a
single multi-mode or single-mode optical fiber. Equipped with advanced synchronous signal processing
technology, this 2 Channel HD-Video over Optical Fiber Transmitter and Receiver ensures uncompressed,
low-latency transmission for both channels, maintaining consistent HD image quality without signal interference
or degradation.
​
A core highlight of the 2 Channel HD-Video over Optical Fiber Transmitter and Receiver is its hassle-free,
maintenance-free design—no manual electronic or optical adjustments are ever required. This plug-and-
play functionality streamlines on-site deployment, reducing setup time and eliminating the need for
specialized technical personnel during installation. The device is fitted with clear LED indicators that
provide real-time monitoring of key system statuses, including power supply, optical link connectivity,
and individual video channel transmission, enabling swift fault detection and resolution.
​
In terms of installation versatility, the 2 Channel HD-Video over Optical Fiber Transmitter and Receiver
supports both standalone installation for decentralized small-to-medium monitoring points and rack-
mount installation compatible with standard 19-inch equipment racks for centralized 机房 setups. This
adaptability makes it ideal for diverse working environments such as commercial building surveillance,
campus security systems, and small-scale industrial monitoring, delivering reliable dual-channel HD video
transmission over fiber optics.​
​

Features

► Support HD-AHD/CVI/TVI highest resolution 720P, 1080P.

► 10-bit digital video encoding and uncompressed

► Transmission technology

► Applied to the needs of computer long-distance transmission of industrial monitoring, large venues etc…

► Strictly selection material and quality control in order to ensure high quality and high reliability

► System status could be monitored by the power and other parameters LED indicator

► Compact size

► Excellent cost performance

► SMT Surface Mount Technology

► Stand-alone or rack-mount

► Lower power consumption and free installatio.

Technical Indexes

Feature

Description

Optical

Fiber Type

Single mode fiber

Fiber Connector

FC

Distance

20km

Wavelength

Transmitter
Tx1310/Rx1550nm
Receiver
Tx1550/Rx1310nm

Tx

Input level

>500mVp-p

Self-adaption cable equilibrium

720p:75-5 coaxial cable,500m
1080p:75-5 coaxial cable,300m

Input/Output Impedance

75Ω

Physical Interface

2-channel BNC connector

Rx

Output level

1Vp-p

Input/Output Impedance

75Ω

Physical Interface

2-channel BNC connector

General

Transmission Media

Coaxial cable

Baud Rate

1200～9600bit/s

Bit Error Rate

≦10

Operation Mode

Half-Duplex

Indicators

SYN,PWR,DATA,VIDEO

Mean time between failures (MTBF)

＞100 000 hours

Power Type

AC 110-240V/DC 5V 1A

Dimension (LxWxH)

95mm*92mm*26mm

Power Consumption

≦5W

Operation Temperature

0℃～70℃

Operation Humidity

10%～90%

Atmospheric Pressure

86kpa~106kpa

Installation

Wall-mounted


ordering information



Item

Description

LNK-H2V-T/R

2-Ch HD-AHD/CVI/TVI/CVBS video (720P, 960P HD-AHD/CVI/TVI Camera), 20km, single mode single fiber, FC, including 1 transmitter & 1 receiver, used by pairs

LNK-H2V1D-T/R

2-Ch HD-AHD/CVI/TVI/CVBS video (720P, 960P HD-AHD/CVI/TVI Camera) + 1-Ch Backward Data RS485 (for PTZ Cameras), 20km, single mode single fiber, FC, including 1 transmitter & 1 receiver, used by pairs

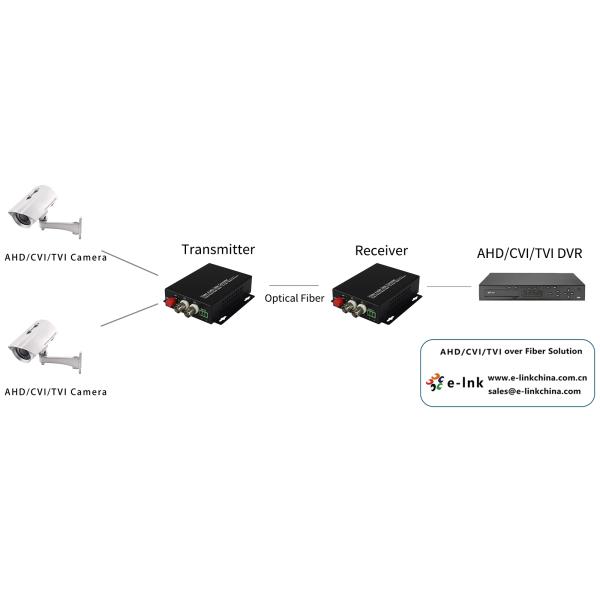

Application
