5 Port Unmanaged Hardened Industrial Ethernet Switch 10M 100M
5 Port Unmanaged Hardened Industrial Ethernet Switch 10M 100M
5 Port Unmanaged Hardened Industrial Ethernet Switch 10M 100M
5 Port Unmanaged Hardened Industrial Ethernet Switch 10M 100M
5 Port Unmanaged Hardened Industrial Ethernet Switch 10M 100M
5 Port Unmanaged Hardened Industrial Ethernet Switch 10M 100M
Specifications
Brand Name :
E-link
Model Number :
LNK-IMC005
Certification :
ROHS,FCC,CE
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram,Paypal
Supply Ability :
1000pcs/month
Delivery Time :
5-12 working days
Packaging Details :
Industrial Ethernet Switch Standard Export Package
Keyword :
Industrial Ethernet Switch
Input Power :
12~48VDC (Terminal Block)
Power Consumption :
<6W
Dimensions (WxDxH) :
95 x 70x 29m
Weight :
0.25kg
Mounting Options :
DIN-Rail / Wall-mount
Description

Industrial Ethernet Switch Mini 5-Port 10 / 100M 250g Unmanaged Ethernet Switch

Industrial Ethernet Switch Advantages

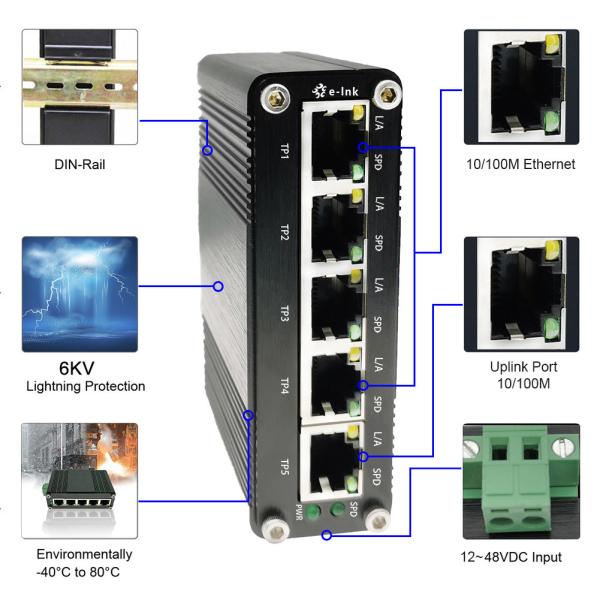

► 5-port 10/100BASE-TX RJ45 with auto MDI/MDI-X function

► 12~48VDC wide range power input

► Supports 802.3x Flow control

► Supports DIN-Rail and Wall-mount installation

► Industry standard design, dustproof and close design IP40, rugged high-strength metal case

► -40°C to 80°C (-40°F to 176°F) operating temperature

Technical Indexes

Connector: 5 10/100BASE-TX RJ45 auto-MDI/MDI-X ports
Environmental
Operating Temperature: -40°C to 80°C (-40°F to 176°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Electrical and Mechanical
Input Power: 12~48VDC (Terminal Block)
Power Consumption: <6W
Dimensions (WxDxH): 95 x 70x 29m
Weight: 0.25Kg
Casing: Aluminum Case
Mounting Options: DIN-Rail / Wall-mount
LED Indicators:
PWR Power
SPD Data Rate
Regulatory Approvals
ISO9001
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009

Overview

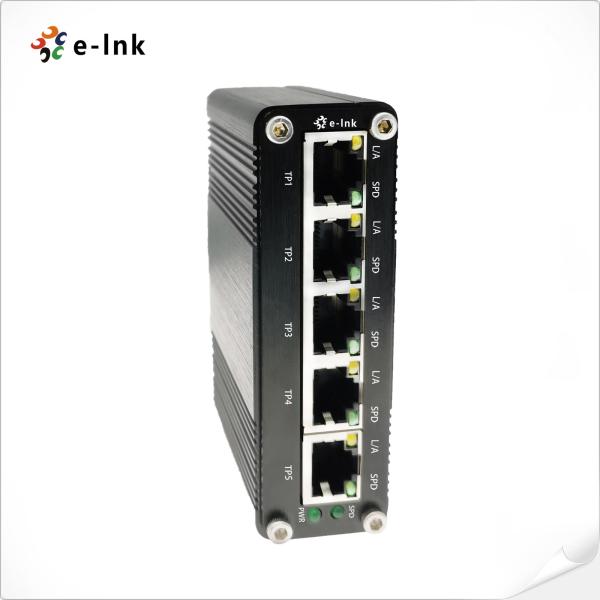

LNK-IMC005 Series is a Mini Industrial 5-Port 10/100TX Compact Ethernet Switch with 12~48VDC wide range power input. This unmanaged industrial Ethernet switch is designed to match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment. The switch complies with CE and FCC standards, and passed the 100% burning test to ensure that it will fulfill the needs of industrial applications. It is a good choice for an economical solution for industrial Ethernet connections.

5 Port Unmanaged Hardened Industrial Ethernet Switch 10M 100M

Ordering Information

Model Description
LNK-IMC005 Mini Industrial 5-Port 10/100TX Compact Ethernet Switch
Mounting Options ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options ► Power Supply is to be purchased separately
