Industrial Ethernet Switch 10/100Mbps RJ45, 8Port, Redundant Power
Industrial Ethernet Switch 10/100Mbps RJ45, 8Port, Redundant Power
Industrial Ethernet Switch 10/100Mbps RJ45, 8Port, Redundant Power
Industrial Ethernet Switch 10/100Mbps RJ45, 8Port, Redundant Power
Specifications
Brand Name :
E-link
Model Number :
LNK-IMC108
Certification :
RoHS,CE,FCC
Place of Origin :
China
MOQ :
1pcs
Price :
To be negotiated
Payment Terms :
L/C, T/T, Western Union, MoneyGram,Paypal
Supply Ability :
2000PCS/Month
Delivery Time :
5-15working days
Packaging Details :
Industrial Ethernet Switch Standard Export Package
keyword :
Industrial Ethernet Switch
Connector :
8 x RJ45
Optical Port :
1 x 100Base-FX (SFP, SC, FC, ST Optional)
Input Power :
12~58VDC , Redundant Power (6-pin Terminal Block)
Dimensions (WxDxH :
150 x 110 x 50 mm
Weight :
0.6Kg
Description

Industrial Ethernet Switch 10 / 100Mbps RJ45 Port 8 Port Industrial Switch

Industrial Ethernet Switch Advantages

► 8 10/100Base-TX + 1 100Base-FX

► 10/100Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX

► SFP, SC, FC, ST Optional

► Supports 802.3x Flow control

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► Redundant Power Inputs

► Supports Wall-mount and DIN-Rail installation

Technial Indexes

Interface
Connector: 8 x RJ45
Optical Port: 1 x 100Base-FX (SFP, SC, FC, ST Optional)
Ethernet Port RJ45 Port 1 ~ Port 8
Environmental
Operating Temperature: -40°C to 80°C (-40°F to 176°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Relative Humidity: 5% to 95% non-condensing
MTBF > 200,000 hrs
Electrical and Mechanical
Input Power: 12~58VDC , Redundant Power (6-pin Terminal Block)
Power Consumption: 5W Max.
Dimensions (WxDxH): 150 x 110 x 50 mm
Weight: 0.6Kg
Casing: Metal Case
Mounting Options: DIN-Rail / Wall-mount
Regulatory Approvals
ISO9001
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009

Overview

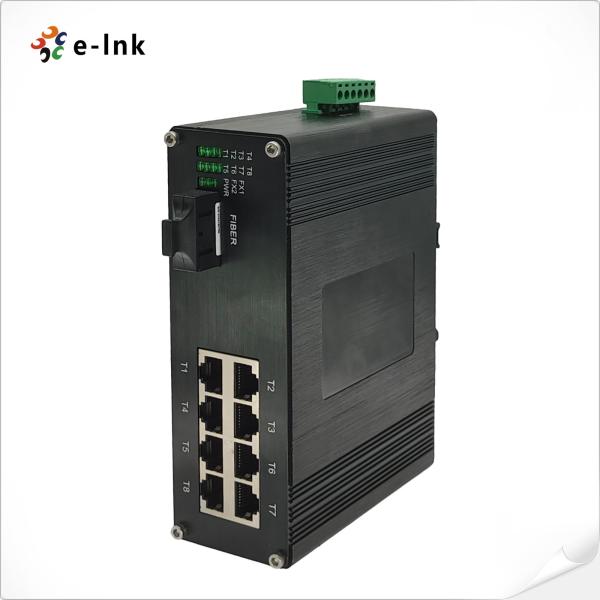

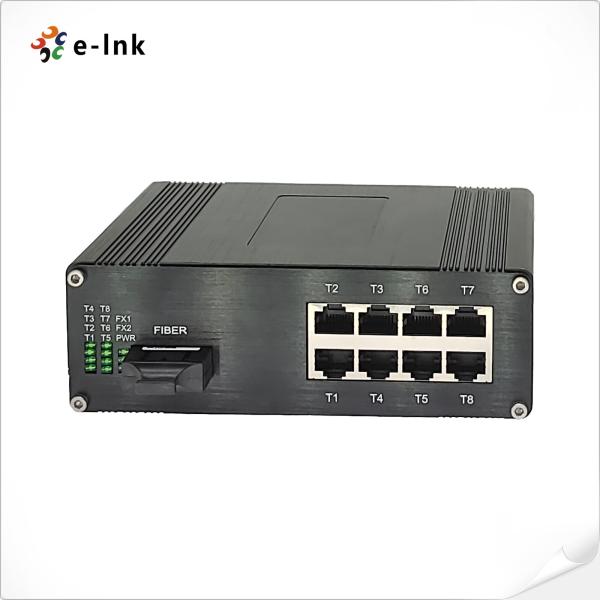

LNK-IMC108 is an 8 ports 10/100Base-TX + 1 port 100Base-FX Industrial Ethernet switch. The Switch has 8 TP ports and 1 fiber port. TP (RJ45) support 10/100Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; 100Base-FX supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.

Industrial Ethernet Switch 10/100Mbps RJ45, 8Port, Redundant Power

Ordering Information

Model Description
LNK-IMC108 Industrial Ethernet Switch: 8-Port 10/100Base-TX + 1-Port 100Base-FX Fiber, Multimode, Dual Fiber, SC, 2KM
LNK-IMC108-20 Industrial Ethernet Switch: 8-Port 10/100Base-TX + 1-Port 100Base-FX Fiber, Single Mode, Dual Fiber, SC, 20KM
LNK-IMC108S-20 Industrial Ethernet Switch: 8-Port 10/100Base-TX + 1-Port 100Base-FX Fiber, Single Mode, Single Fiber, SC, 20KM
LNK-IMC108F-20 Industrial Ethernet Switch: 8-Port 10/100Base-TX + 1-Port 100Base-FX Fiber, Single Mode, Single Fiber, FC, 20KM
LNK-IMC108-SFP Industrial 8-port 10/100BASE-T + 1-port 100BASE SFP Ethernet Switch
SFP Options ► SFP option. Please select your SFP on our SFP Options Page
► SFP module is to be purchased separately.
Mounting Options ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options ►24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block.
► Power Supply is to be purchased separately.
