Aluminum HDMI Over CAT5/CAT6 Extender - 1080P@60Hz, 165MHz
Aluminum HDMI Over CAT5/CAT6 Extender - 1080P@60Hz, 165MHz
Aluminum HDMI Over CAT5/CAT6 Extender - 1080P@60Hz, 165MHz
Aluminum HDMI Over CAT5/CAT6 Extender - 1080P@60Hz, 165MHz
Aluminum HDMI Over CAT5/CAT6 Extender - 1080P@60Hz, 165MHz
Aluminum HDMI Over CAT5/CAT6 Extender - 1080P@60Hz, 165MHz
Specifications
Brand Name :
E-link
Model Number :
LNK-UVGA-T/R
Certification :
CE,FCC,Rohs
Place of Origin :
china
MOQ :
1pair
Price :
Negotiated
Payment Terms :
T/T, Western Union, MoneyGram, PayPal
Supply Ability :
1000pair/month
Delivery Time :
5-8work
Packaging Details :
standard export package
Video Signal Type :
VGA
Video BW :
380MHz
Video Impedance :
75Ω
Audio Type :
Stereo
Power Supply :
Adapter: DC 12V/1A
Power Dissipation :
MAX 4W
Application :
Telecommunication, Networking, etc.
Cable Type :
Single-mode, Multi-mode, etc.
Connector Finish :
Nickel, Gold, etc.
Connector Gender :
Male, Female, Unisex, etc.
Connector Style :
Straight, Right Angle, etc.
Connector Type :
SC, LC, ST, FC, etc.
Data Rate :
155Mbps, 1Gbps, etc.
Fiber Count :
1, 2, 4, etc.
Fiber Type :
SMF, MMF, etc.
Material :
Plastic, Metal, Ceramic, etc.
Operating Temperature :
0-70°C, -40-85°C, etc.
Product Name :
Fiber Optic Accessories
Type :
Connector, Adapter, Coupler, Splitter, etc.
Wavelength :
850nm, 1310nm, etc.
Description

USB VGA KVM over CAT5/6 UTP Extender

USB VGA KVM over CAT5/6 UTP Extender Advantages

► Transmit VGA video and audio over long distances through the cable, up to 150 meters;

► The highest resolution HD video signals up to 1080P @ 60Hz;

► Compliance with VGA standard protocol;

► Support for external one-way analog stereo audio signal transmission;

► Support USB keyboard and mouse transmission;

► It can automatically identify and configure a variety of display modes;

► Built-in automatic equalization system, the picture is smooth, clear and stable;

► Built-in ESD Protection Circuit, comprehensive protection system security;

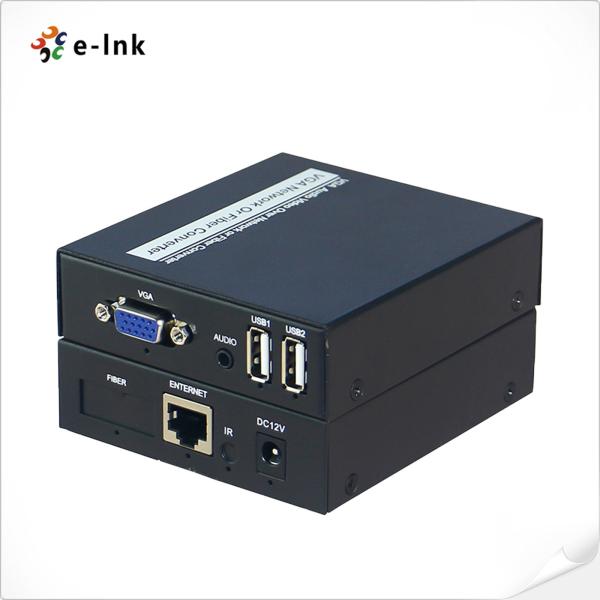

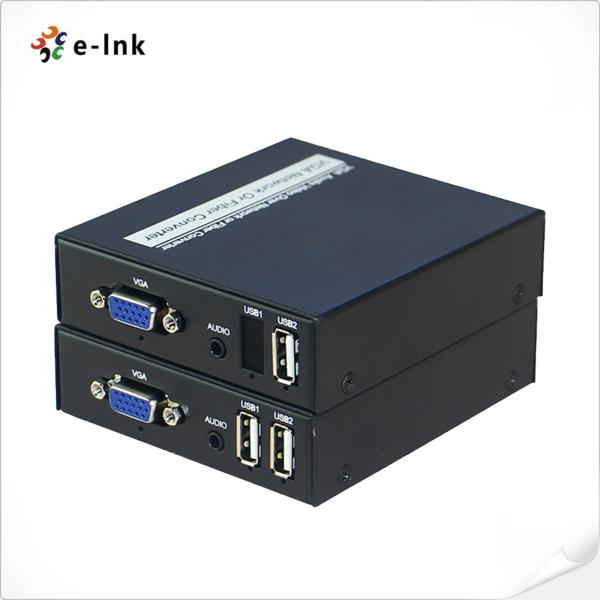

USB VGA KVM over CAT5/6 UTP Extender Picture

Aluminum HDMI Over CAT5/CAT6 Extender - 1080P@60Hz, 165MHz

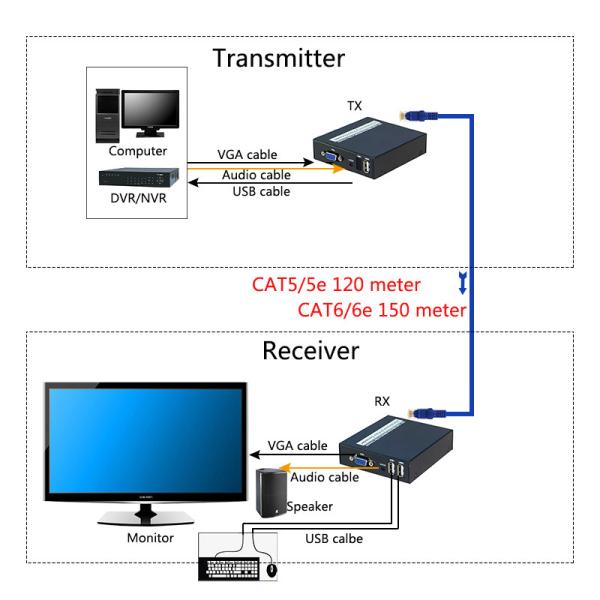

USB VGA KVM over CAT5/6 UTP Extender Application

Aluminum HDMI Over CAT5/CAT6 Extender - 1080P@60Hz, 165MHz


USB VGA KVM over CAT5/6 UTP Extender Technical Indexes

Parameter Description
Video Signal Type VGA
BW 380MHz
Resolution

1024X768 @ 60fps

1280X720@ 60fps

1280X800@ 60fps

1280X1024@ 60fps

1440x900 @ 60fps

1660x1200 @ 60fps

1680x1050 @ 60fps

1920x1080 @ 60fps
Impedance 75Ω
Audio Port 3.5mm Stereo audio socket
Type Stereo
K/M PIN USB
Ethernet port Cable Type IEEE 568B
Max transmission distance Cat5e :120m,cat6 :150m
Other Power Adapter: DC 12V/1A
Power dissipation MAX 4W
Temperature Operating:-5℃ ~ +70℃
Humidity Operating:5% ~ 90%
Size 92 x 89 x 26 mm
Warranty 1 year

USB VGA KVM over CAT5/6 UTP Extender Ordering Information

Part No Description of product
LNK-UVGA-T/R VGA Extender over CAT5/ 6 Kit Transmitter/Receiver, up to 150 meters
