Horseshoe Conveyor Belt Metal U Shape Honeycomb Belt Mesh
Horseshoe Conveyor Belt Metal U Shape Honeycomb Belt Mesh
Horseshoe Conveyor Belt Metal U Shape Honeycomb Belt Mesh
Horseshoe Conveyor Belt Metal U Shape Honeycomb Belt Mesh
Specifications
Brand Name :
XMESH
Model Number :
QJ-933
Certification :
SGS
Place of Origin :
Hebei, China
MOQ :
200pcs
Price :
USD 200 - 1000 per roll FOB Tianjin
Payment Terms :
30%TT in advance, Balance before loading
Supply Ability :
500 rolls per month
Delivery Time :
15-25days
Packaging Details :
With wooden box
Material :
Inconel 601
Wire diameter :
1.8mm, 2.3mm
Connection :
Springs & rods
Shape :
In rolls
Technic :
Woven mesh
Roll size :
0.8x25m, 1x25m
Email :
devin@industrialmetalmesh.com
whatsapp :
+8615369013183
Description

Horseshoe Conveyor Belt Metal U Shape Honeycomb Belt Mesh​

Product Description
Conveyor Belt Mesh
The honeycomb belt is an open grid belt made of flat wire strips connected to each other by straight rods and pulled by specific sprockets. This belt is suitable for cleaning processes, cooking, cooling, products transfers, drying material and water treatment.
Horseshoe Conveyor Belt Metal U Shape Honeycomb Belt Mesh

Chain Link Conveyor Belt's introduction:

1.material:carbon steel, 201,304,316,316L, etc.

2.shape:rhombus,U shaped,chain link type,apron conveyor belt,spherical mesh belt

3.wire diameter:0.3-3mm

Production name horseshoe conveyor belt mesh, honeycomb conveyor belt, u shape honeycomb conveyor belt, Great Wall Honeycomb Wire Mesh Conveyor Belt
Material
304 316 316L 310S 430 stainless steel rod and plate, galvanized steel rod and plate

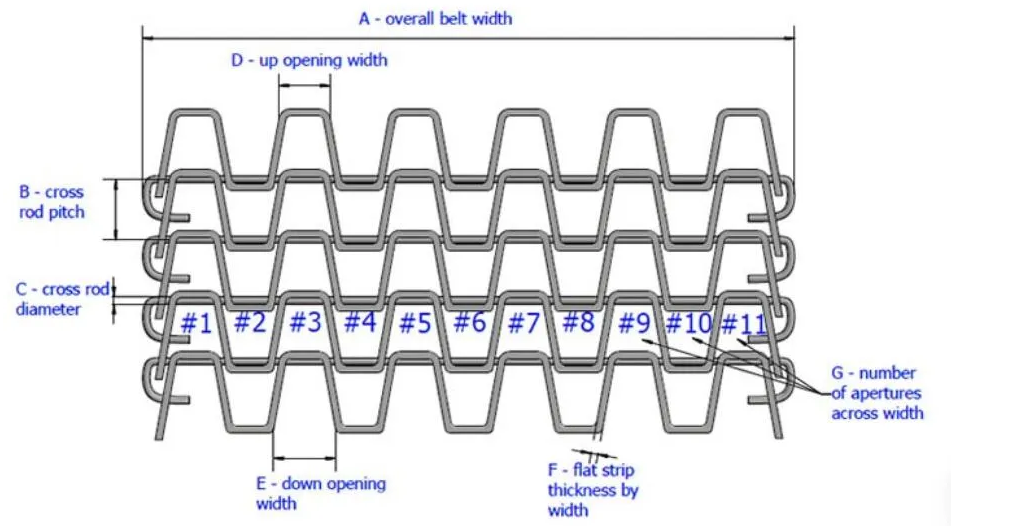

Overall belt width( A)
20cm-200cm, we can do it as your requirement
Cross rod pitch (B)
25mm, 30mm, customized
Cross rod diameter (C)
3mm, customized
Up opening width (D)
10mm, customized
Down opening width (E)
15mm, customized,

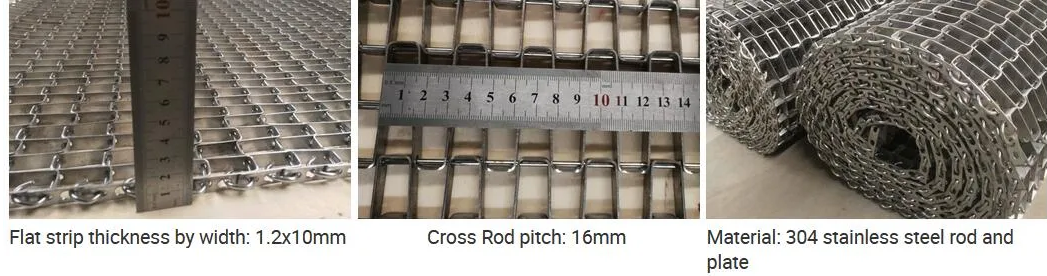

Flat strip thickness by width(F)
 1.2mm x10mm, customized
Feature * high strength loading
* high air permeability and dehydration capacity because of its large openning area.
* easy to clean.

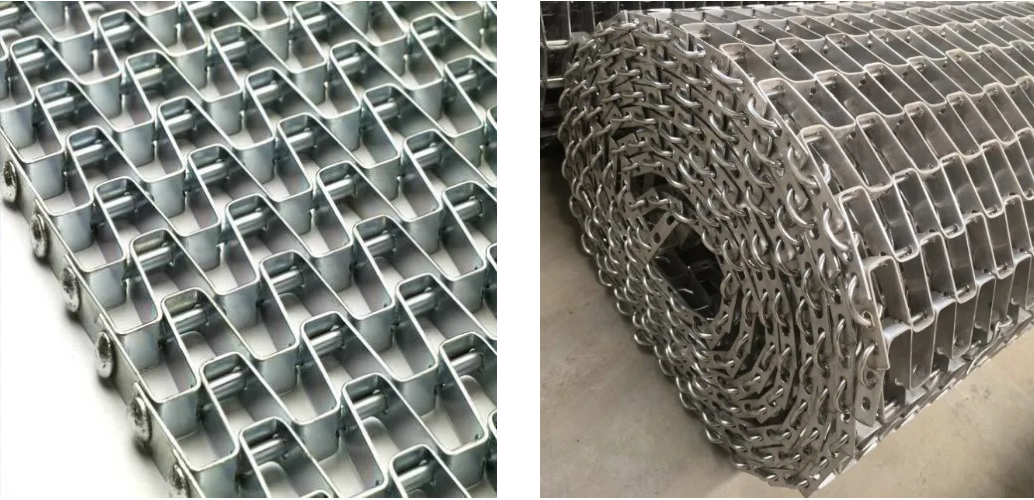

HORSESHOE CONVEYOR BELT DIFFERENT EDGE:

Horseshoe Conveyor Belt Metal U Shape Honeycomb Belt Mesh

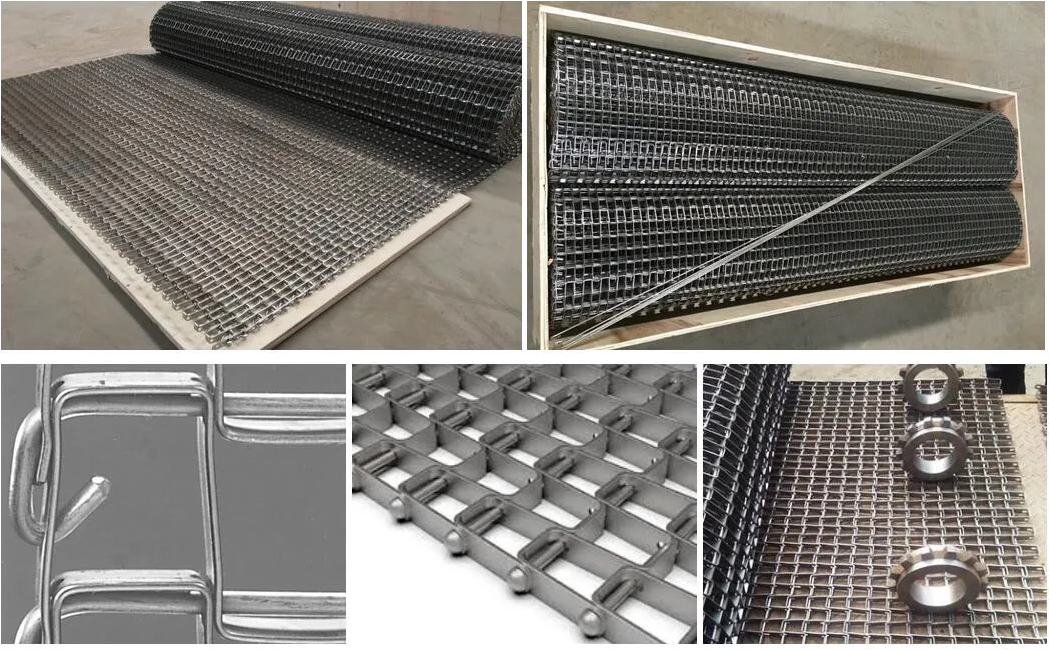

HORSESHOE CONVEYOR BELT DISAPLY:
Horseshoe Conveyor Belt Metal U Shape Honeycomb Belt Mesh
Horseshoe Conveyor Belt Metal U Shape Honeycomb Belt Mesh

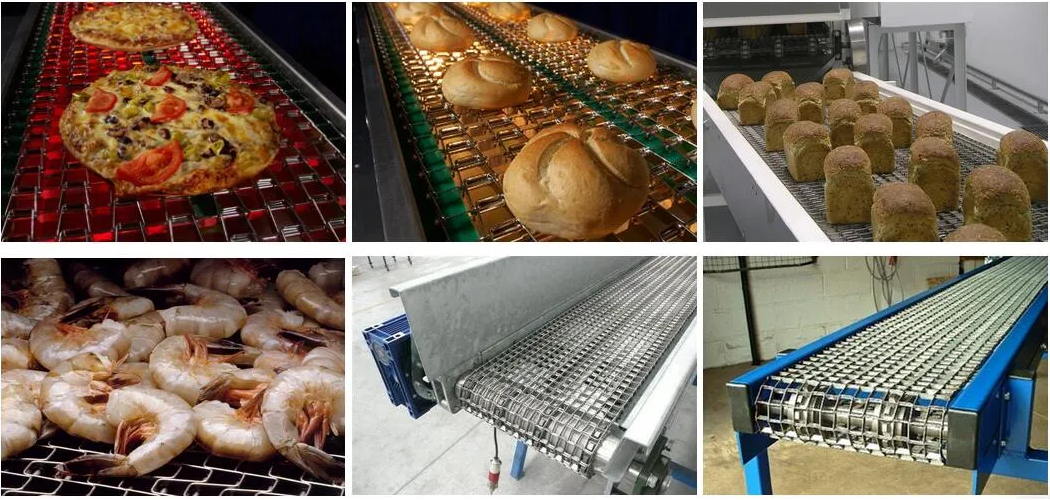

HORSESHOE CONVEYOR BELT APPLICATION:
* Stainless steel Metal Honeycomb mesh conveyor belts is widely used in glass industry, food processing industry.
* Wire mesh conveyor belt is widely used in areas such as cement, metallurgy, casting, chemical transport materials.
* Wire mesh conveyor belt can be used for high temperature resistant, resistant to burn conveyor belt, electronic balance tear conveyor belt etc
* Instant noodles and rice industry;
Horseshoe Conveyor Belt Metal U Shape Honeycomb Belt Mesh

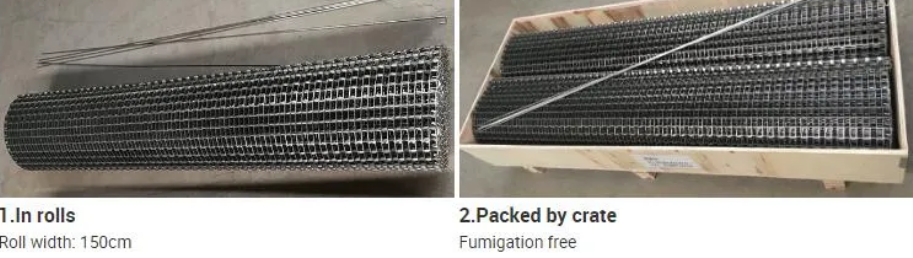

HORSESHOE CONVEYOR BELT PACKAGE: by pallets or by plywood case
Horseshoe Conveyor Belt Metal U Shape Honeycomb Belt Mesh
