SS304 Spiral Grid Belt Mesh for Dryer Cooler Belt
SS304 Spiral Grid Belt Mesh for Dryer Cooler Belt
SS304 Spiral Grid Belt Mesh for Dryer Cooler Belt
SS304 Spiral Grid Belt Mesh for Dryer Cooler Belt
Specifications
Brand Name :
qijie
Model Number :
conveyor belt mesh
Certification :
conveyor belt mesh
Place of Origin :
China
MOQ :
10m
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100m
Delivery Time :
15-18days
Packaging Details :
paper carton
Material :
Stainless Steel Wire
Application :
conveyor mesh
Description

SS304 Spiral Grid Belt Mesh for Dryer Cooler Belt

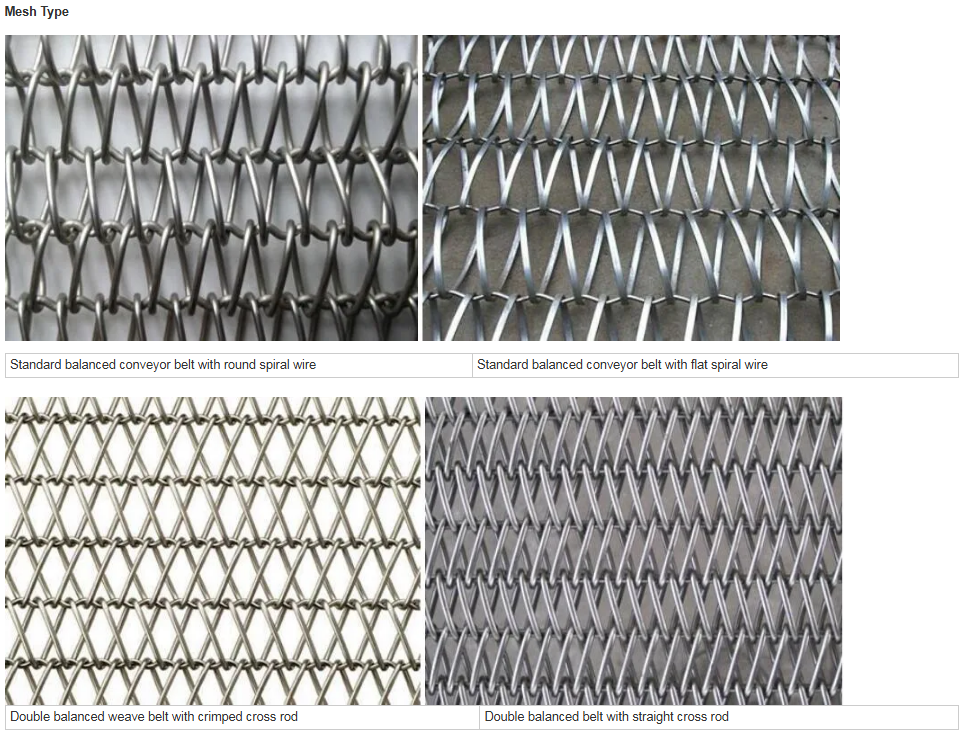

Balanced weave belt also called as wide spiral belts or wire link belts in different countries, consists of a series of alternating single or double left-hand and right-hand spirals connected by crimped or straight cross wire. Round or flattened spiral wire are used. With its unlimited choice of mesh selection, balanced spiral belting has a wide range of mesh size suiting for almost any application.
SS304 Spiral Grid Belt Mesh for Dryer Cooler Belt

Item
balanced weave belt
Wire diameter
1.2 mm, 1.4 mm, 1.5 mm, 1.6 mm, 1.8 mm, 2 mm, 2.5 mm, 3 mm
Cross wire diameter
1.2 mm - 4.0 mm.
Flat wire size
1.0 mm × 0.7 mm to 6.0 mm × 3.0 mm
Spiral wire pitch
2.8 mm to 40 mm
Cross rod pitch
5 mm to 50.8 mm
Belt width
200 mm to 5,000 mm
Working temperature
depending on the material
Material available
carbon steel, SS 201, SS 304, SS 316, SS 314

SS304 Spiral Grid Belt Mesh for Dryer Cooler Belt

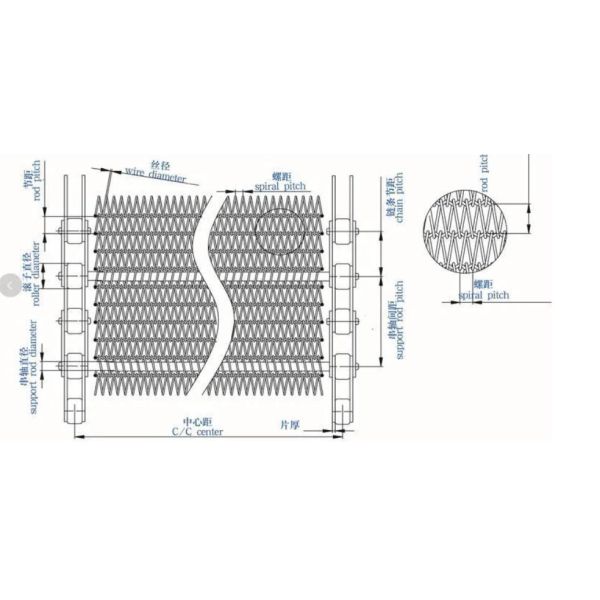

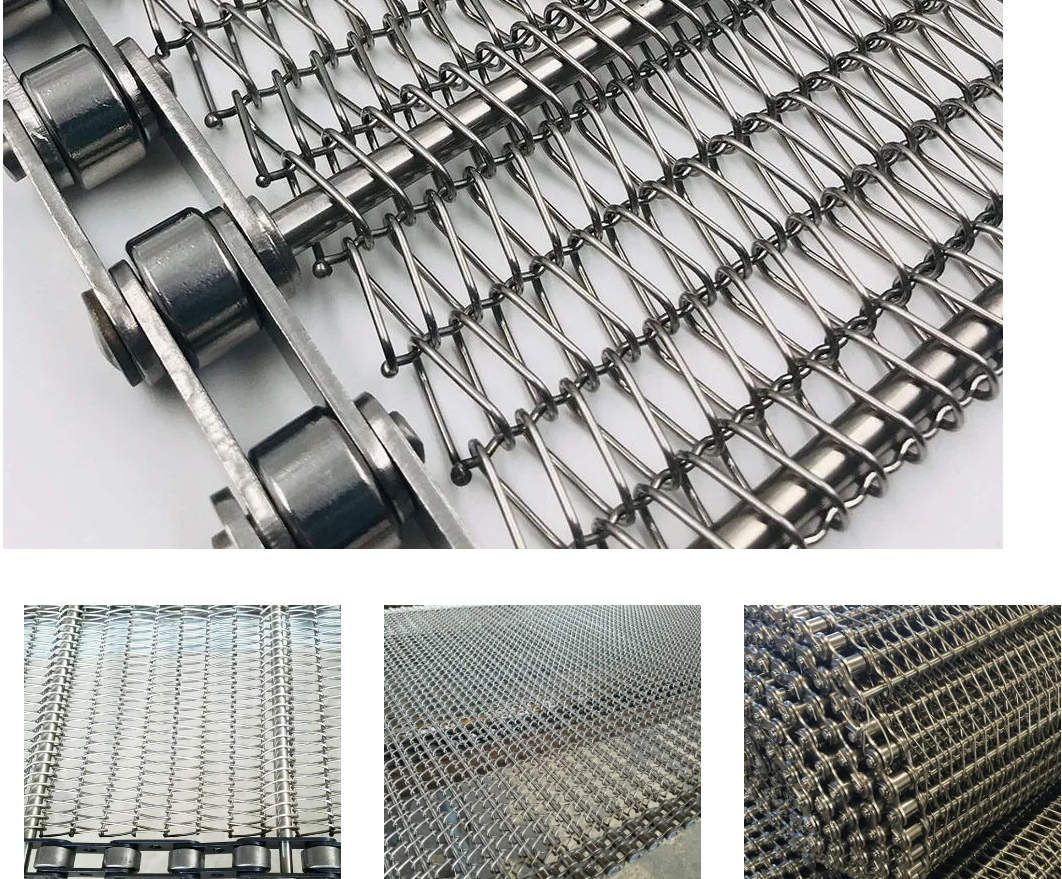

Chain Driven Belt is driven with a cross rod which connects the chain strands by either passsing through or under the wire mesh fabric. The density of wire mesh fabric is decided by the size of the products.
Chain Driven Belt characteristics: chain drive, smooth running, little relative pressure on wire mesh fabric.

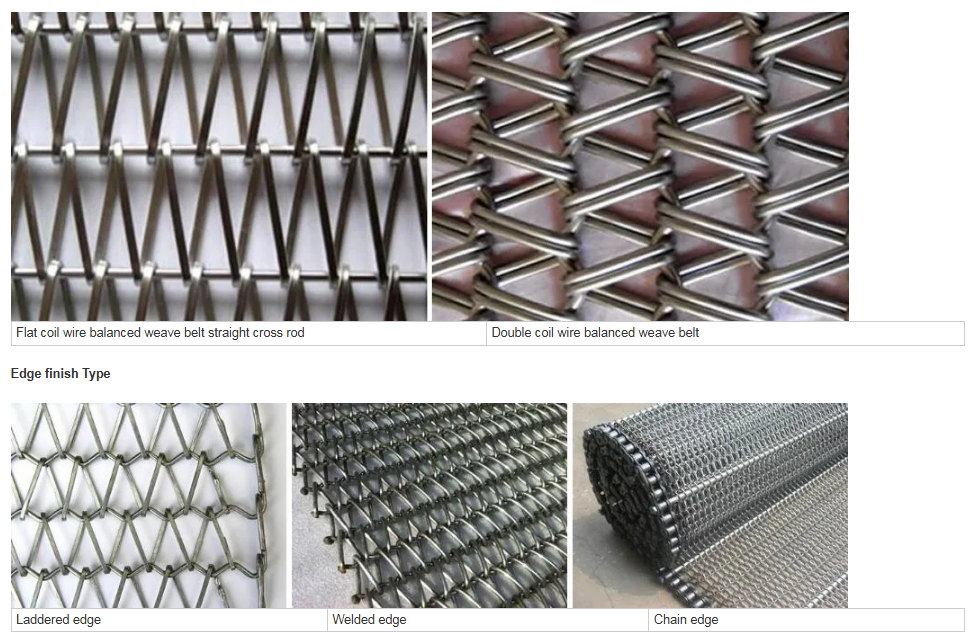

To extend the lifespan of balanced weave conveyor belt and ensure the high efficient working and conveying, we can supply different edge types for your choice. The main types of balanced weave conveyor belts are as follows:
SS304 Spiral Grid Belt Mesh for Dryer Cooler Belt

SS304 Spiral Grid Belt Mesh for Dryer Cooler Belt
