Custom Size Grip Strut Grating for Mining Industry Underground Tunnel Walkway
Custom Size Grip Strut Grating for Mining Industry Underground Tunnel Walkway
Custom Size Grip Strut Grating for Mining Industry Underground Tunnel Walkway
Custom Size Grip Strut Grating for Mining Industry Underground Tunnel Walkway
Specifications
Brand Name :
QIJIE
Model Number :
grip strut grating
Certification :
iso
Place of Origin :
hebei,China
MOQ :
100pcs
Payment Terms :
30%TT in advance,Balance before loading
Supply Ability :
1000pcs per month
Delivery Time :
15-18days
Packaging Details :
Pallets
Material :
Aluminum,Galvanized Steel Wire
products name :
grip strut grating
Type :
Perforated Mesh,Etching or stamping
Technique :
Perforated
Weave style :
perforated,Punched,Punching
Hole shape :
Round,diamond,etc,plum blossom,octagonal
Surface treatment :
Spray coating/Spray painting/Fluorocarbon coating,Hot Dipped Galvanized,galvanized and fluoroca
Color :
All the color chip have,White,blue,Silver,golden
Product name :
hexagonal perforated metal sheet,expandable sdiamond mesh
Thickness :
0.5-8mm,0.3MM- 8MM
Feature :
Corrosion Resistance,Good-looking and good quality,Durable,Acid resistance,anti-resistance
Width :
1m or 1.22m,1.22 m or below
Usage :
etc.,decorative,oil/air filter,food
Length :
2m or 2.44m
Size :
Customized Size,standard
Shape :
square,Can be cut into round or square shape,Round Shape,oval,Hexagon
Pitch :
1.0mm-100MM,or as request.
Email :
devin@industrialmetalmesh.com
whatsapp :
+8615369013183
Description

Custom Size Grip Strut Grating for Mining Industry Underground Tunnel Walkway

Product Description

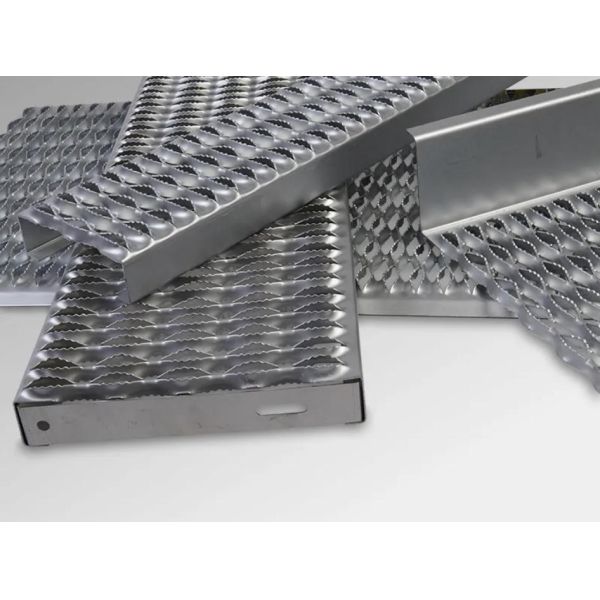

The perforated crocodile mouth grip strut grating is a metal anti-skid plate with a raised tooth-shaped hole structure made of iron plate, stainless steel plate or aluminum plate as the base material through CNC punching technology. Its production process covers shearing, punching and bulging, bending and welding, etc.
The hole shape includes crocodile mouth shape, herringbone shape and round shape, and the serrated edge design effectively improves the anti-slip effect.
The plate thickness can be customized in the range of 1-5mm, and the bending angle is adjusted according to the installation scenario. Common edge treatment methods include flat edge and bent edge.
The product has the characteristics of rust resistance, corrosion resistance, strength and durability. It is widely used in outdoor platforms of industrial facilities such as sewage treatment plants and power plants, as well as vehicle anti-slip pedals, stair treads and other scenarios.
Custom Size Grip Strut Grating for Mining Industry Underground Tunnel Walkway

Product Features

1. Varied material types
2. Greatly increased safety with a special non-slip serrated edge surface
3. Maintenance-free open diamond design with the self-cleaning feature
4. Heavy load-carrying capacity with minimal deflection
5. Easy to install with low erection cost
6. Versatile in applications
Product Features
Product Name
Anti Skid Perforated Slip-Resistant safety grating walkway grip strut
Hole type

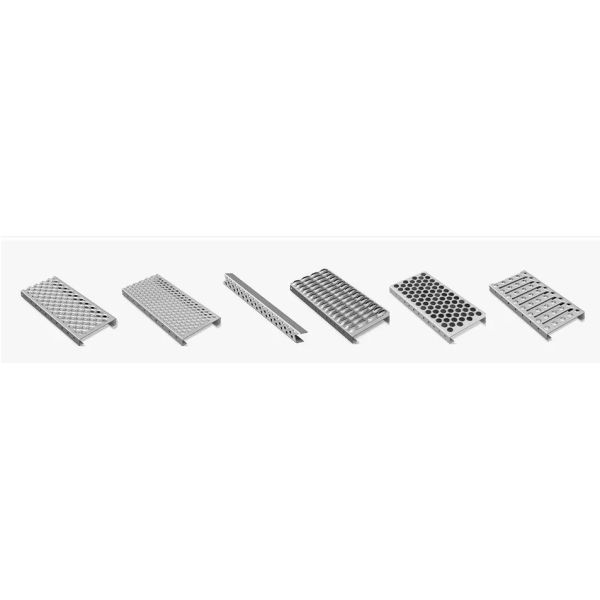

Diamond ,Perf-O ,rectangular ,Embossed , Round ,Fish scalled
Width
Max 1250mm
Length
Max 6000mm
Bend Depth
50+20mm 35+20mm 75+20mm customized
MOQ
20pcs
Special Services
Site CAD Drawing , Free Samples , Installation Guide , Solid Packages
Loading Port
Tian Jin Port or Any Chinese Port

Custom Size Grip Strut Grating for Mining Industry Underground Tunnel Walkway

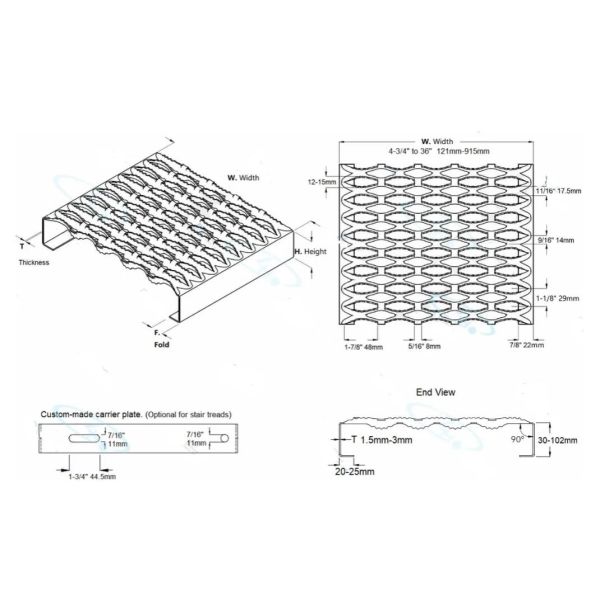

Item No. Item Description Standard Width Standard Channel Depth Standard Length
1 2-Diamond Plank 4.75'' (120.65mm)

1.5'', 2'' and 2.5''

(38.1mm, 50.8mm and 63.5mm)

10' and 12'

(3048mm and 3657.6mm)
2 3-Diamond Plank

7''

(120.65mm)

1.5'', 2'', 2.5'' and 3''

(38.1mm, 50.8mm, 63.5mm and 76.2mm)

10' and 12'

(3048mm and 3657.6mm)
3 4-Diamond Plank

9.5''

(241.3mm)

1.5'', 2'', 2.5'' and 3''

(38.1mm, 50.8mm, 63.5mm and 76.2mm)

10' and 12'

(3048mm and 3657.6mm)
4 5-Diamond Plank

11.75''

(298.45mm)

1.5'', 2'', 2.5'' and 3''

(38.1mm, 50.8mm, 63.5mm and 76.2mm)

10' and 12'

(3048mm and 3657.6mm)
5 8-Diamond Plank

18.75''

(476.25mm)

1.5'', 2'', 2.5'' and 3''

(38.1mm, 50.8mm, 63.5mm and 76.2mm)

10' and 12'

(3048mm and 3657.6mm)
6 10-Diamond Plank

24''

(609.6mm)

2'' and 3''

(50.8mm and 76.2mm)

10' and 12'

(3048mm and 3657.6mm)
7 10-Diamond Walkway

24''

(609.6mm)

4.5''

(114.3mm)

10' and 12'

(3048mm and 3657.6mm)

CAUTION:
Custom lengths, widths and channel depths are available upon request!

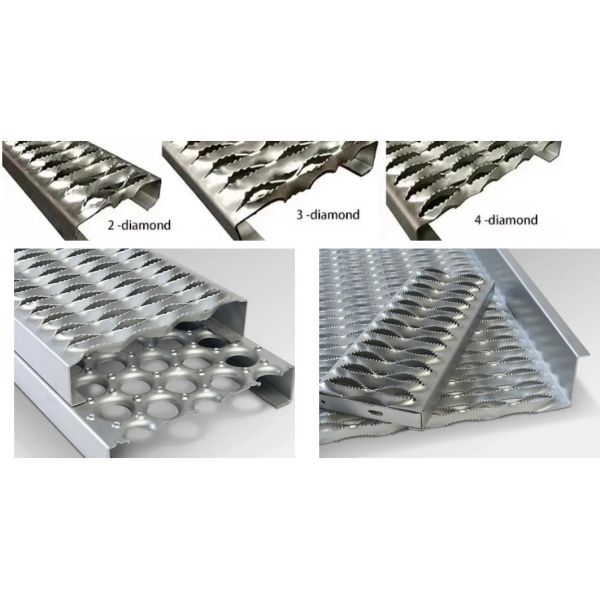

Diamond plank grating has a wide range of widths - from 4 3/4" (2-Diamond) to 24" (10-Diamond) for different applications. For example, standard walkway grating is usually 10-Diamond, and stair treads is available from 2-Diamond to 5-Diamond. Custom widths are welcome.

Custom Size Grip Strut Grating for Mining Industry Underground Tunnel Walkway

Custom Size Grip Strut Grating for Mining Industry Underground Tunnel Walkway
Features
Features: Anti-skid, anti-rust and anti-corrosion, uniform hole size, durable, without burs and broken holes, and lightweight design providing high strength-to-weight ratio and virtually maintenance free.

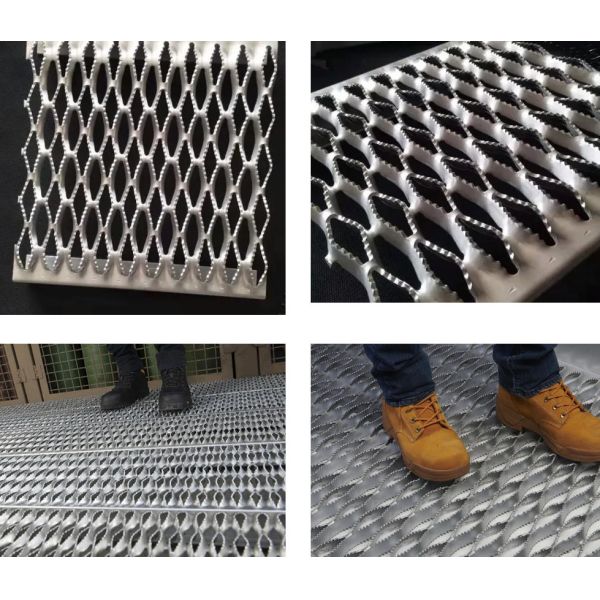

Surface pattern: Raised diamond pattern configuration in metal struts offering slip resistance in all directions of the steel grating.
Custom Size Grip Strut Grating for Mining Industry Underground Tunnel Walkway

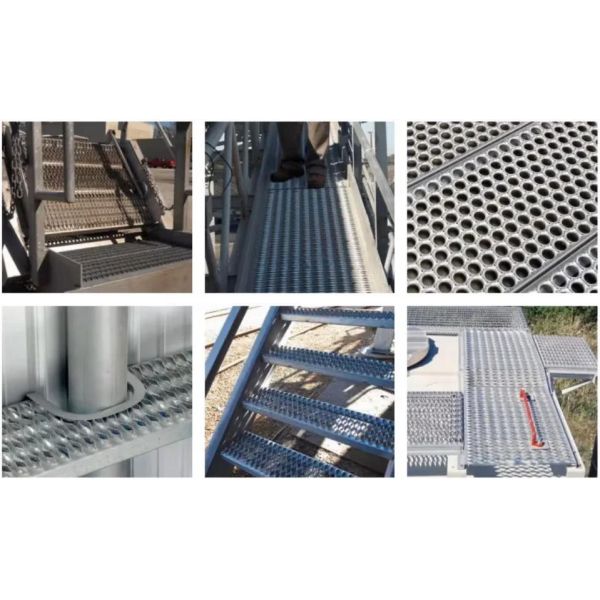

Applications
Industrial walkways and platforms
Rooftop walkways and mezzanine flooring
Stair treads and ladders
Rack decking and work platforms
Signboard walkways

Custom Size Grip Strut Grating for Mining Industry Underground Tunnel Walkway

Advantages
1.Easy to maintain ,installation .2.Liquid slurry, ice ,snow in fast filtration channels .
3.High bearing capacity --High strength to weight ratio
4.Longer life than similar products
5.Light weight--easy to install and manufacturer
