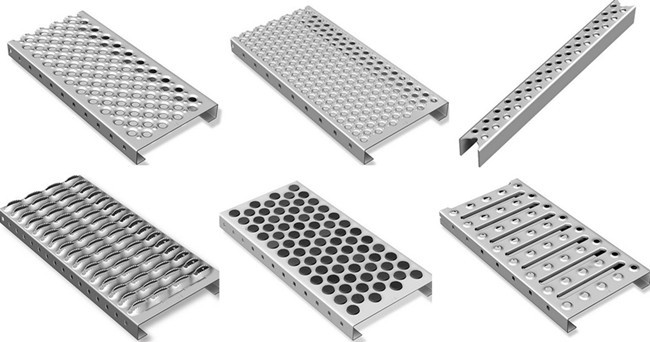

Flat Aluminum Crocodile Mouth Anti Slip Stair Treads Walkway Plank Sheet Panel Roof Diamond Grip Strut Safety Grating
Flat Aluminum Crocodile Mouth Anti Slip Stair Treads Walkway Plank Sheet Panel Roof Diamond Grip Strut Safety Grating
Flat Aluminum Crocodile Mouth Anti Slip Stair Treads Walkway Plank Sheet Panel Roof Diamond Grip Strut Safety Grating
Flat Aluminum Crocodile Mouth Anti Slip Stair Treads Walkway Plank Sheet Panel Roof Diamond Grip Strut Safety Grating
Specifications
Supply Ability :
1000pcs per month
Type :
Perforated Mesh,Etching or stamping
Hole shape :
Round,diamond,etc,plum blossom,octagonal
Usage :
etc.,decorative,oil/air filter,food
Length :
2m or 2.44m
Delivery Time :
15-18days
products name :
grip strut grating
Model Number :
grip strut grating
Color :
All the color chip have,White,blue,Silver,golden
Size :
Customized Size,standard
MOQ :
100pcs
Packaging Details :
Pallets
Surface treatment :
Spray coating/Spray painting/Fluorocarbon coating,Hot Dipped Galvanized,galvanized and fluoroca
Shape :
square,Can be cut into round or square shape,Round Shape,oval,Hexagon
Payment Terms :
30%TT in advance,Balance before loading
Technique :
Perforated
Weave style :
perforated,Punched,Punching
Pitch :
1.0mm-100MM,or as request.
Width :
1m or 1.22m,1.22 m or below
Thickness :
0.5-8mm,0.3MM- 8MM
whatsapp :
+8615369013183
Certification :
iso
Email :
devin@industrialmetalmesh.com
Place of Origin :
hebei,China
Feature :
Corrosion Resistance,Good-looking and good quality,Durable,Acid resistance,anti-resistance
Brand Name :
QIJIE
Product name :
hexagonal perforated metal sheet,expandable sdiamond mesh
Material :
Aluminum,Galvanized Steel Wire
Description

Flat Aluminum Crocodile Mouth Anti Slip Stair Treads Walkway Plank Sheet Panel Roof Diamond Grip Strut Safety Grating​

Product Description
Grip strut safety grating is used to create non-slip walkways and stair treads. The planks have a high strength-to-weight performance, which ensures a high load capacity and long life.
The product is made from a lightweight metal grating specifically designed for safety underfoot. The unique one-piece diamond shaped construction provides slip-resistance in all directions.
Grip strut is ideally suited for all walking/working surfaces where mud, ice, snow, grease, oil and detergents create slippery or hazardous conditions.
The serrated surface is designed in an open diamond pattern. This allows drainage of fluids, mud, chips and other accident-causing debris.

Diamond safety grating walkway has two main materials for choice: pre-galvanized steel plate and aluminum alloy steel plate. They all have excellent corrosion and rust resistance performance. The aluminum alloy can supply lighter weight than the pre-galvanized steel diamond safety grating. They are perfect packed in pallet to ensure the safe transport

Material: pre-galvanized steel and aluminum alloy.
Grating thickness: 9G, 10G, 11G, 12G and 14G.
Grating width: 24", 30" and 36"
Channel height: 4-1/2" and 5".
Clear span: 2', 2'-6", 3', 3'-6", 4', 4'-6", 5', 5'-6", 6', 6'-6", 7', 7'-6", 8', 9', 10', 11', 12'
Flat Aluminum Crocodile Mouth Anti Slip Stair Treads Walkway Plank Sheet Panel Roof Diamond Grip Strut Safety Grating
Walkway Channels: Walkway channels are designed to provide a safe walking surface in industrial settings. It is typically used in areas with a risk of slips and falls, such as platforms, mezzanines, and catwalks.

Stair Tread: Stair treads provide a slip-resistant surface on stairways. They are available in a variety of sizes and styles to suit different applications, including standard and heavy-duty treads.

Ladder Rung: Ladder rungs are used to provide a safe and slip-resistant surface on industrial ladders. AGICO supplies a variety of sizes and styles to suit different metal ladders, it can be classified into standard and heavy-duty rungs.

Floor Resurfacing Sheets: Grip strut safety grating can be used as a floor resurfacing material to provide slip resistance and traction in areas that are prone to slips and falls, such as loading docks, ramps, and walkways.

Product Features

What are the features of Grip Strut Safety Grating from Tec-Sieve?
1. Varied material types
2. Greatly increased safety with a special non-slip serrated edge surface
3. Maintenance-free open diamond design with the self-cleaning feature
4. Heavy load-carrying capacity with minimal deflection
5. Easy to install with low erection cost
6. Versatile in applications

It is worthwhile for you to note that nonstandard specifications are available upon request!
Additionally, a variety of metal sheet thicknesses are available from Tec-Sieve in response to the corresponding load-bearing requirements, and they include 1.5mm, 2mm, 2.5mm, 3mm, 3.5mm and so on.

Product Name
Perforated Grip Strut Grating
Material
Mild Steel, Pre-Galvanised Steel, Aluminium, Stainless Steel, Corten Steel etc.
Specifications
Stainless Steel, Hot Rolled Steel, Cold Rolled Steel, Aluminum plate
Thickness
0.5mm-4mm (additional thickness are available on request)
Hole Size
2mm-50mm (other hole sizes are also available)
Width
Customized
Length
Customized
Application
Ideal for elevated applications such as suspended walkways or conveyor catwalks, these channels provide safe, economical, slip resistant options for long span walkways.
Note
Perforations must be the same or larger in size than the material thickness.

Item No. Item Description Standard Width Standard Channel Depth Standard Length
1 2-Diamond Plank 4.75'' (120.65mm)

1.5'', 2'' and 2.5''

(38.1mm, 50.8mm and 63.5mm)

10' and 12'

(3048mm and 3657.6mm)
2 3-Diamond Plank

7''

(120.65mm)

1.5'', 2'', 2.5'' and 3''

(38.1mm, 50.8mm, 63.5mm and 76.2mm)

10' and 12'

(3048mm and 3657.6mm)
3 4-Diamond Plank

9.5''

(241.3mm)

1.5'', 2'', 2.5'' and 3''

(38.1mm, 50.8mm, 63.5mm and 76.2mm)

10' and 12'

(3048mm and 3657.6mm)
4 5-Diamond Plank

11.75''

(298.45mm)

1.5'', 2'', 2.5'' and 3''

(38.1mm, 50.8mm, 63.5mm and 76.2mm)

10' and 12'

(3048mm and 3657.6mm)
5 8-Diamond Plank

18.75''

(476.25mm)

1.5'', 2'', 2.5'' and 3''

(38.1mm, 50.8mm, 63.5mm and 76.2mm)

10' and 12'

(3048mm and 3657.6mm)
6 10-Diamond Plank

24''

(609.6mm)

2'' and 3''

(50.8mm and 76.2mm)

10' and 12'

(3048mm and 3657.6mm)
7 10-Diamond Walkway

24''

(609.6mm)

4.5''

(114.3mm)

10' and 12'

(3048mm and 3657.6mm)

Flat Aluminum Crocodile Mouth Anti Slip Stair Treads Walkway Plank Sheet Panel Roof Diamond Grip Strut Safety Grating

Item No. Item Description Standard Width Standard Channel Depth Standard Length
1 2-Diamond Plank 4.75'' (120.65mm)

1.5'', 2'' and 2.5''

(38.1mm, 50.8mm and 63.5mm)

10' and 12'

(3048mm and 3657.6mm)
2 3-Diamond Plank

7''

(120.65mm)

1.5'', 2'', 2.5'' and 3''

(38.1mm, 50.8mm, 63.5mm and 76.2mm)

10' and 12'

(3048mm and 3657.6mm)
3 4-Diamond Plank

9.5''

(241.3mm)

1.5'', 2'', 2.5'' and 3''

(38.1mm, 50.8mm, 63.5mm and 76.2mm)

10' and 12'

(3048mm and 3657.6mm)
4 5-Diamond Plank

11.75''

(298.45mm)

1.5'', 2'', 2.5'' and 3''

(38.1mm, 50.8mm, 63.5mm and 76.2mm)

10' and 12'

(3048mm and 3657.6mm)
5 8-Diamond Plank

18.75''

(476.25mm)

1.5'', 2'', 2.5'' and 3''

(38.1mm, 50.8mm, 63.5mm and 76.2mm)

10' and 12'

(3048mm and 3657.6mm)
6 10-Diamond Plank

24''

(609.6mm)

2'' and 3''

(50.8mm and 76.2mm)

10' and 12'

(3048mm and 3657.6mm)
7 10-Diamond Walkway

24''

(609.6mm)

4.5''

(114.3mm)

10' and 12'

(3048mm and 3657.6mm)

CAUTION:
Custom lengths, widths and channel depths are available upon request!

Diamond plank grating has a wide range of widths - from 4 3/4" (2-Diamond) to 24" (10-Diamond) for different applications. For example, standard walkway grating is usually 10-Diamond, and stair treads is available from 2-Diamond to 5-Diamond. Custom widths are welcome.

Flat Aluminum Crocodile Mouth Anti Slip Stair Treads Walkway Plank Sheet Panel Roof Diamond Grip Strut Safety Grating

Flat Aluminum Crocodile Mouth Anti Slip Stair Treads Walkway Plank Sheet Panel Roof Diamond Grip Strut Safety Grating

Flat Aluminum Crocodile Mouth Anti Slip Stair Treads Walkway Plank Sheet Panel Roof Diamond Grip Strut Safety Grating
Features
Features: Anti-skid, anti-rust and anti-corrosion, uniform hole size, durable, without burs and broken holes, and lightweight design providing high strength-to-weight ratio and virtually maintenance free.
Surface pattern: Raised diamond pattern configuration in metal struts offering slip resistance in all directions of the steel grating.
Flat Aluminum Crocodile Mouth Anti Slip Stair Treads Walkway Plank Sheet Panel Roof Diamond Grip Strut Safety Grating
Applications
Industrial walkways and platforms
Rooftop walkways and mezzanine flooring
Stair treads and ladders
Rack decking and work platforms
Signboard walkways

Flat Aluminum Crocodile Mouth Anti Slip Stair Treads Walkway Plank Sheet Panel Roof Diamond Grip Strut Safety Grating

Advantages
1.Easy to maintain ,installation .2.Liquid slurry, ice ,snow in fast filtration channels .
3.High bearing capacity --High strength to weight ratio
4.Longer life than similar products
5.Light weight--easy to install and manufacturer
