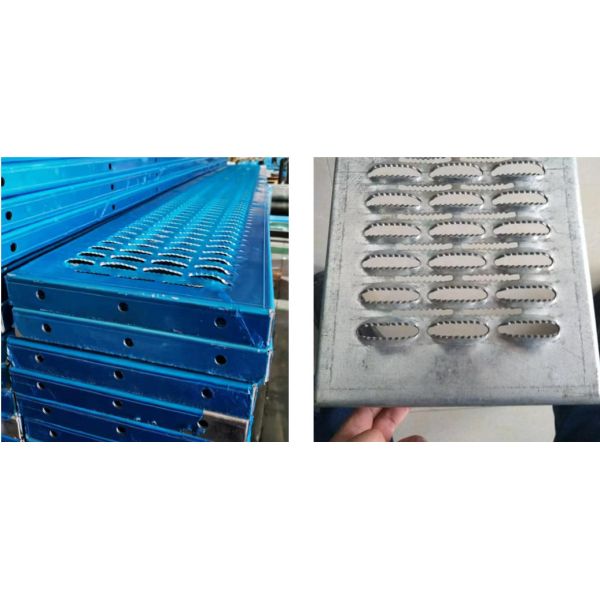

Heavy Duty Diamond Holes Grip Strut Plank Catwalk Grating
Heavy Duty Diamond Holes Grip Strut Plank Catwalk Grating
Heavy Duty Diamond Holes Grip Strut Plank Catwalk Grating
Heavy Duty Diamond Holes Grip Strut Plank Catwalk Grating
Specifications
Brand Name :
QIJIE
Model Number :
grip strut grating
Certification :
iso
Place of Origin :
hebei,China
MOQ :
100pcs
Payment Terms :
30%TT in advance,Balance before loading
Supply Ability :
1000pcs per month
Delivery Time :
15-18days
Packaging Details :
Pallets
Material :
Aluminum,Galvanized Steel Wire
products name :
grip strut grating
Type :
Perforated Mesh,Etching or stamping
Technique :
Perforated
Weave style :
perforated,Punched,Punching
Hole shape :
Round,diamond,etc,plum blossom,octagonal
Surface treatment :
Spray coating/Spray painting/Fluorocarbon coating,Hot Dipped Galvanized,galvanized and fluoroca
Color :
All the color chip have,White,blue,Silver,golden
Product name :
hexagonal perforated metal sheet,expandable sdiamond mesh
Thickness :
0.5-8mm,0.3MM- 8MM
Feature :
Corrosion Resistance,Good-looking and good quality,Durable,Acid resistance,anti-resistance
Width :
1m or 1.22m,1.22 m or below
Usage :
etc.,decorative,oil/air filter,food
Length :
2m or 2.44m
Size :
Customized Size,standard
Shape :
square,Can be cut into round or square shape,Round Shape,oval,Hexagon
Pitch :
1.0mm-100MM,or as request.
Email :
devin@industrialmetalmesh.com
whatsapp :
+8615369013183
Description

Heavy Duty Diamond Holes Grip Strut Plank Catwalk Grating

The grip strut plank grating includes regular and heavy duty types, which can be 10' or 12' lengths and 4.75'' to 24'', diamonds
of ,channel heights of , metal wall thick of 12 & 14 ga. Pre-Galvanized and Plain Steel, 10 & 12 ga. 5052-H32 Aluminum, 16 ga.Stainless Steel 304 and 316 ,Widths 4-3/4'', 7'', 9-1/2'', 11-3/4'', 18-3/4'', 24'' , Heights 1-1/2'', 2'', 2-1/2'',3''Lengths,or cut to size, with necessary accessories of splice plates, anchor plates, diamond washer bolt kits.

Notice: The channel depth and metal thick are the key of high load capacity.

Grip Strut Safety Plank Grating Advantages

√ Reducing accident rates by providing a tiny serrated surface in all directions when walking
√ Meet American Federal Standard RR-G-1602D and OSHA requirements
√ Lightweight to assemble easily
√ High strength to provide enough load capacity and longer spans
√ Professional grating devices in different applications for you
√ Right angle channel bending to enlarge the higher strength and long life
√ Open Diamond design allowing a clean surface out of fluids, mud, chips, and debris.
√ No need to maintain
Heavy Duty Diamond Holes Grip Strut Plank Catwalk Grating

Grip struct perforated steel grating

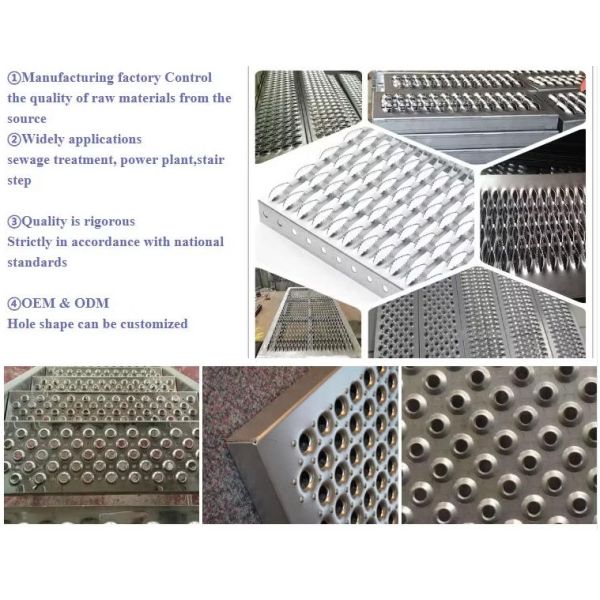

Diamond Grip Strut Safety Plank Grating provides a maximum safety and slip resistant option against mud, ice, snow, grease, oil or detergents on plank, walkways, catwalks, stairs, etc. The plank grating is usually made of lightweight Low carbon steel Q235, pre-galvanized steel plate, Stainless steel 304 or 316, go througn cutting the right size easily, punching the serrated diamond hole, and bending into depth as your required.

The grip strut plank grating includes regular and heavy duty types, which can be 10' or 12' lengths and 4.75'' to 24'', diamonds
of ,channel heights of , metal wall thick of 12 & 14 ga. Pre-Galvanized and Plain Steel, 10 & 12 ga. 5052-H32 Aluminum, 16 ga.Stainless Steel 304 and 316 ,Widths 4-3/4'', 7'', 9-1/2'', 11-3/4'', 18-3/4'', 24'' , Heights 1-1/2'', 2'', 2-1/2'',3''Lengths,or cut to size, with necessary accessories of splice plates, anchor plates, diamond washer bolt kits.

Notice: The channel depth and metal thick are the key of high load capacity.

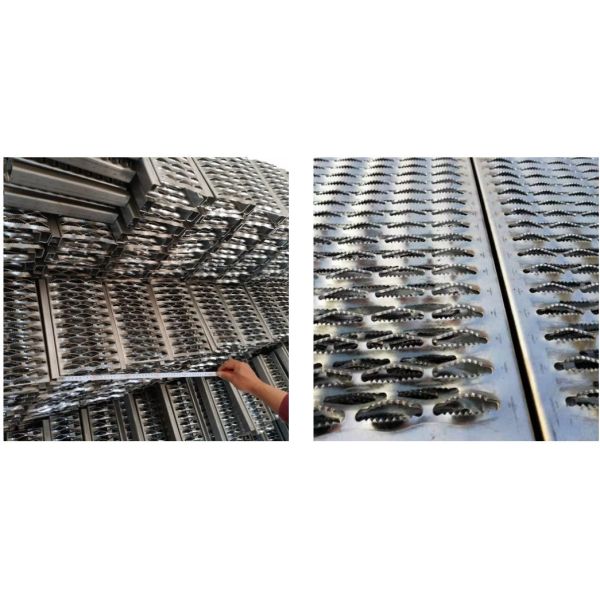

  • Grip struct perforated steel grating is a one-piece metal plank grating manufactured from a single sheet with formed side channels. The perforated buttons provide a walking surface that is slip resistant in all directions. Open area of approximately 35% allow fluids, ice, and mud to easily flow through the grating. The walking surface of Grip has resiliency that cushions footfalls, thus decreasing worker fatigue and increasing plant productivity. Benefits of Perf-O Grip include:
  • Slip-resistant walking surface
  • Easy to fabricate and install
  • Safe, versatile, and durable
  • Low maintenance

Heavy Duty Diamond Holes Grip Strut Plank Catwalk Grating

Heavy Duty Diamond Holes Grip Strut Plank Catwalk Grating

Item No. Item Description Standard Width Standard Channel Depth Standard Length
1 2-Diamond Plank 4.75'' (120.65mm)

1.5'', 2'' and 2.5''

(38.1mm, 50.8mm and 63.5mm)

10' and 12'

(3048mm and 3657.6mm)
2 3-Diamond Plank

7''

(120.65mm)

1.5'', 2'', 2.5'' and 3''

(38.1mm, 50.8mm, 63.5mm and 76.2mm)

10' and 12'

(3048mm and 3657.6mm)
3 4-Diamond Plank

9.5''

(241.3mm)

1.5'', 2'', 2.5'' and 3''

(38.1mm, 50.8mm, 63.5mm and 76.2mm)

10' and 12'

(3048mm and 3657.6mm)
4 5-Diamond Plank

11.75''

(298.45mm)

1.5'', 2'', 2.5'' and 3''

(38.1mm, 50.8mm, 63.5mm and 76.2mm)

10' and 12'

(3048mm and 3657.6mm)
5 8-Diamond Plank

18.75''

(476.25mm)

1.5'', 2'', 2.5'' and 3''

(38.1mm, 50.8mm, 63.5mm and 76.2mm)

10' and 12'

(3048mm and 3657.6mm)
6 10-Diamond Plank

24''

(609.6mm)

2'' and 3''

(50.8mm and 76.2mm)

10' and 12'

(3048mm and 3657.6mm)
7 10-Diamond Walkway

24''

(609.6mm)

4.5''

(114.3mm)

10' and 12'

(3048mm and 3657.6mm)
