Heavy-Stranded Razor Barbed Wire for Reinforced Fences with Multiple Wires
Heavy-Stranded Razor Barbed Wire for Reinforced Fences with Multiple Wires
Heavy-Stranded Razor Barbed Wire for Reinforced Fences with Multiple Wires
Heavy-Stranded Razor Barbed Wire for Reinforced Fences with Multiple Wires
Specifications
Payment Terms :
30%TT in advance,Balance before loading
Technique :
Welded Mesh
Normal blade type :
BTO-22, BTO-30, CBT-60, CBT-65
Model Number :
qijie
whatsapp :
+8615369013183
Supply Ability :
1500 Roll/Rolls per Week
Material :
Stainless Steel Wire, 316, 304, plain steel galvanized
MOQ :
1 rolls
Delivery Time :
within 7-30 days
Email :
devin@industrialmetalmesh.com
Price :
Discuss
Application :
Screen, Protecting Mesh
Hole shape :
Square Hole, rectangule hole
Packaging Details :
Wooden carton
Brand Name :
QiJie
Certification :
qijie
Place of Origin :
HeBei,China
Description
Heavy-Stranded Razor Barbed Wire for Reinforced Fences with Multiple Wires​

Razor barbed wire is a type of protective net, which is woven by professional weaving machines using well-processed steel wires and blades. There are types such as straight razor barbed wire and spiral razor barbed wire. It is commonly used as protective nets for prisons, pastures, and highways.

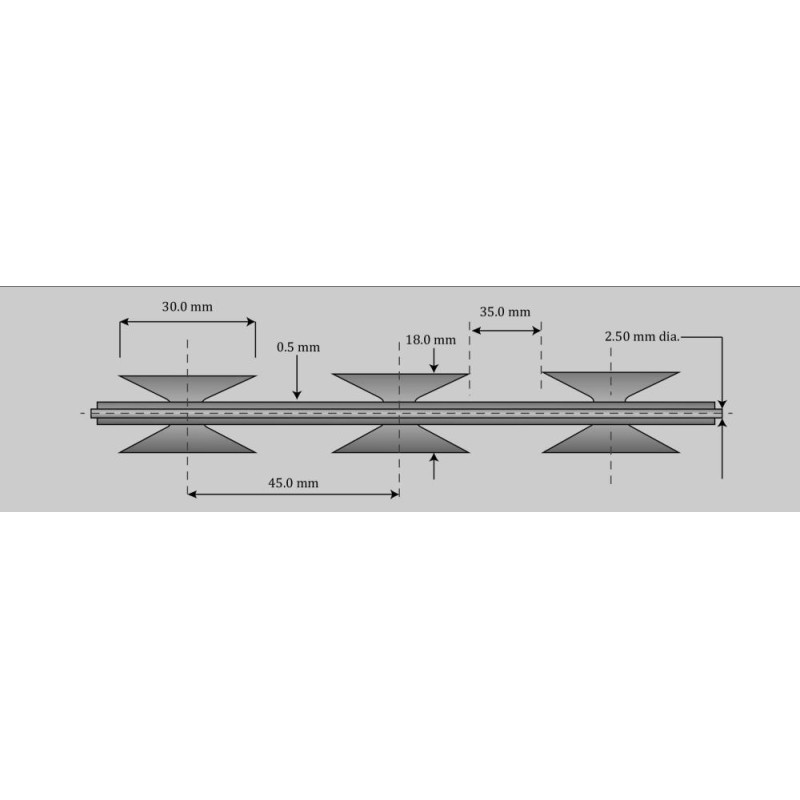

BTO-30 Blade Specifications

Blade Type Barb Thickness Barb Length Barb Width Barb Spacing Core Wire Diameter
BTO-30 0.5 ± 0.05 30.0 ± 1 18 ± 1 45 ± 2 2.5 ± 0.1

Heavy-Stranded Razor Barbed Wire for Reinforced Fences with Multiple Wires

Concertina Flat Wrap Razor Wire Fencing Sizes and Specifications

Flat Wrap Razor Wire
Model BTO-30 CBT-60 CBT-65
Pattern Heavy-Stranded Razor Barbed Wire for Reinforced Fences with Multiple Wires Heavy-Stranded Razor Barbed Wire for Reinforced Fences with Multiple Wires Heavy-Stranded Razor Barbed Wire for Reinforced Fences with Multiple Wires
Thickness 0.5mm+/-0.05mm 0.5mm+/-0.05mm 0.5mm+/-0.05mm
Core Wire Diameter 2.5mm+/-0.1mm 2.5mm+/-0.1mm 2.5mm+/-0.1mm
Blade Length 30mm+/-1mm 60mm+/-1mm 65mm+/-1mm
Blade Width 18mm+/-1mm 32mm+/-1mm 21mm+/-1mm
Blade Space 45mm+/-1mm 100mm+/-1mm 100mm+/-1mm
Coil Diameter 900/700/500/450mm 900/700/500/450mm 900/700/500/450mm
No. of Loops 34/41/53 34/41/53 34/41/53
Covering Length 8/10/13m 8/10/13m 8/10/13m
Coil Type Single Single Single

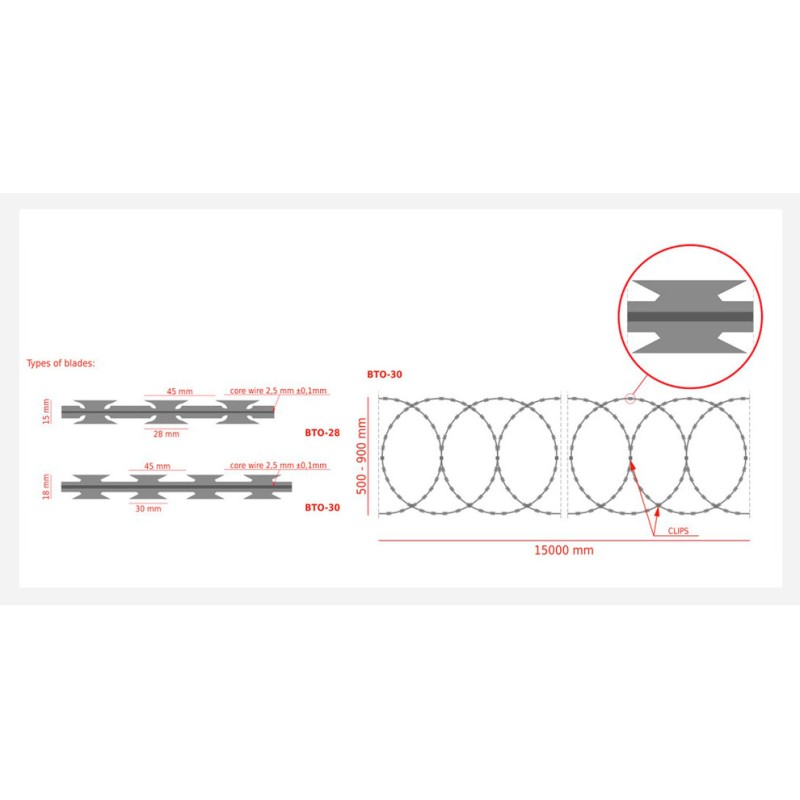

Diagram of Concertina Flat Wrap Razor Wire Fencing

Heavy-Stranded Razor Barbed Wire for Reinforced Fences with Multiple Wires

Razor barbed wire packages:
1. Waterproof paper and woven bag, and then tied by steel strip.
2. Carton (Mostly for stainless steel concertina wire).
3. Fumigation Wooden Pallet.
4. Customized.

Application:

Application of Concertina Flat Wrap Razor Wire Fencing

  • Facilities

  • Industrial and Construction Sites

  • Laboratories and Research Facilities

  • Prisons and Correctional Facilities like Prison Fence Wire

Heavy-Stranded Razor Barbed Wire for Reinforced Fences with Multiple Wires
Application of concertina razor barbed wire
Razor Barbed Wire is widely used in airport , prison, government, bank, and also in living wall, personal house, villatic wall, window, autobahn, railway and border of the fence.

Packing of concertina razor barbed wire
compression rolls, water-proof paper inside, woven bag outside or in carton

Heavy-Stranded Razor Barbed Wire for Reinforced Fences with Multiple Wires
Heavy-Stranded Razor Barbed Wire for Reinforced Fences with Multiple Wires
