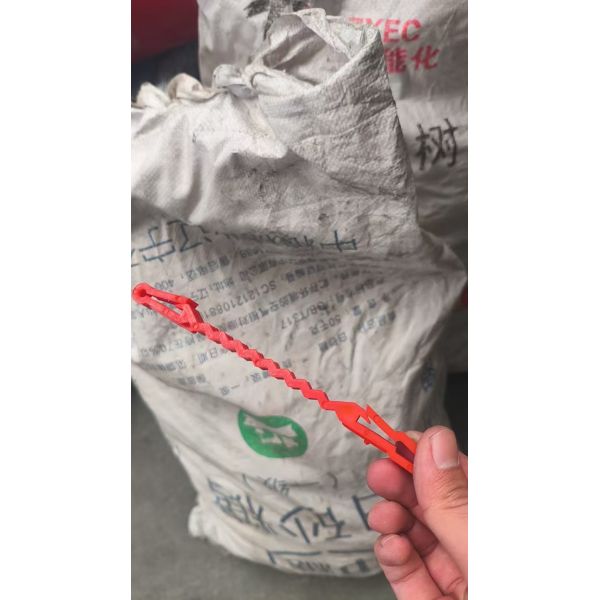

Red Plastic Support Clips That Go Between The Concertina Wire And The Wire​

Our electric blade fence line was welcomed by many electronic fence construction units once it is launched!

Blade thickness: 0.4-0.45 mm

Blade length: 22 mm

Blade width: 15 mm

Blade spacing: 34mm

In the middle of the core wire, it uses 0.8 mm diameter copper wire and outside uses 2.5 mm diameter high quality plastic, which provides good compression resistance.

The circle is of 500 mm diameter, 25 cm construction spacing and 10 meters construction length of each bundle.

The main application of electric concertina razor wire is suitable for electronic fence. It is a branch of the electronic fence, scientific name is electronic blade fence. It improves the original electronic fence line by adding a layer of the blade on the outside, which makes people do not dare to touch when seeing the fence.

Blade specifications:

BTO - 22

Blade length: 22 mm

Blade width: 15 mm

Blade thickness: 0.45mm

Blade spacing: 34mm

Inner copper wire diameter: 0.8 mm

Outside diameter: 2.6 mm

Surface color: grey

Weight of electric razor wire: 55 grams per meter

Usually 100 meters per bundle, customized is also available but not more than 400 meters.

Electric Concertina Razor Wire:

Concertina Razor Wire Fence / Electric Concertina Razor Wire (safety fence):

There is no big difference with the common razor wire, it just adds a piece of copper wire in the conductor. If there is theft, cut, or any destroy action break the barbed wire, the corresponding alarm will ring. It plays a good role in high security protection. It is suitable for places need protection such as factory, construction site, communities, railway, highway, airport and so on.

Electrified Concertina Razor Wire -001

Electrified Concertina Razor Wire -002

Electrified Concertina Razor Wire -003

Electrocoil has been designed to provide an intruder detection signal and if required can also provide a high voltage shock.

Low cost

Simple to erect

Effective

False alarm minimised

Specifications - Standard Coil Sizes

Coil Type

450E

730E

980E

Diameter (when packed)

450 mm

730 mm

980 mm

Stretch Distance (approx)

8 m

11 m

13 m

Inner Coil Diameter (approx)

250 mm

350 mm

500 mm

electrocoil,Concertina Wire Razor Electric Fencing System, Electrified Concertina Razor Wire

Outer Coil

Concertina razor wire.

Inner Coil

3 mm diameter smooth galvanised wire

Insulators

Modulated Poly-Vinyl Chloride compound ( Anti-UV ).

Fire resistant.

Resists 16000 Volts wet condition and 25000 Volts dry condition.

Energizer

Electrification distance: 1000 - 2000m includes :

220V / 12 V transformer.

Battery - 48 hour reservoir.

Battery charger.

Can be operated with 220 Volt supply or solar cells.

A standard 12 Volt car battery will provide approximately 10 days supply of power.

Note: Specifications may change without notice.
