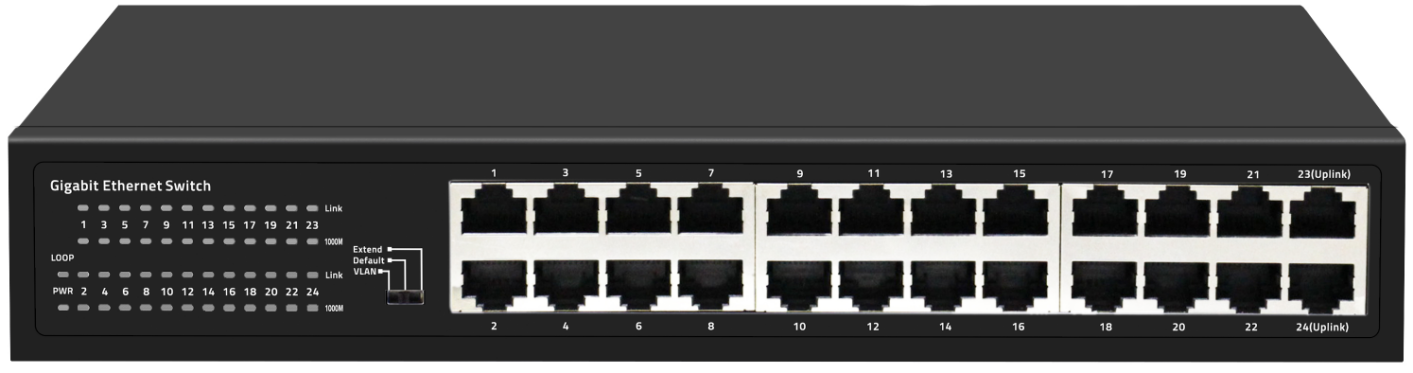

24-port Unmanaged VLAN/Extend/Loop Gigabit Ethernet Switch

Introduction

The 24-port 10/100/1000Mbps desktop Ethernet switch is built with a high-performance network intelligent chip and features a fan-less silent structure, effectively eliminating noise interference in office scenarios.

It is equipped with 24 Gigabit RJ45 ports supporting 10/100/1000M adaptive connection and one-key smart mode switching, delivering stable and easy-to-manage network performance for daily networking and engineering applications.

Compliant with mainstream Ethernet standards, it ensures wide compatibility and reliable data transmission for various network environments.

Specification

Key Features

• 24*10/ 100/ 1000M RJ45 Ports
• Apply to IEEE802.3, IEEE802.3u, IEEE802.3ab standard
• Ethernet port supports 10/100/1000M adaptive
• Support auto MDI/ MDIX
• Panel indicators to monitor working status and help fault analysis
• One-key smart switch, support VLAN, Default, Extend three modes
• Flow control, full duplex adopts IEEE802.3x standard, half duplex adopts Back pressure standard
• Port 1-8 supports QoS data priority
• Support loop alarm

Packing Information

• 1pc switch(neutral device)
• 1pc power cable(standards vary across countries)
• 1pc user manual(including QIG information)
• 1pair mounting brackets(rack mountable)

Shipping box information(Below information is approximately accurate)

Product size: 270*180*44.5mm

Inner box size: 312*262*84mm

Product weight: 1.16Kg

Packing weight: 1.66Kg

Master box size: 540*435*332mm

Packing quantity: 10Pcs

Packing weight: 17.6Kg

Remark

Accessories(Network cable etc.)are NOT included in the packing box

Power cable is included in BOTH the packing box AND unit pricing
