Specifications
Brand Name :
Olycom
Model Number :
TA-7024GE-U
Certification :
CE RoHS FCC
Place of Origin :
Shenzhen, China
MOQ :
1pc
Price :
negotiable
Payment Terms :
T/T, PayPal
Supply Ability :
1000Pcs per month
Delivery Time :
4~8 working days
Packaging Details :
1 piece in a box, 2.7Kg gross weight
Product Name :
24 Port 1G Commercial Network Switch
Ethernet Speed :
24*10/100/1000Mbps
Feature :
Unmanaged, non-PoE
Power :
Single AC Input(100-240V)
Customization :
YES
Fan :
Fanless design
Mounting :
Rack mountable
Description

Olycom 24-port Gigabit Ethernet switch with VLAN/Extend mode

Introduction
The TA-7024GE-U is a high-performance 24-port Gigabit Ethernet switch designed for stable and efficient network connectivity.
Powered by a reliable and intelligent switching chipset, it delivers seamless 10/100/1000Mbps data transmission across all ports.
With a fanless design, the switch ensures silent operation, making it ideal for noise-sensitive environments such as offices and commercial spaces.
Its plug-and-play functionality, combined with one-key smart switching modes, allows for easy deployment, management, and maintenance.
Specification

Product Name

24 Port 10/100/1000Mbps Rack Type Ethernet Switch

Port

24x10/100/1000M UTP RJ45(Support MDI/MDIX, auto-sensing)

Switching Capacity

48Gbps

Throughput

35.71Mpps

Packet Buffer

4M

MAC Address

8K

Jumbo Frame

4Kbytes

Transfer Mode

Store and forward

MTBF

100000 hours

Network Protocol

IEEE802.3(10Base-T)

IEEE802.3u(100Base-TX)

IEEE802.3ab(1000Base-TX)

IEEE802.3x(Flow control)

Industry Standard

EMI: FCC Part 15 CISPR(EN55032)class A

EMS: EN61000-4-2(ESD)

EN61000-4-5(Surge)

Network Medium

10Base-T: Cat3, 4, 5 or above UTP(≤100m)

100Base-TX: Cat5 or above UTP(≤100m)

1000Base-TX: Cat5 or above UTP(≤100m)

Certification

CE/FCC/RoHS

Working Environment

Working Temperature: -10℃~50℃

Storage Temperature: -40℃~70℃

Working Humidity: 10%~90%, non-condensing

Storage Temperature: 5%~95%, non-condensing

Input Voltage

AC100-240V, Single Power Input

Internal AC-DC Converter: 12V2A

LED Indicators

PWR(Power indicator)/LOOP(Loop alarm)/Link(Network Link)/1000M

DIP Switch

VLAN: Port Isolation, 1-22 ports are isolated each other, all communicate with uplink port 23/24

Default: Default mode, support loop alarm

Extend: Monitor Mode, 1-22 ports support 100M speed reduction negotiation, support 250 meters in 10M/s mode, port 23/24 as uplink port
Key Features
  • 24 × 10/100/1000Mbps RJ45 ports with auto-negotiation and auto MDI/MDIX
  • Compliant with IEEE802.3, IEEE802.3u, and IEEE802.3ab standards
  • One-key smart switching: VLAN / Default / Extend modes
  • VLAN mode for port isolation, enhancing network security
  • Extend mode supports up to 250m transmission (10Mbps)
  • QoS priority on ports 1–8 for optimized traffic management
  • Built-in loop detection and alarm function
  • Fanless design for silent and reliable operation
  • LED indicators for real-time network status monitoring
  • High switching capacity of 48Gbps with stable data forwarding
Packing Information

1pc switch(neutral device)

1pc power cable(standards vary across countries)

1pc user manual(including QIG information)

1pair mounting brackets(rack mountable)

Product size: 440*204*44.5mm

Inner box size: 500*275*85mm

Product weight: 2.2Kg

Packing weight: 2.7Kg

Master box size: 520*445*300mm

Packing quantity: 5Pcs

Packing weight: 14.5Kg

Remark

Accessories(Network cable etc.)are NOT included in the packing box

Power cable is included in BOTH the packing box AND unit pricing

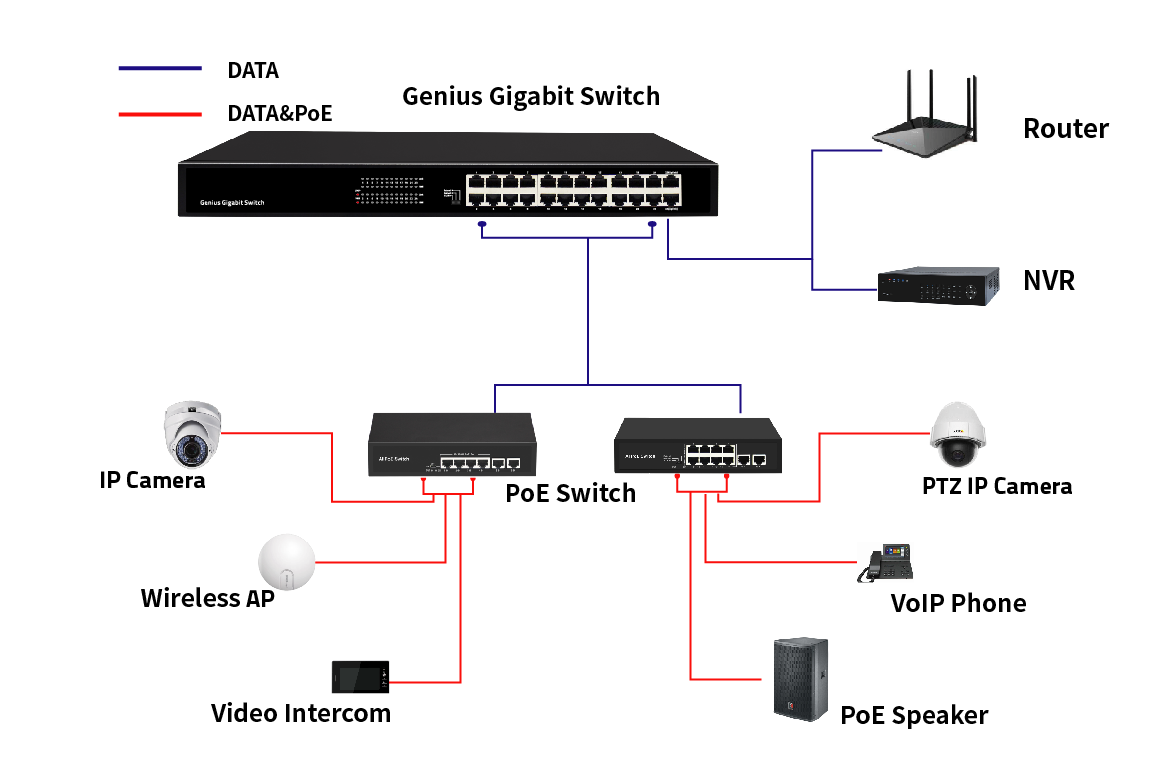

Application Diagram
