Sharp LCD Panel LQ10D367 10.4 inch 211.2×158.4 mm Active Area 246.5×179.4×11 mm Outline
Sharp LCD Panel LQ10D367 10.4 inch 211.2×158.4 mm Active Area 246.5×179.4×11 mm Outline
Specifications
Brand Name :
Sharp LCD Panel
Model Number :
LQ10D367
Certification :
ISO9001
Place of Origin :
Japan,Korea
MOQ :
1 piece
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
100 PCS PER DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Brand :
SHARP
Panel Model :
LQ10D367
Panel Type :
a-Si TFT-LCD , Panel
Panel Size :
10.4 inch
Brightness :
200 cd/m² (Typ.)
Contrast Ratio :
100:1 (Min.)
Display Colors :
262K (6-bit)
Response Time :
20/40 (Typ.)(Tr/Td)
Description

Sharp LCD Panel LQ10D367 10.4 inch 211.2×158.4 mm Active Area 246.5×179.4×11 mm Outline

Our Service

1. Small quantity also can be provided.

2. New models can be updated fast.
3. We have strict QC team to make sure all products are qualified before delivery.
4. One year warranty promise

What is Our Advantage?

1. We are the professional supplier of the industrial LCD Screen Replacements,located in the biggest components center of the world.

2. We can provide the one-stop purchase service.

3. Our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.

4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.

5. Fast delivery.

6. Reasonable price.

SHARP LQ10D367 General Features

Panel Brand : SHARP
Panel Model : LQ10D367
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 10.4 inch
Resolution : 640(RGB)×480 , VGA
Display Mode : TN, Normally White, Transmissive
Active Area : 211.2×158.4 mm
Outline : 246.5×179.4×11 mm
Surface : Antiglare (Haze 28%), Hard coating (3H), Antireflection
Brightness : 200 cd/m² (Typ.)
Contrast Ratio : 100:1 (Min.)
Display Colors : 262K (6-bit)
Response Time : 20/40 (Typ.)(Tr/Td)
Viewing Angle : 70/70/40/70 (Typ.)(CR≥10) (L/R/U/D)
Lamp Type : 1 pcs CCFL
Signal Interface : Parallel RGB (1 ch, 6-bit) , 31 pins
Input Voltage : 5.0V (Typ.)(VCC)

SHARP LQ10D367 Mechanical Features

Panel Size : 10.4 inch
Dot Resolution : 640(RGB)×480 (VGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 76 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.110×0.330 mm (H×V)
Pixel Pitch : 0.330×0.330 mm (H×V)
Weight : 625g (Typ.)
Surface : Antiglare (Haze 28%), Hard coating (3H), Antireflection
Active Area : 211.2×158.4 mm (H×V)
Bezel Area : 216.2×163.4 mm (H×V)
Outline Dimension : 246.5×179.4 mm (H×V)
Outline Depth : 10.5±0.5 mm
Holes & Brackets : Face mounting holes (2-Φ3.4, 2-R1.7×4.4) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without

Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Model Brand Size Resolution
LQ055T3SX04 SHARP 5.5" 1080×1920
LQ079L1SX06 SHARP 7.9" 1536×2048
LQ079L1SX04 SHARP 7.9" 1536×2048

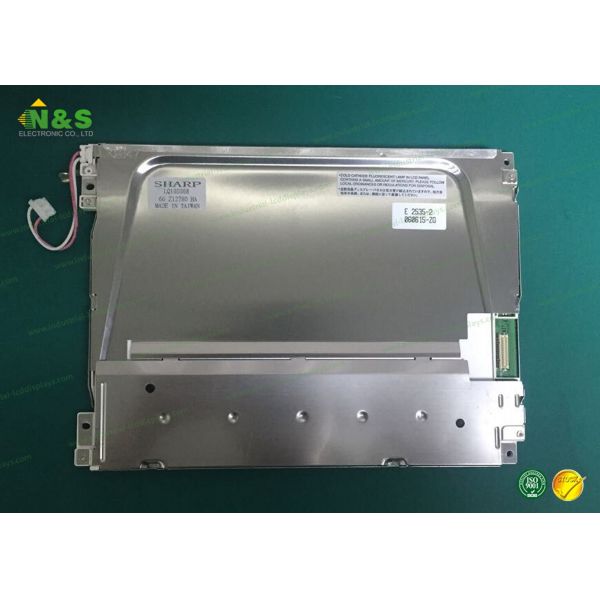

Details Pictures for Sharp LCD Panel LQ10D367

Sharp LCD Panel LQ10D367 10.4 inch 211.2×158.4 mm Active Area 246.5×179.4×11 mm Outline
