LQ048Y3DH01 Sharp LCD Panel 4.8 inch LCD screen for garmin nuvi 1860 GPS
LQ048Y3DH01 Sharp LCD Panel 4.8 inch LCD screen for garmin nuvi 1860 GPS
Specifications
Brand Name :
Sharp
Model Number :
LQ048Y3DH01
Certification :
ISO9001
Place of Origin :
korea
MOQ :
1
Payment Terms :
Western Union, MoneyGram, T/T
Supply Ability :
500PCS/DAY
Delivery Time :
2-3 Working Days after order confirmation
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Brand :
SHARP
Panel Model :
LQ048Y3DH01
Panel Type :
a-Si TFT-LCD , LCM
Panel Size :
4.8 inch
Resolution :
800×480(RGB) , WVGA
Display Mode :
TN, Normally White, Transmissive
Description

LQ048Y3DH01 Sharp LCD Panel 4.8 inch LCD screen for garmin nuvi 1860 GPS

LQ048Y3DH01 Specification

Panel Brand : SHARP
Panel Model : LQ048Y3DH01
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 4.8 inch
Resolution : 800×480(RGB) , WVGA
Display Mode :
TN, Normally White, Transmissive
Active Area : 104.4×62.64 mm
Outline : 116.5×77.9 mm
Surface : Antiglare, Hard coating (2H)
Brightness : 400 cd/m² (Typ.)
Contrast Ratio : 300:1 (Typ.)
Display Colors : 16.7M (6-bit + Hi-FRC) , CIE1931 47%
Response Time : 30/30 (Typ.)(Tr/Td)
Viewing Angle :
45/45/20/55 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 7S2P WLED Without Driver
Signal Interface : Parallel RGB (1 ch, 8-bit) + SPI , 67 pins
Input Voltage : 1.8/2.85V (Typ.)(VDDIO/VCI)

Panel Size : 4.8 inch
Dot Resolution : 800×480(RGB) (WVGA)
Pixel Configuration : RGB Horizontal Stripe
Pixel Density : 194 PPI
Aspect Ratio : 15:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.1305×0.0435 mm (H×V)
Pixel Pitch : 0.1305×0.1305 mm (H×V)
Weight :
65g
Surface : Antiglare, Hard coating (2H)
Active Area : 104.4×62.64 mm (H×V)
Bezel Area : 108.68×66.46 mm (H×V)
Outline Dimension : 116.5×77.9 mm (H×V)
Outline Depth : 4.35±0.25 mm
Landscape or Portrait : Landscape type
Touch Panel : Embeded (4-wire Resistive)

Our Advantage

As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:

  1. AUO LCD Screen
  2. Samsung LCD Display
  3. LG LCD Screen replacements
  4. Sharp LCD panels &Chimei LCD Parts.
  5. Innolux LCD Modules & BOE LCD Screen.

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
LQ079L1SX06 SHARP 7.9" 1536×2048
LQ079L1SX04 SHARP 7.9" 1536×2048
LQ133M1JW08 SHARP 13.3" 1920×1080
LQ156D1JX02 SHARP 15.6" 3840×2160
LQ156Z1JW01 SHARP 15.6" 3200×1800

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

FAQ

Q1: What's price?

A1: We provide reasonable price and recommend suitable batteries to our customers.

Q2: What's delivery time?

A2: The delivery time is normally 1-3 working days after payment.

Q3: What's the payment?

A3: We accept T/T, Western Union, MoneyGram, Paypal

Q4: Can we visit your factory?

A4: Warmly welcome. Once we have your schedule, we will arrange professional sales team to follow up your case.

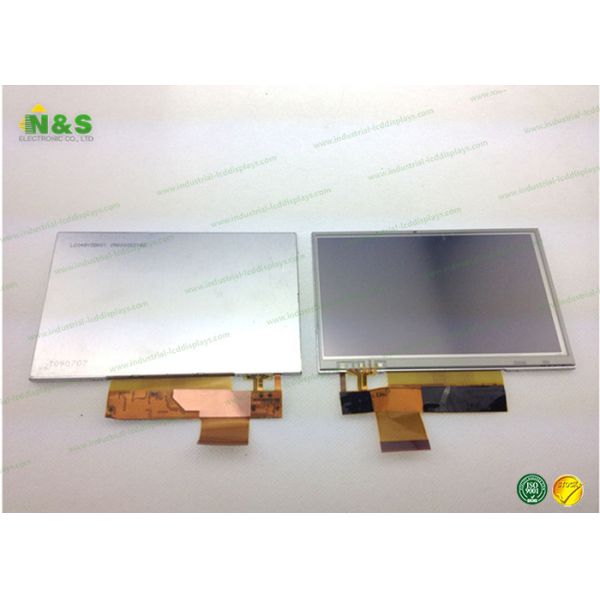

LQ048Y3DH01 Picture

LQ048Y3DH01 Sharp LCD Panel 4.8 inch LCD screen for garmin nuvi 1860 GPS
