Specifications
Brand Name :
SHARP
Model Number :
LQ154K1LA1F
Certification :
ISO9001
Place of Origin :
KOREA
MOQ :
1
Payment Terms :
Western Union, T/T, MoneyGram, T/T
Supply Ability :
500PCS/DAY
Delivery Time :
1-3WORK DAY
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Resolution :
1280(RGB)×800 , WXGA
Panel Size :
15.4 inch
Panel Type :
a-Si TFT-LCD , LCM
Active Area :
331.2×207 mm
Outline :
344×222×6.5 mm
Shape Style :
Wedge (PCBA Bent, Depth ≥5.2mm)
Description

15.4 inch LQ154K1LA1F Sharp LCD Panel Normally White LCM 1280×800 290 600:1 262K CCFL LVDS

Why Choose US:

1. Prompt reply within 12 hours.

2. Understand inquiry in any language.

3. Products with top quality.

4. Very competitive prices.

5. 6-year experience in industrial LCD Screen replacements.

6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.

7. Fabulous after-sale service.

Our Advantages

  • We can be your professional Agent & Sourcing Line for the Hard-to-find LCD screen replacements.
  • 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.
  • Welcome small, medium & big quantity orders.
  • 100% QC Inspection before Shipment.
  • After-sales-service With 12 Months Warranty for our LCD panels.

LQ154K1LA1F Detail

Panel Size : 15.4 inch
Dot Resolution : 1280(RGB)×800 (WXGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 98 PPI
Aspect Ratio : 16:10 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.08625×0.25875 mm (H×V)
Pixel Pitch : 0.25875×0.25875 mm (H×V)
Weight : 590/610g (Typ./Max.)
Surface :
Glare (Haze 0%), Hard coating (2H), Antireflection
Active Area : 331.2×207 mm (H×V)
Bezel Area :
336.2×211.9 mm (H×V)
Outline Dimension : 344×222 mm (H×V)
Outline Depth :
6.5 (Max.) mm
Shape Style : Wedge (PCBA Bent, Depth ≥5.2mm)
Holes & Brackets : Side mounting holes (8-M2) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel :
Without
Display Mode : TN, Normally White, Transmissive
Brightness : 290 cd/m² (Typ.)
Contrast Ratio : 600 : 1 (Typ.) (Transmissive)
Display Color : 262K (6-bit)
Response Time : 15 (Typ.)(Tr+Td)
Viewing Angle :
70/70/50/60 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 6 o'clock
White color Chromaticity :
Wx:0.313; Wy:0.329
White Variation : 1.20/1.45 (Typ./Max.)(5 points)
Sunlight Readable :
N

Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Model Brand Size Resolution
LQ079L1SX06 SHARP 7.9" 1536×2048
LQ079L1SX04 SHARP 7.9" 1536×2048
LQ133M1JW08 SHARP 13.3" 1920×1080
LQ156D1JX02 SHARP 15.6" 3840×2160
LQ156Z1JW01 SHARP 15.6" 3200×1800

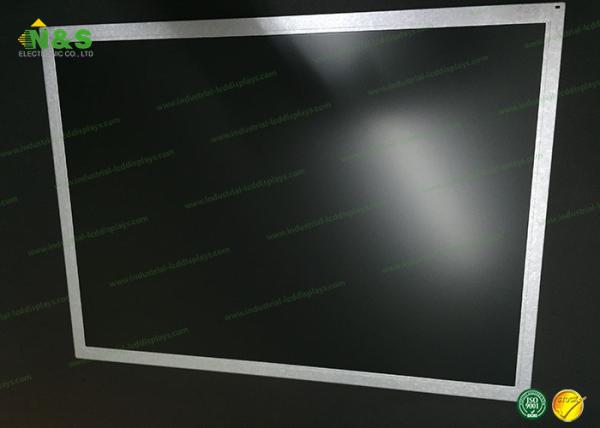

LQ154K1LA1F Picture

1280 *800 15.4 Inch sharp lcd replacement screen LQ154K1LA1F 16 / 10 Aspect Ratio
