LM201WE2-SLA1 1680×1050 470 lvds lcd panel 1600 / 1 Contrast Ratio
LM201WE2-SLA1 1680×1050 470 lvds lcd panel 1600 / 1 Contrast Ratio
LM201WE2-SLA1 1680×1050 470 lvds lcd panel 1600 / 1 Contrast Ratio
LM201WE2-SLA1 1680×1050 470 lvds lcd panel 1600 / 1 Contrast Ratio
LM201WE2-SLA1 1680×1050 470 lvds lcd panel 1600 / 1 Contrast Ratio
LM201WE2-SLA1 1680×1050 470 lvds lcd panel 1600 / 1 Contrast Ratio
Specifications
Brand Name :
LG
Model Number :
LM201WE2-SLA1
Certification :
ISO9001
Place of Origin :
korea
MOQ :
1
Payment Terms :
Western Union, MoneyGram, T/T
Supply Ability :
500PCS/DAY
Delivery Time :
2-3 Working Days after order confirmation
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Brand :
LG. LCD
Panel Model :
LM201WE2-SLA1
Panel Type :
a-Si TFT-LCD , LCM
Panel Size :
20.1 inch
Resolution :
1680(RGB)×1050 , WSXGA+
Display Mode :
S-IPS, Normally Black, Transmissive
Description

LM201WE2-SLA1 LG LCD Panel 20.1" LCM 1680×1050 470 1600:1 16.7M CCFL LVDS

LM201WE2-SLA1 Detail

Panel Brand : LG. LCD
Panel Model : LM201WE2-SLA1
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 20.1 inch
Resolution : 1680(RGB)×1050 , WSXGA+
Display Mode : S-IPS, Normally Black, Transmissive
Active Area : 433.44×270.9 mm
Outline : 461.4×296.8 mm
Surface : Glare (Haze 0%)
Brightness : 470 cd/m² (Typ.)
Contrast Ratio : 1600:1 (Typ.)
Display Colors : 16.7M (8-bit) , CIE1931 72%
Response Time : 5/7 (Typ.)(Tr/Td), 6 (Typ.)(G to G)
Viewing Angle : 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 10 pcs CCFL Embedded (Inverter)
Signal Interface : LVDS (2 ch, 8-bit) , 30 pins
Input Voltage : 12.0V (Typ.)

Our Advantage :

>>Quality Guarantee:

Our LCD Panels are 100% original and brand new!

Warranty : 12 months

You can enjoy the real panels directly from the LCD panel brand distributor.

>>Packing Guarantee:

All the products are in original package from original factory directly, and all the LCD panel packages with labels and serial number!

>>Delivery Guarantee:

We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you!

>>After-Sale service

We have many years good experience on display solution.

Any question, we will reply you within 12 hours.

FAQ

Q1: Can I place sample order first?

A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.

Q2: How could I pay them?

A2: We accept T/T, Western Union, MoneyGram, Paypal.

Q3: How to place the order?

A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.

Q4: How long can I get my order?

A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.

Q5: How to send us the products?

A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.

Panel Size : 20.1 inch
Dot Resolution : 1680(RGB)×1050 (WSXGA+)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 98 PPI
Aspect Ratio : 16:10 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.086×0.258 mm (H×V)
Pixel Pitch : 0.258×0.258 mm (H×V)
Weight : 2.68Kgs (Typ.)
Surface : Glare (Haze 0%)
Active Area : 433.44×270.9 mm (H×V)
Bezel Area : 438.4×275.9 mm (H×V)
Outline Dimension : 461.4×296.8 mm (H×V)
Outline Depth : 36.9 (Typ.) mm
Holes & Brackets : Face mounting holes
Landscape or Portrait : Landscape type
Touch Panel : Without

Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Model Brand Size Resolution
LQ055T3SX04 SHARP 5.5" 1080×1920
LQ079L1SX06 SHARP 7.9" 1536×2048
LQ079L1SX04 SHARP 7.9" 1536×2048
LQ133M1JW08 SHARP 13.3" 1920×1080

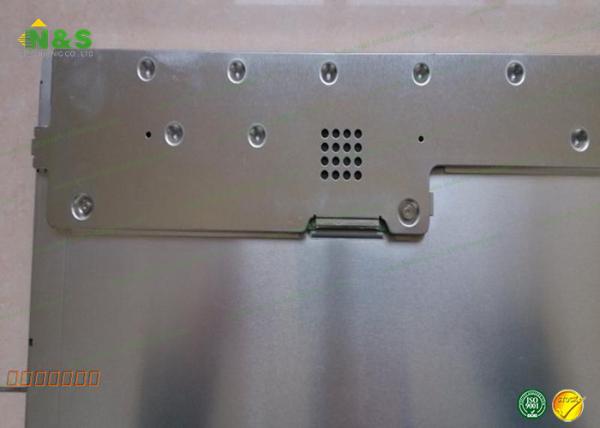

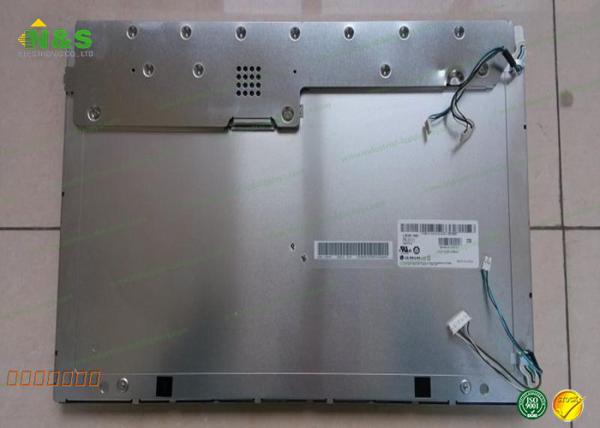

LM201WE2-SLA1 Picture
