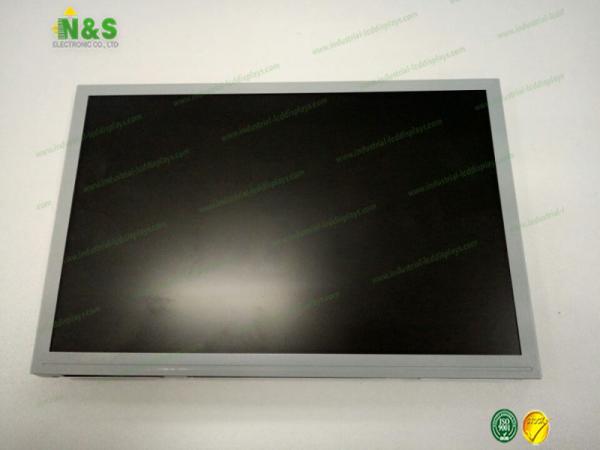

TFT LCD Industrial Touch Screen Display TCG121XGLPBPNN-AN40 Kyocera Active Area 245.76×184.32mm
TFT LCD Industrial Touch Screen Display TCG121XGLPBPNN-AN40 Kyocera Active Area 245.76×184.32mm
TFT LCD Industrial Touch Screen Display TCG121XGLPBPNN-AN40 Kyocera Active Area 245.76×184.32mm
TFT LCD Industrial Touch Screen Display TCG121XGLPBPNN-AN40 Kyocera Active Area 245.76×184.32mm
Specifications
Brand Name :
Kyocera
Model Number :
TCG121XGLPBPNN-AN40
Certification :
ISO9001
Place of Origin :
KOREA
MOQ :
1
Payment Terms :
Western Union, T/T, MoneyGram, T/T
Supply Ability :
500PCS/DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Type :
a-Si TFT-LCD
Panel Size :
12.1 inch
Resolution :
1024×768
Active Area :
245.76×184.32 mm
Outline :
260.5×203×10.9 mm
Frequency :
60Hz
Description

Normally Black 12.1 inch TCG121XGLPBPNN-AN40 TFT LCD Module Kyocera Active Area 245.76×184.32 mm

FAQ

Q1: What's price?

A1: We provide reasonable price and recommend suitable batteries to our customers.

Q2: What's delivery time?

A2: The delivery time is normally 1-3 working days after payment.

Q3: What's the payment?

A3: We accept T/T, Western Union, MoneyGram, Paypal

Q4: Can we visit your factory?

A4: Warmly welcome. Once we have your schedule, we will arrange

professional sales team to follow up your case.

Feedback:

(1) Your early confirmation will be highly appreciated after receiving the item.

(2) If you are satisfied with our item, pls contact to us also for other items, actually, we are not only own professional sourcing lines for AUO, LG, Samsung, Tianma, KOE, NEC, Hitachi, Optrex and more.

Here comes our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
F-55472GNBJ-LW-AGN Kyocera 2.8" 128×64
F-55472GNBJ-LW-ACN Kyocera 2.8" 128×64
F-55471GNFJ-SLW-AMN Kyocera 5.2" 240×64
F-55471GNBJ-LW-ANN Kyocera 5.2" 240×64
F-51553GNBJ-LW-AGN Kyocera 2.8" 128×64
F-51553GNBJ-LW-AFN Kyocera 2.8" 128×64
F-51553GNBJ-LW-AEN Kyocera 2.8" 128×64
F-51477GNF-SLY-ALN Kyocera 4.7" 320×240
F-51320GNY-LY-AFN Kyocera 2.8" 128×64
F-51405GNB-LW-ANN Kyocera 5.2" 240×64

Pls contact to us for more stock information: salespm@nselectronic.com.hk

TCG121XGLPBPNN-AN40 Basic Information

Panel Model TCG121XGLPBPNN-AN40
Panel Brand Kyocera
Descrition a-Si TFT-LCD ,12.1 inch, 1024×768
Panel Type a-Si TFT-LCD
Operating Temperature -30 ~ 80 °C
Storage Temperature -30 ~ 80 °C

TCG121XGLPBPNN-AN40 Mechanical Features

Dot Resolution 1024(RGB)×768 (XGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 105 PPI
Aspect Ratio 4:3 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.080×0.240 mm (H×V)
Pixel Pitch 0.240×0.240 mm (H×V)
Weight 555g
Surface Antiglare
Active Area 245.76×184.32 mm (H×V)
Bezel Area 249.0×187.5 mm (H×V)
Outline Dimension 260.5×203 mm (H×V)
Outline Depth 9.1/10.9 (Typ./Max.) mm
Holes & Brackets Side mounting holes (6-M3) on left, right bezel
Landscape or Portrait Landscape type
Touch Panel Without

TCG121XGLPBPNN-AN40 Optical Features

Display Mode AWV, Normally Black, Transmissive
Brightness 1200 cd/m² (Typ.)
Contrast Ratio 750 : 1 (Typ.) (Transmissive)
Display Color 262K/16.7M (6-bit / 6-bit + Hi-FRC)
Color Gamut 51% NTSC (CIE1931)
Response Time 18/12 (Typ.)(Tr/Td)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction Symmetry
White color Chromaticity Wx:0.320; Wy:0.345
Sunlight Readable Y
