5.0 inch industrial touch screen display 110.88×62.83 mm Outline 116×72.45 mm
5.0 inch industrial touch screen display 110.88×62.83 mm Outline 116×72.45 mm
5.0 inch industrial touch screen display 110.88×62.83 mm Outline 116×72.45 mm
5.0 inch industrial touch screen display 110.88×62.83 mm Outline 116×72.45 mm
Specifications
Brand Name :
HannStar
Model Number :
HSD050I9W1-C00-0299
Certification :
ISO9001
Place of Origin :
Japan，Korea
MOQ :
1 piece
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
100 PCS PER DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Brand :
HannStar
Panel Model :
HSD050I9W1-C00-0299
Panel Type :
a-Si TFT-LCD , CELL
Panel Size :
5.0 inch
Glass Depth :
0.50+0.50 mm
Transmissivity :
7.33% (Typ.)(with Polarizer)
Contrast Ratio :
500:1 (Typ.)
Display Colors :
16.7M (8-bit) , CIE1931 45%
Description

5.0 inch industrial touch screen display 110.88×62.83 mm Outline 116×72.45 mm

Why Choose US

1. Prompt reply within 12 hours.

2. Understand inquiry in any language.

3. Products with top quality.

4. Very competitive prices.

5. 13 years experience in intelligent controller R&D and manufacturing.

6. Strong R&D term supports perfect customized projects.

7. Supplier of famous brands: Sun Rain, Phnix, Chigo, Rechi, Microwell SRO etc.

8. Fabulous after-sale service.

Packing & Delivery for our LCD Screen Panel Replacements

1. Anti-static Bag Packing.

2. Anti-Shock Bubble Bag Packing

3. Foam and Hard Carton Packing

4. Picked up by forward and delivered by express services.

HannStar HSD050I9W1-C00-0299 General Features

Panel Brand : HannStar
Panel Model : HSD050I9W1-C00-0299
Panel Type : a-Si TFT-LCD , CELL
Panel Size : 5.0 inch
Resolution : 480(RGB)×272 , WQVGA
Display Mode : TN, Normally White, Transmissive
Active Area : 110.88×62.83 mm
Outline : 116×72.45 mm
Glass Depth : 0.50+0.50 mm
Transmissivity : 7.33% (Typ.)(with Polarizer)
Contrast Ratio : 500:1 (Typ.)
Display Colors : 16.7M (8-bit) , CIE1931 45%
Response Time : 10/15 (Typ.)(Tr/Td)
Viewing Angle : 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Signal Interface : Parallel RGB (1 ch, 8-bit) , 40 pins
Input Voltage : 3.3V (Typ.)

HannStar HSD050I9W1-C00-0299 Optical Features

Display Mode : TN, Normally White, Transmissive
Brightness : 0 cd/m²
Contrast Ratio : 500 : 1 (Typ.) (Transmissive)
Display Color : 16.7M (8-bit)
Color Gamut : 45% NTSC (CIE1931)
Response Time : 10/15 (Typ.)(Tr/Td)
Viewing Angle : 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 6 o'clock
Transmissivity : 7.33% (Typ.)(with Polarizer)

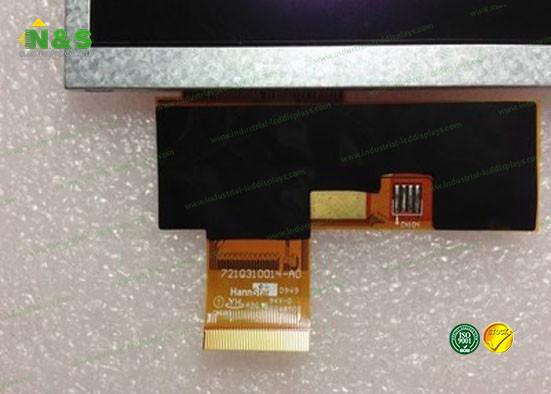

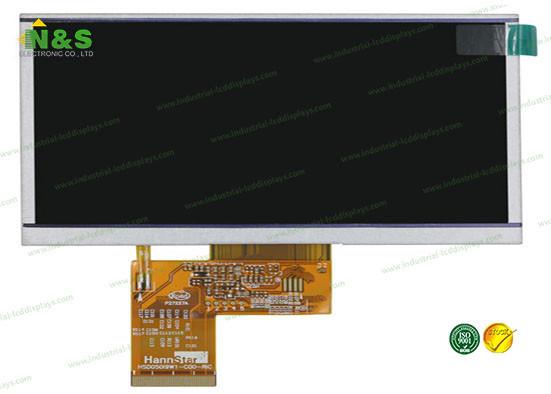

Details Pictures for Industrial LCD Displays 5.0 inch industrial touch screen display 110.88×62.83 mm Outline 116×72.45 mm

5.0 inch industrial touch screen display 110.88×62.83 mm Outline 116×72.45 mm
