High Resolution Innolux LCD Panel 8 Inch Normally Black For Handheld Devices
High Resolution Innolux LCD Panel 8 Inch Normally Black For Handheld Devices
High Resolution Innolux LCD Panel 8 Inch Normally Black For Handheld Devices
High Resolution Innolux LCD Panel 8 Inch Normally Black For Handheld Devices
Specifications
Brand Name :
Innolux
Model Number :
N080ICE-GB1 N080ICE-GB0
Certification :
ISO9001
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
500PCS/DAY
Delivery Time :
2-3 Working Days after order confirmation
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Size :
8.0 inch
Panel Type :
a-Si TFT-LCD , Panel
Surface :
Hard coating
Display Mode :
AAS, Normally Black, Transmissive
Response Time :
25 (Typ.)(Tr+Tf)
Frequency :
60Hz
Description

Innolux LCD Panel , 8.1inch N080ICE-GB1 N080ICE-GB0 High Brightness LCD Panel

The Feathers Of N080ICE-GB1 N080ICE-GB0 LCD industrial Screen Display as Bellow:

Panel Model : N080ICE-GB1 N080ICE-GB0
Panel Size : 8.0 inch 8.0 inch
Dot Resolution : 800(RGB)×1280 (WXGA) 800(RGB)×1280 (WXGA)
Pixel Configuration : RGB Vertical Stripe RGB Vertical Stripe
Pixel Density : 188 PPI 188 PPI
Aspect Ratio : 10:16 (H:V) 10:16 (H:V)
Form Factor : Flat Rectangle Display Flat Rectangle Display
Dot Pitch : 0.04485×0.13455 mm (H×V) 0.04485×0.13455 mm (H×V)
Pixel Pitch : 0.13455×0.13455 mm (H×V) 0.13455×0.13455 mm (H×V)
Weight : 99g (Max.)
Surface : Hard coating (3H), Antireflection Glare (Haze 0%), Hard coating
Active Area : 107.64×172.224 mm (H×V) 107.64×172.224 mm (H×V)
Outline Dimension : 120.65×187.64 mm (H×V) 114.6×184.1 mm (H×V)
Outline Depth : 2.9/5.1 (Typ./Max.) mm 2.2/3.85 (Max.) mm
Holes & Brackets : Without Without
Landscape or Portrait : Portrait type Portrait type
Touch Panel : Without Without
Display Mode : AAS, Normally Black, Transmissive AAS, Normally Black, Transmissive
Brightness : 350 cd/m² (Typ.) 400 cd/m² (Typ.)
Contrast Ratio : 800 : 1 (Typ.) (Transmissive) 1000 : 1 (Typ.) (Transmissive)
Display Color : 16.7M (8-bit) 16.7M (8-bit)
Color Gamut : 60% NTSC (CIE1931) 60% NTSC (CIE1931)
Response Time : 25 (Typ.)(Tr+Tf) 25 (Typ.)(Tr+Td)
Viewing Angle : 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) 80/80/80/80 (Min.)(CR≥10) (L/R/U/D)
Viewing Direction : Symmetry Symmetry
White color Chromaticity : Wx:0.313; Wy:0.329 Wx:0.313; Wy:0.329
White Variation : 1.25/1.49 (Max.)(5/13 points) 1.25/1.49 (Max.)(9/13 points)


Why Choose N&S?

1) Enough industrail experience and involved main markets all over the world.
2) Dedicated and professional sales team will offer you 24 hours online and immediate service.
3) Precise and advanced equipments.
4) High quality and sensitivity.
5) Many kinds of products with all size.

What can we do for you:

Our LCD Panel inventory lines mostly covered small size from

1.5",2.0",2.2",2.5",3.0",3.5",4.0",4.2",4.3",4.7",5.0",5.5",5.7",6.0",6.4",7.0",8.0",10.1",10.4",12.1" etc.

What is the lead time of the products?

Samples in stock will be sent within 3 days after payment.

Payment methods?

T/T and Western union etc. The details of our payment terms is showing above.

How long is the warranty period?

Usually 1 Year without damaged by people actions. It depends on different products.

What is the products application?

Widely used in instrument, handheld devices, industrial control, medical, automotive, smart home and other fields.

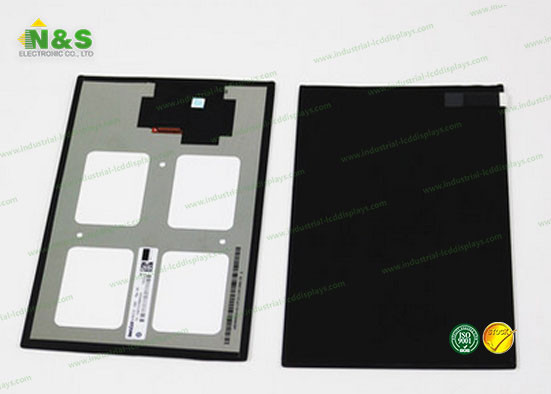

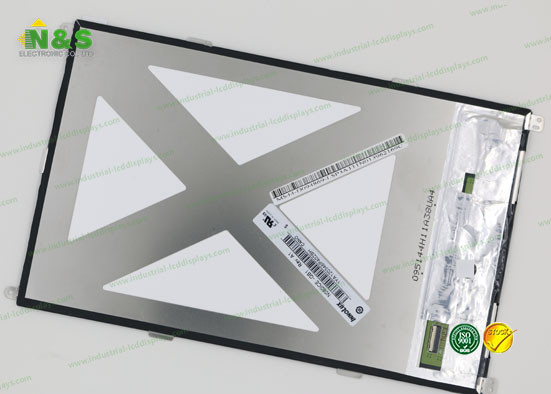

Details Pictures for the N080ICE-GB1 N080ICE-GB0 Screen Display Panel:

High Resolution Innolux LCD Panel 8 Inch Normally Black For Handheld Devices

High Resolution Innolux LCD Panel 8 Inch Normally Black For Handheld Devices

Details Pictures About The Package:

High Resolution Innolux LCD Panel 8 Inch Normally Black For Handheld Devices
