Open Frame 6.0 Inch Industrial LCD Displays ED060SC7 With PPI Pixel Density
Open Frame 6.0 Inch Industrial LCD Displays ED060SC7 With PPI Pixel Density
Open Frame 6.0 Inch Industrial LCD Displays ED060SC7 With PPI Pixel Density
Open Frame 6.0 Inch Industrial LCD Displays ED060SC7 With PPI Pixel Density
Open Frame 6.0 Inch Industrial LCD Displays ED060SC7 With PPI Pixel Density
Open Frame 6.0 Inch Industrial LCD Displays ED060SC7 With PPI Pixel Density
Specifications
Brand Name :
PVI
Model Number :
ED060SC7
Certification :
ISO9001
Place of Origin :
Taiwan / Korea
MOQ :
1 Piece
Payment Terms :
T/T, Paypal, Wesntern Union , MoneyGram
Supply Ability :
100 PCS PER DAY
Delivery Time :
2-3 Working Days After Order Confirmation
Panel Type :
EPD , EPD
Panel Size :
6.0 inch
Resolution :
600×800 , SVGA
Active Area :
90.6×122.4 mm
Display Colors :
Grayscale (4-bit)
Display Mode :
TN, Normally White, Transmissive
Description

Open Frame 6.0 Inch Industrial LCD Displays ED060SC7 With PPI Pixel Density

Industrial Flat Panel Monitor Electrical and Display Specifications:

Basic Info:

<

Panel Brand : PVI
Panel Model : ED060SC7
Panel Type : EPD , EPD
Panel Size : 6.0 inch
Resolution : 600×800 , SVGA
Active Area : 90.6×122.4 mm
Outline : 101.8×138.4 mm
Surface : Antiglare, Hard coating
Contrast Ratio : 12:1 (Typ.)(Reflective)
Display Colors : Grayscale (4-bit)
Frequency : 85Hz
Signal Interface : Parallel Data (8-bit) , 34 pins
Input Voltage : 3.3V (Typ.)(VDD)

Details Specifications for ED060SC7 Inch LCD Monitor:

<

Panel Model : ED060SC7
Display Mode : Reflective
Contrast Ratio : 12:1 (Typ.) (Reflective)
Display Color : Grayscale (4-bit)
Reflectance Ratio : 40% (Typ.)
Sunlight Readable : Sunlight Readable
Vertical Frequency : 85Hz
Reverse Scan : No
Total Power Consumption : 547/1131mW (Typ./Max.)
Time Controller (T-CON) : Need external T-CON

Our Service for you:

As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:

  1. Provide excellent LCD screen replacements with competitive price.
  2. Safe, quick and efficient supply chain.
  3. Plenty of stocks. Branded ones include LCD Screen panels for LG, Samsung, Sharp, BOE, Chimei and so on.
  4. Your problems will be replied within 24 hours.

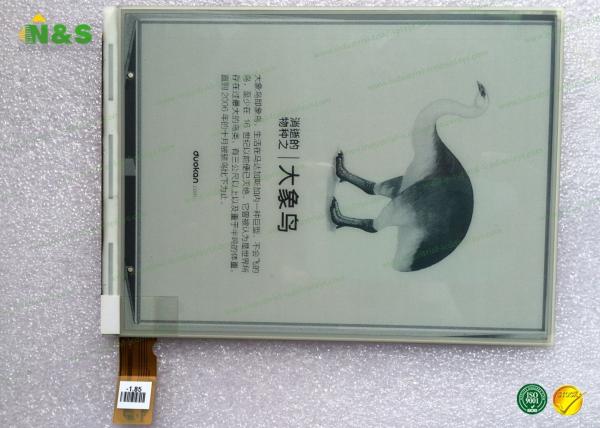

Details Picture for ED060SC7 LCD Monitor:

Open Frame 6.0 Inch Industrial LCD Displays ED060SC7 With PPI Pixel DensityOpen Frame 6.0 Inch Industrial LCD Displays ED060SC7 With PPI Pixel DensityOpen Frame 6.0 Inch Industrial LCD Displays ED060SC7 With PPI Pixel Density
