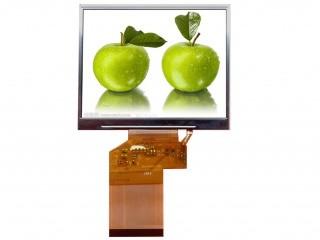

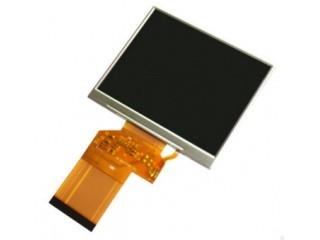

3.5 Inch Digital Video Camera TFT LCD Panel LQ035NC111 Without Touch Screen
3.5 Inch Digital Video Camera TFT LCD Panel LQ035NC111 Without Touch Screen
3.5 Inch Digital Video Camera TFT LCD Panel LQ035NC111 Without Touch Screen
3.5 Inch Digital Video Camera TFT LCD Panel LQ035NC111 Without Touch Screen
Specifications
Brand Name :
Innolux
Model Number :
LQ035NC111
Certification :
ISO9001
MOQ :
1PCS
Payment Terms :
T/T, Western Union,Escrow 10(we pay hkinventory escrow fee) ,Paypal
Supply Ability :
800PCS
Delivery Time :
1-2days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box
Size :
3.5 Inch
Resolution :
320×240
Brightness :
300
C/R :
400:1
View Angle :
60/60/50/55
Colors :
16.7M
Operating Temperature :
-20 ~ 70 °C
Storage Temperature :
-30 ~ 80 °C
Power Supply :
3.3V (Typ.)
Operating Mode :
TN, Normally White, Transmissive
Light Source :
WLED [6S1P] , 10K hours , W/O Driver
Description

1.LQ035NC111 Mechanical Features:

Panel Size : 3.5 inch
Pixel Features : Resolution Pixel Arrangement Dot Pitch (W×H) Pixel Pitch (W×H)
320(RGB)×240, QVGA RGB Vertical Stripe 0.073×0.219 mm 0.219×0.219 mm [115PPI]
Mechanical Size : Active Area (W×H) Bezel Area (W×H) Outline Dimension (W×H) Outline Depth
70.08×52.56 mm 73.03×55.50 mm 76.9×63.9 mm 3.26±0.2 mm
Outline Features : Form Style Aspect Ratio Orientation Shape Style
Flat Rectangle 4:3 (W : H) Landscape type -
Other Features : Panel Cover Weight Surface
- 30.0g (Typ.)

Antiglare (Haze 20%)

2.LQ035NC111 Optical Features:

Basic Information : Brightness Operating Mode Contrast Ratio
300 cd/m² (Typ.) TN, Normally White, Transmissive 400:1 (Typ.) (Transmissive)
Viewing Angle(L/R/U/D) Viewing Direction Response Speed
60/60/50/55 (Typ.)(CR≥10) 6 o'clock 10/15 (Typ.)(Tr/Td) (ms)
Dispaly Color : Color Temperature Color Amount White color Chromaticity
6638K

16.7M (8-bit)

 X:0.310; Y:0.330

3.LQ035NC111 Interface Features:

Signal Electrical : Current Input Voltage Input Consumption
8.6/15mA (Typ./Max.) 3.3V (Typ.) -
Voltage for Display Signals : 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC
Interface Features : Position Type Interface
- FPC Digital RGB (8/24-bit) + SPI, CCIR601/656
Signal Interface : Brand Model Amount Pin Pitch Pins Pin Assignment
1 pcs 0.5 mm 54 pins

4.LQ035NC111 Backlight Features:

Backlight Features: Type Position Shape Amount Life(Hours) Replacement
WLED Edge light type 1 string 6S1P 10K(Min.) -
WLED Electrical : Current Input Voltage Input Consumption
20mA (Typ.) 17.4/19.8/21V (Min./Typ./Max.) 400/420mW (Typ./Max.)
Interface Features : Position Type WLED Driver
- Included in panel signal interface No

5.FAQ:

Q1:What's the quality of your LCD Panel?

A:Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc. We are available to meet your different requirements.

Q2:What is your return and refund policy?

A:We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.

Q3:How long is the lead time?

A:The lead time is about 2-3 working days after receipt of payment.

Q4:Do you accept sample order?

A:Yes,sample order is welcome.

Q5:How can I get the quotation?

A:Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
