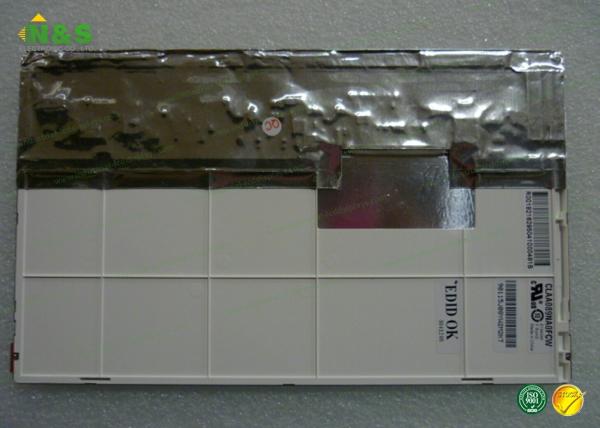

Landscape type Antiglare / Hard coating Industrial LCD Displays CPT CLAA089NA0FCW
Landscape type Antiglare / Hard coating Industrial LCD Displays CPT CLAA089NA0FCW
Landscape type Antiglare / Hard coating Industrial LCD Displays CPT CLAA089NA0FCW
Landscape type Antiglare / Hard coating Industrial LCD Displays CPT CLAA089NA0FCW
Specifications
Brand Name :
CPT
Model Number :
CLAA089NA0FCW
Certification :
ISO9001
Place of Origin :
Japan,Korea
MOQ :
1 piece
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
100 PCS PER DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Display Colors :
262K (6-bit)
Display Mode :
TN, Normally White, Transmissive
Response Time :
20 (Typ.)(Tr+Td)
Pixel Density :
133 PPI
Outline Dimension :
210×127.8 mm (H×V)
Pixel Pitch :
0.1905×0.1905 mm (H×V)
Description

Provide Landscape type,Antiglare and Hard coating CPT CLAA089NA0FCW with 1024(RGB)×600 , WSVGA Resolution of 262K (6-bit)

Product Features:
Model: CLAA089NA0FCW
Specifications Panel Brand : CPT
Panel Model : CLAA089NA0FCW
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 8.9 inch
Resolution : 1024(RGB)×600 , WSVGA
Display Mode : TN, Normally White, Transmissive
Active Area : 195.072×114.3 mm
Outline : 210×127.8×5.5 mm
Surface : Antiglare, Hard coating (3H)
Brightness : 300 cd/m² (Typ.)
Contrast Ratio : 500:1 (Typ.)
Display Colors : 262K (6-bit)
Response Time : 20 (Typ.)(Tr+Td)
Viewing Angle : 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)

1. Samples charge:

According to the model. Pls contact us to get details.

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
CLAG045LJ72 CPT 4.5" 480×854
CLAN050WD61 6XM CPT 5.0" 720×1280
CLAD015GC41 AX CPT 1.5" 240×240
CLAA090WK05XN CPT 9.0" 1280×720
CLAC080XA12LW CPT 8.0" 1024×768
CLAD015GB01 AX CPT 1.5" 240×240
CLAG045LG71 XX CPT 4.5" 480×854

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

2. Samples time:

1 day forstock models

Packing: Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Shipping: Delivery will be arranged in 1-3 working days once received payment, and will use third parties delivery services or delivered as you request.

Guarantee:

(1) All items will be strictly tested and shipped with safe & professional package.

(2) We have 12 months warranty for each LCD screen panel, depend on the different LCD panel models.

(3) We will do our best to solve any possible problems for your after sale sevice. Please contact with us if any problems.

Specifications:

Panel Size :

8.9 inch

Dot Resolution :

1024(RGB)×600 (WSVGA)

Pixel Configuration :

RGB Vertical Stripe

Pixel Density :

133 PPI

Aspect Ratio :

17:10 (H:V)

Form Factor :

Flat Rectangle Display

Dot Pitch :

0.0635×0.1905 mm (H×V)

Pixel Pitch :

0.1905×0.1905 mm (H×V)

Weight :

190g (Typ.)

Surface :

Antiglare, Hard coating (3H)

Active Area :

195.072×114.3 mm (H×V)

Bezel Area :

198.5×117.7 mm (H×V)

Outline Dimension :

210×127.8 mm (H×V)

Outline Depth :

5.2±0.3 mm

Our Promise for our LCD Panels:

You will get reply within 24 Hours and:

ŒŒ1 Year warranty

Œ1 Day shipping

‹0 Return
