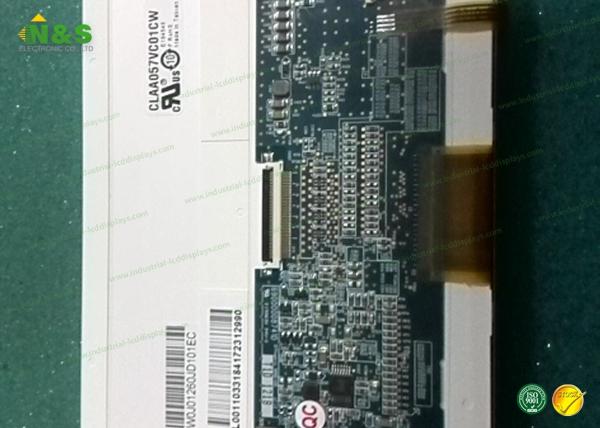

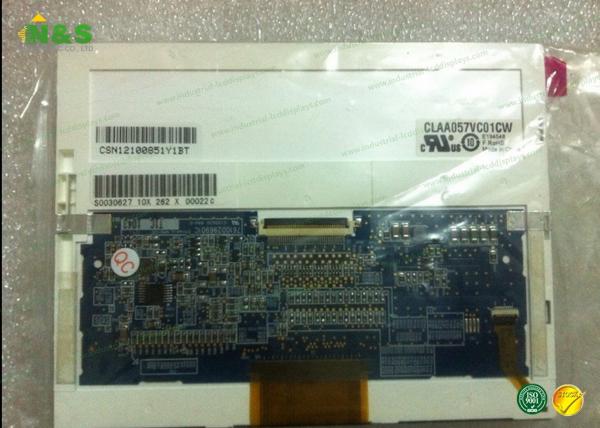

CLAA057VC01CW Industrial LCD Displays / 262K tft lcd display module CIE1931
CLAA057VC01CW Industrial LCD Displays / 262K tft lcd display module CIE1931
CLAA057VC01CW Industrial LCD Displays / 262K tft lcd display module CIE1931
CLAA057VC01CW Industrial LCD Displays / 262K tft lcd display module CIE1931
CLAA057VC01CW Industrial LCD Displays / 262K tft lcd display module CIE1931
CLAA057VC01CW Industrial LCD Displays / 262K tft lcd display module CIE1931
Specifications
Brand Name :
CPT LCD Displays
Model Number :
CLAA057VC01CW
Certification :
ISO9001
Place of Origin :
Taiwan
MOQ :
1 Piece
Payment Terms :
T/T, Paypal, Western Union, MoneyGram
Supply Ability :
100 PCS PER DAY
Delivery Time :
2-3 Working Days after Order Confirmation
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Size :
5.7 inch
Pixel Density :
139 PPI
Outline Dimension :
127×100 mm (H×V)
Dot Resolution :
640(RGB)×480 (VGA)
Brightness :
220 cd/m² (Typ.)
Display Colors :
262K (6-bit) , CIE1931 50%
Resolution :
640(RGB)×480 , VGA
Panel Model :
CLAA057VC01CW
Description

CLAA057VC01CW Industrial LCD Displays / 262K tft lcd display module CIE1931

Application for the TFT LCD Display:

- Workstation & desktop monitors

- Display terminals for AV application products

- Monitors for industrial machine

- Industrial control system

- Indoor/ outdoor kiosks

- Automobile DVD navigation

- Advertisement machine

- Medical and healthcare kiosks

- ATM/ POS/ Arcade gaming/ kiosks/ GPS/ Gas station/ Self service thermal

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
CLAG045LJ72 CPT 4.5" 480×854
CLAN050WD61 6XM CPT 5.0" 720×1280
CLAD015GC41 AX CPT 1.5" 240×240
CLAA090WK05XN CPT 9.0" 1280×720
CLAC080XA12LW CPT 8.0" 1024×768
CLAD015GB01 AX CPT 1.5" 240×240

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

CPT CLAA057VC01CW Electronics Feature

Reverse Scan : Yes (U/D, L/R)
Total Power Consumption : 1.4W (Typ.)
Time Controller (T-CON) : Embedded T-CON

Industrial Flat Panel Monitor FEATURES:

Easy to mount open frame, metal chassis (top & bottom flanges or side flanges). Optional metal bezel ready for panel mounting with option for NEMA rated applications. User controls: Brightness, contrast, auto set up, etc.

User service controls accessed in rear standard. Different models for different input signals: VGA/SVGA and NTSC or PAL Input power flexibility: Standard +12 vdc at 2.0 Amps, other DC voltages or auto ranging AC power input from 100-240 VAC @ 47 to 63 Hz

Standard model has anti-reflective polycarbonate protective Options: Resistive touch screens with RS232 or USB interface for Windows and other operating systems.

CPT CLAA057VC01CW Signal Interface

Signal Category : TTL
Signal Class : TTL (1 ch, 6-bit)
Input Voltage for Panel : 3.3V (Typ.)
Input Current for Panel : 95/115mA (Typ./Max.)
Voltage for Display Signals : 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC
Interface Type : Connector
Signal Interface : Brand Model Pin Pitch Pins Amount Configuration
STARCONN 089N40-000R00-G2 0.5 mm 40 pins 1 pcs DRGB-40P1C6B-220B
